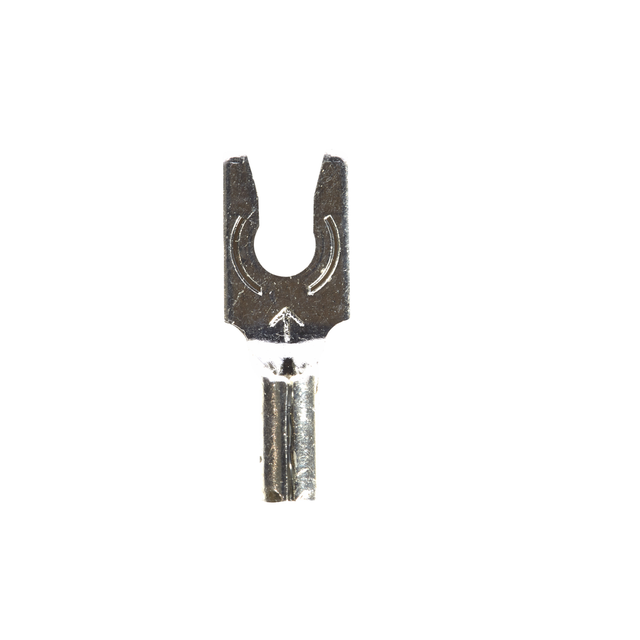

3M™ Scotchlok™ Locking Fork, Non-Insulated Butted Seam MU18-10FLK, Stud Size 10, 1000/Case - 7100163977

Sold As: 1000-Pack
SKU: 7100163977
MPN: 7100163977
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007013501
3M ID: 80610039895
5 Digit UPC: 1350
$185.04 ($0.19 / Count)
Hurry up! Current stock:

Product Description

Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Packaging1000 per bulk box
Barrel Inside Diameter0.07 Inch
Maximum Conductor Size (Metric).0823 mm²
Barrel StyleButted
Maximum Conductor Size (Imperial)18 AWG
Stud Diameter (Metric) UOMmm
Stud Diameter (Metric)4.826
Terminal TypeFork
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
Stud Size#10
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL File NumberE23438
Stud Diameter (Imperial)0.19
Insulation MaterialNon-insulated
Dimension E0.5 Inch
Fork TypeLocking
Minimum Conductor Size (Metric)0.326 mm²
Minimum Conductor Size (Imperial)22 AWG
Clearance (C)0.25 Inch
Units per Case1000.0
Stud Diameter (Imperial) UOMin
Overall Width (Imperial)0.32
Maximum Lock Width0.35 Inch
Terminal StyleLocking
Overall Length (Imperial)0.68
Barrel Length (Imperial)0.25 Inch
