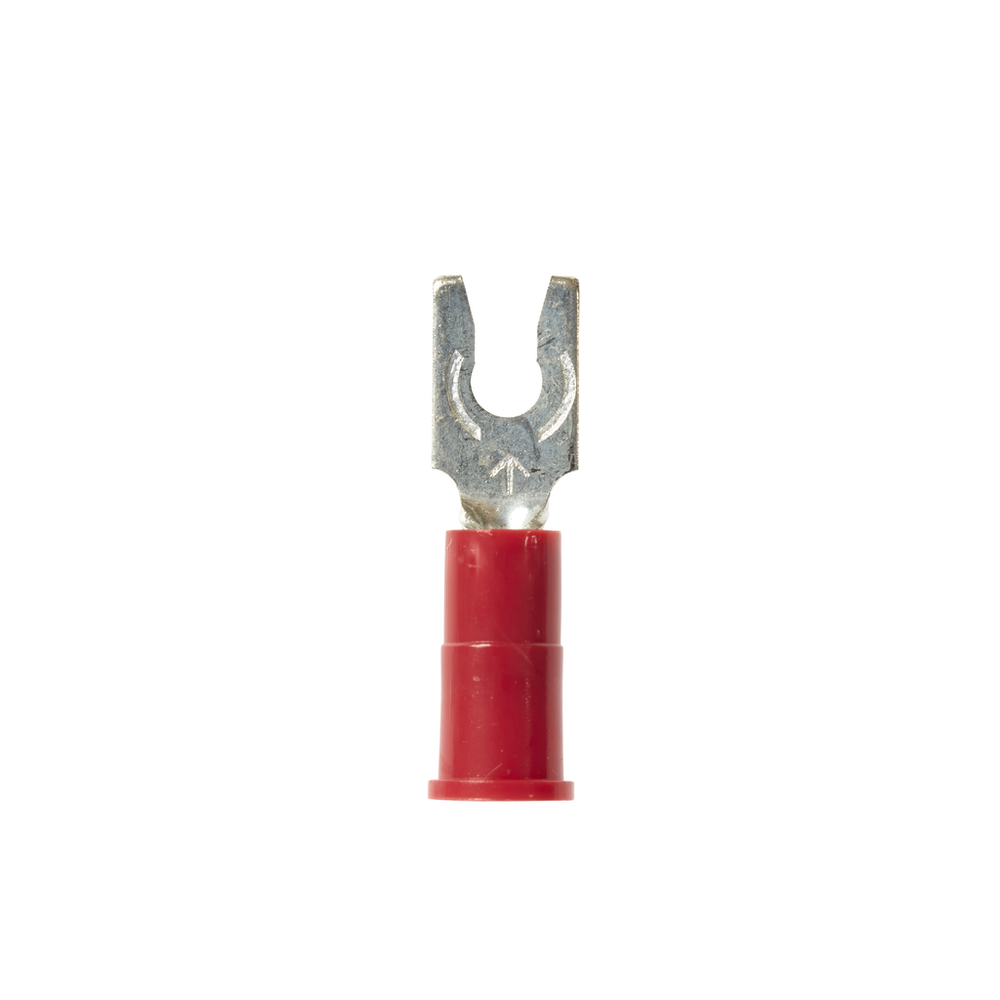

3M™ Scotchlok™ Locking Fork, Vinyl Insulated Butted Seam MVU18-4FLK, Stud Size 4, 1000/Case - 7100163982

Sold As: 1000-Pack
SKU: 7100163982
MPN: 7100163982
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007013594
3M ID: 80610040026
5 Digit UPC: 1359
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Spring-like tongue firmly fits around the stud
  • Electrolytic copper construction offers good conductivity
  • 600V-rated for building wire and 1000V-rated for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Barrel Inside Diameter0.07 Inch
Insulation MaterialVinyl
Terminal TypeFork
Packaging1000 per bulk box
Stud Size#4
Overall Length (Imperial) UOMin
Stud Diameter (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Terminal StyleLocking
Overall Width (Imperial)0.25
Minimum Conductor Size (Imperial)22 AWG
UL File NumberE23438
Clearance (C)0.25 Inch
Units per Case1000.0
Stud Diameter (Imperial) UOMin
Overall Length (Imperial)0.88
Minimum Conductor Size (Metric)0.326 mm²
Operating Temperature Range (Celsius)-40 °C to 105 °C
Stud Diameter (Metric)2.845
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Fahrenheit)221.0
Fork TypeLocking
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Fahrenheit) UOMDegree
Stud Diameter (Imperial)0.112
Maximum Insulation Outer Diameter (Imperial) UOMin
Operating Temperature Range (Fahrenheit)-40 °F to 221 °F
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Dimension E0.7 Inch
Overall Width (Imperial) UOMin
Barrel StyleButted
Maximum Conductor Size (Metric).0823 mm²
Maximum Conductor Size (Imperial)18 AWG
Maximum Insulation Outer Diameter (Imperial)0.145
Maximum Lock Width0.27 Inch
