3M™ Scotchlok™ Piggy-back Disconnect Male Female Nylon Insulated, 100/bottle, MNG14-250DMFX-A, 500/Case - 7100165279

Sold As: 500-Pack
SKU: 7100165279
MPN: 7100165279
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128588734
3M ID: 80611465198
5 Digit UPC: 58873
$576.90 ($1.15 / Count)
Hurry up! Current stock:

Product Description

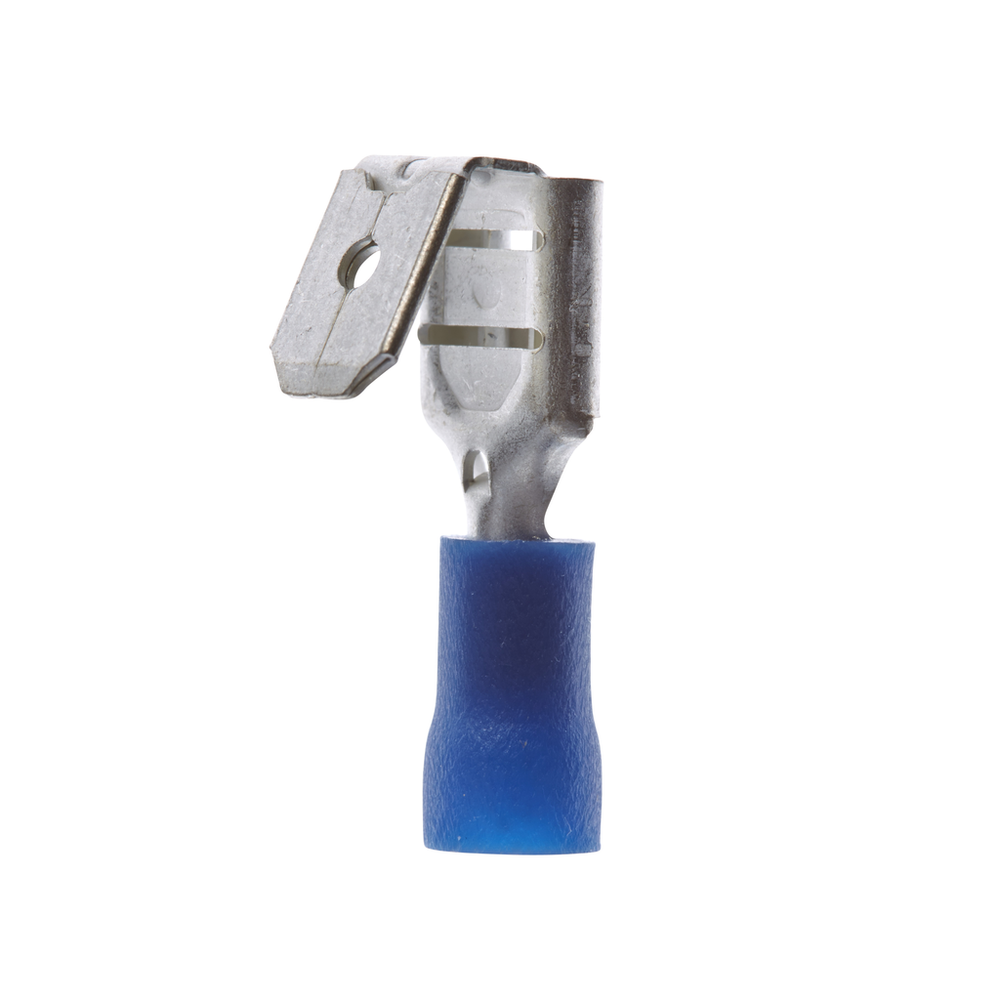

3M™ Scotchlok™ Nylon Insulated with Insulation Grip Piggy-Back Disconnect terminal has a tongue portion with fingers that grip a male quick-slide and a tongue extension that is to be gripped by a female quick-slide. This is a multi-stack disconnect terminal with a nylon-insulated, butted-seam barrel. It has durable brass construction for good conductivity and a tin-plated finish for corrosion resistance.

Features

  • Connects a male or female counterpart
  • Nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Mates with 0.25-in wide male and female tab
  • The tongue portion with fingers grip a male quick-slide and a tongue extension grips a female quick-slide
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Accommodates wire sizes 16 to 14 AWG

Downloads

Specifications

Country of OriginTaiwan
Connection Width (Metric) UOMmm
Connection Width (Imperial) UOMin
Mates with Male Tab Width (W')0.250 Inch
Terminal TypeDisconnect
Terminal StylePiggy-back
Maximum Conductor Size (Metric)2.5 mm²
Disconnect TypeFemale|Male
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Insulation Outer Diameter (Imperial) UOMin
Connection Width (Metric)6.35
Minimum Conductor Size (Metric)1.5 mm²
Tab Width0.250
Barrel Inside Diameter0.09 Inch
Minimum Conductor Size (Imperial)16 AWG
Overall Length (Imperial) UOMin
Packaging100 per bottle
Insulation MaterialNylon
Mates with Female Width0.250 Inch
Connection Width (Imperial)0.25
Barrel Length (Imperial)0.23 Inch
Fastener OrientationMale-Female
Maximum Insulation Outer Diameter (Imperial)0.19
Barrel StyleInsulation Grip
Pad Width0.25
Units per Case500.0
Maximum Conductor Size (Imperial)14 AWG
Overall Length (Imperial)0.91
