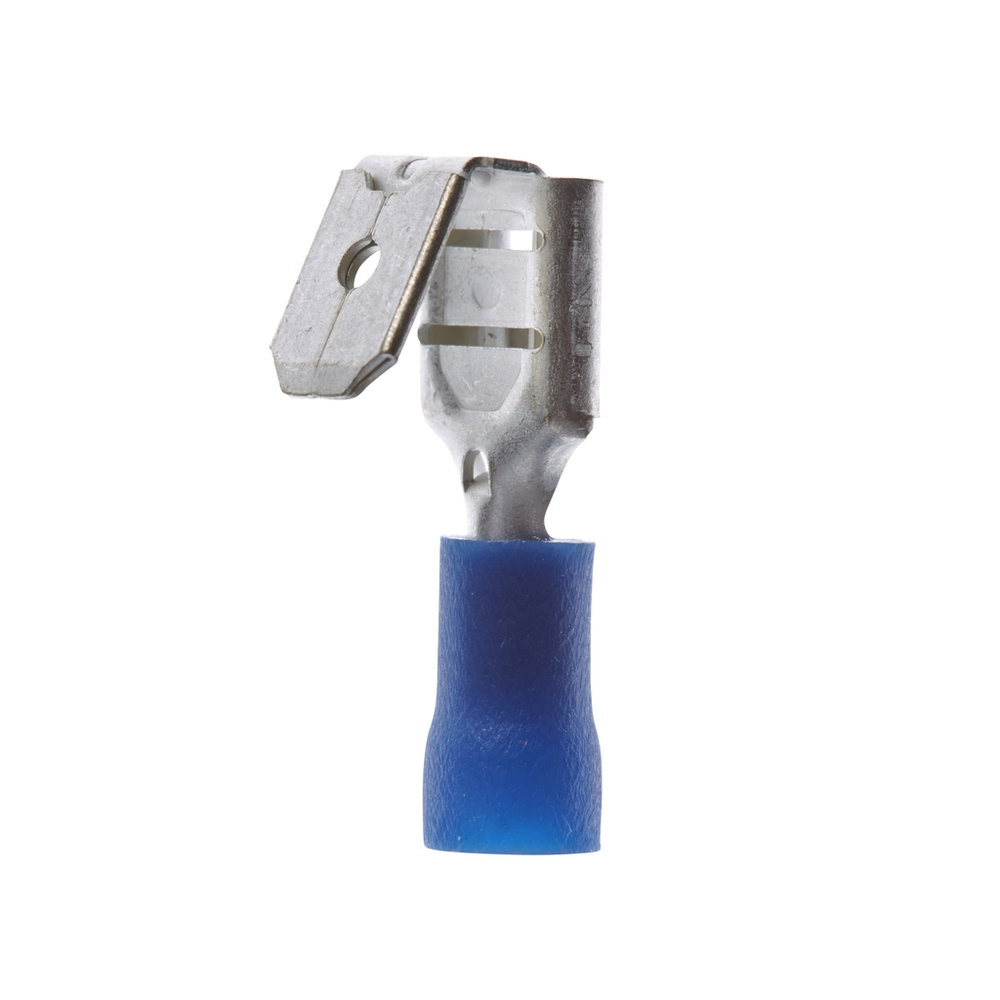

3M™ Scotchlok™ Piggy-back Disconnect Male Female Vinyl Insulated, 100/bottle, MVU14-250DMFX-A, 500/Case - 7100165278

Sold As: 100-Pack
SKU: 7100165278
MPN: 7100165278
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128588727
3M ID: 80611465180
5 Digit UPC: 58872
$79.41 ($0.79 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Color-Coded Male-Female Disconnect Terminal has a tongue portion with fingers that grip a male quick-slide and a tongue extension that is to be gripped by a female quick-slide. This is a multi-stack disconnect terminal with a vinyl-insulated, butted-seam barrel. It has durable brass construction for good conductivity and a tin-plated finish for corrosion resistance.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • The tongue portion with fingers grip a male quick-slide and a tongue extension grips a female quick-slide
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Allows for quick and easy disconnect of wires
  • Accommodates wire sizes 22 to 18 AWG
  • Mates with 0.25-in wide male and female tab

Downloads

Specifications

Country of OriginTaiwan
Barrel Inside Diameter0.090 Inch
Maximum Conductor Size (Imperial)14 AWG
Barrel StyleButted
Connection Width (Imperial)0.25
Barrel Length (Imperial)0.23 Inch
Terminal TypeDisconnect
Maximum Insulation Outer Diameter (Imperial) UOMin
Mates with Male Tab Width (W')0.250 Inch
Maximum Conductor Size (Metric)2.5 mm²
Terminal StylePiggy-back
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Minimum Conductor Size (Imperial)16 AWG
Packaging100 per bottle
Disconnect TypeFemale|Male
Maximum Insulation Outer Diameter (Imperial)0.17
Insulation MaterialVinyl
Overall Length (Imperial) UOMin
Units per Case500.0
Tab Width0.250
Minimum Conductor Size (Metric)1.5 mm²
Mates with Female Width0.250 Inch
Connection Width (Metric)6.35
Connection Width (Metric) UOMmm
Fastener OrientationMale-Female
Connection Width (Imperial) UOMin
Solution forWireless Network: Infrastructure Accessories
Overall Length (Imperial)0.87
Pad Width0.25
