3M Products & Supplies

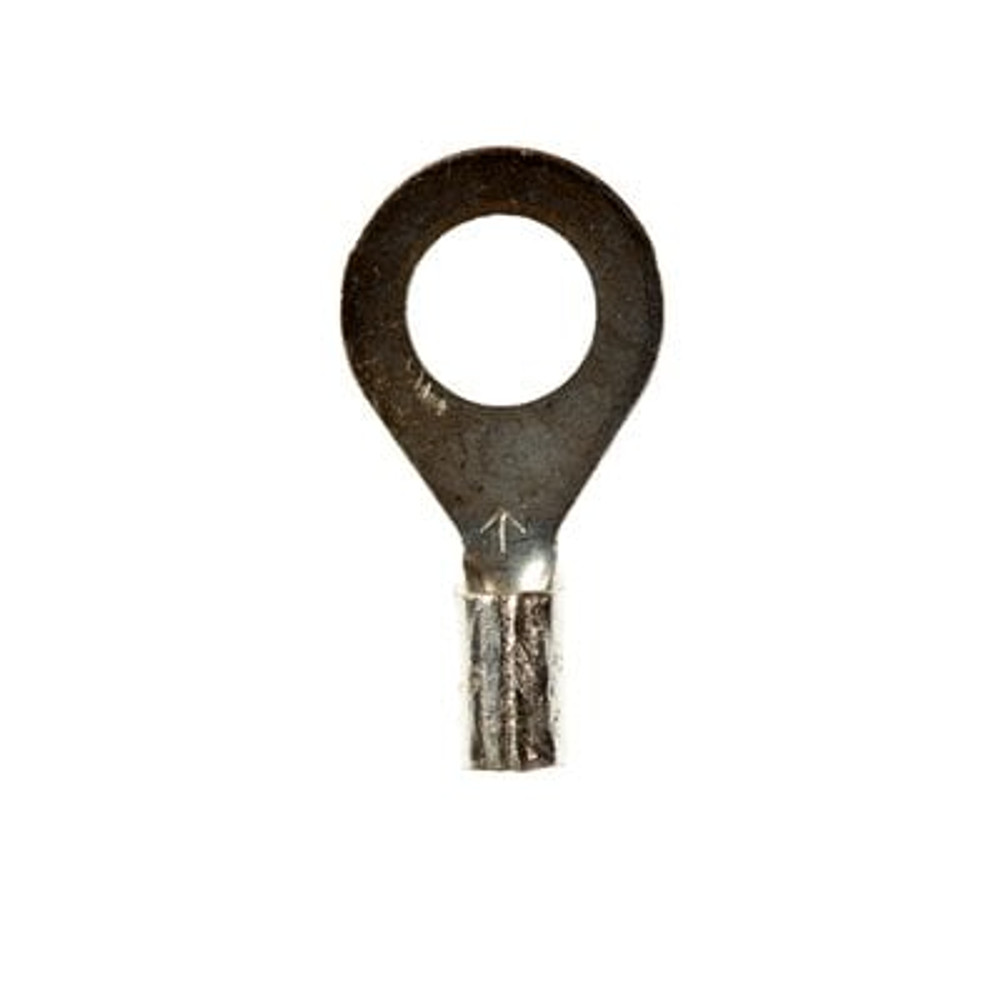

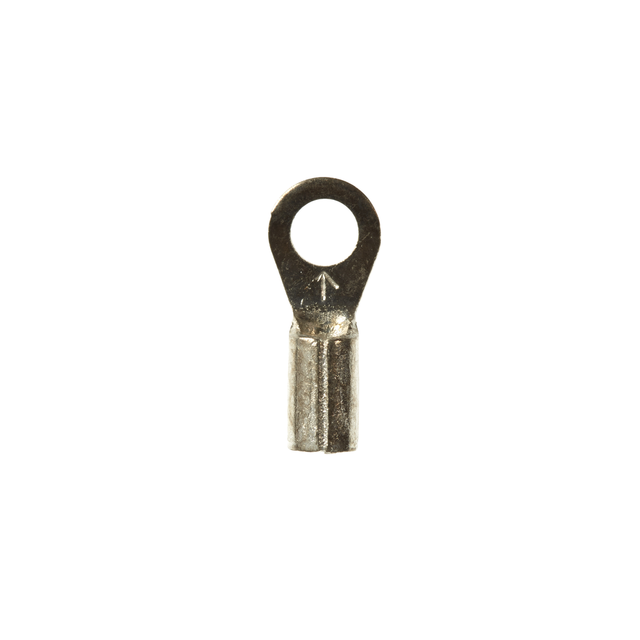

3M™ Scotchlok™ Ring Non-Insulated, 100/bottle, M14-14R/SX, standard-style ring tongue fits around the stud, 500/Case - 7100165233

Sold As: 500-Pack
SKU: 7100165233
MPN: 7100165233
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128586600
3M ID: 80611458052
5 Digit UPC: 58660
$337.12 ($0.67 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Standard-style ring tongue fits around the stud
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States
Terminal StyleStandard
Connection Width (Imperial) UOMin
Overall Width (Imperial)0.47
Connection Width (Metric) UOMmm
Minimum Conductor Size (Imperial)16 AWG
Maximum Conductor Size (Metric)2.08
Connection Width (Imperial)0.25
Maximum Operating Temperature (Celsius)175.0
Overall Length (Imperial)0.89
UL File NumberE23438
Connection Width (Metric)6.35
Ring TypeStandard
Barrel StyleBrazed
Barrel Length (Imperial)0.25 Inch
Connection TypeCrimp
Terminal TypeRing
Minimum Conductor Size (Metric)1.31 mm²
Maximum Conductor Size (Imperial)14 AWG
Insulation MaterialNon-insulated
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMin
Overall Width (Imperial) UOMin
