3M Products & Supplies

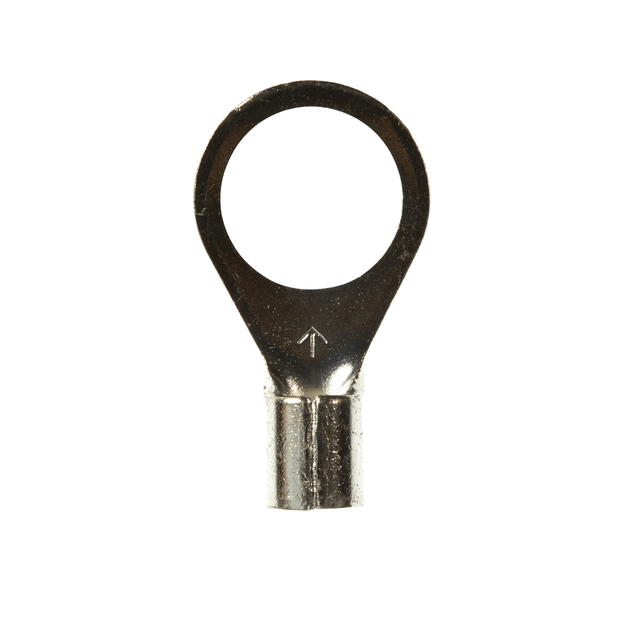

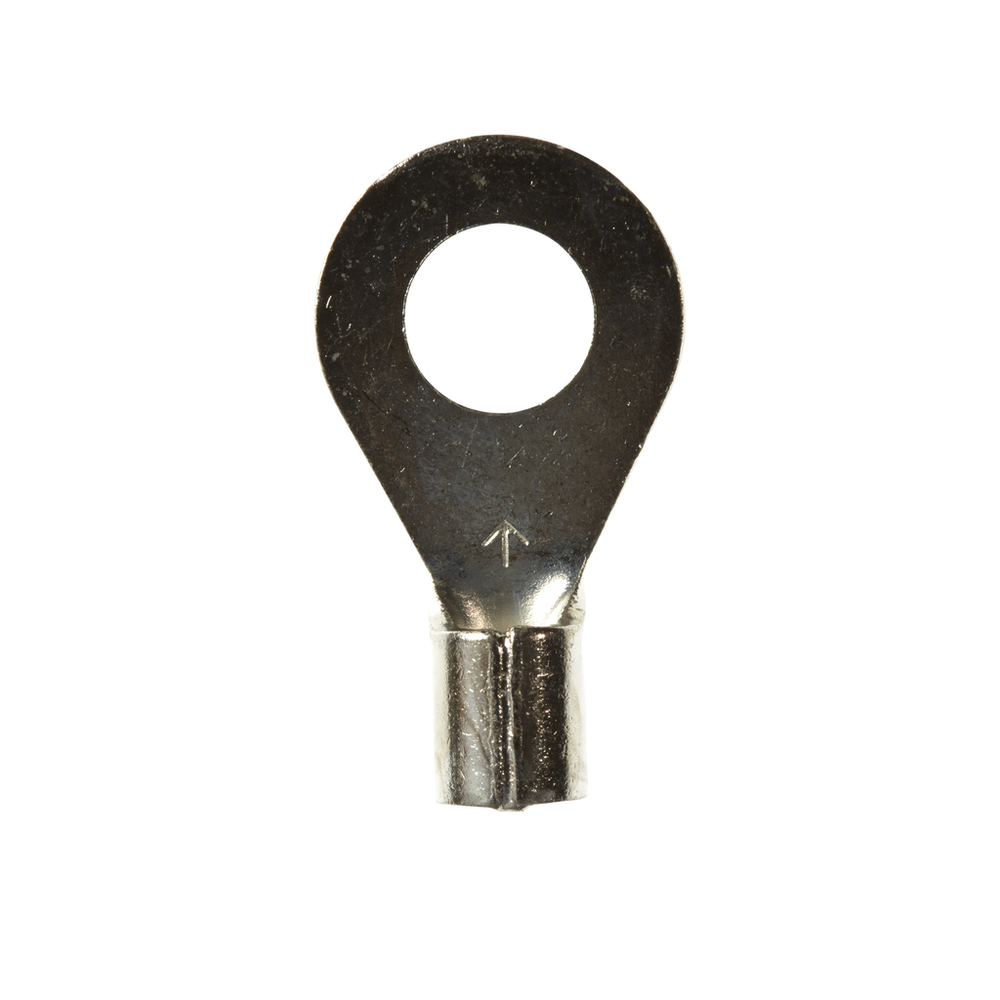

3M™ Scotchlok™ Ring Non-Insulated, 50/bottle, M10-14R/SX, standard-style ring tongue fits around the stud, 500/Case - 7010320647

Sold As: 50-Pack
SKU: 7010320647
MPN: 7010320647
Stock Item: Stock items typically ship within 2-3 business days
UPC: 10051128586836
3M ID: 80611458284
5 Digit UPC: 58683
$39.71 ($0.79 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

Downloads

Specifications

Country of OriginUnited States
Overall Width (Imperial)0.54
Minimum Conductor Size (Imperial)12 AWG
Ring TypeStandard
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Metric)6.35
Terminal StyleStandard
Overall Length (Imperial)0.96
Maximum Conductor Size (Metric)5.26
Maximum Operating Temperature (Celsius)175.0
UL File NumberE23438
Insulation MaterialNon-insulated
Barrel Length (Imperial)0.25 Inch
Connection Width (Imperial)0.25
Connection TypeCrimp
Overall Width (Imperial) UOMin
Connection Width (Imperial) UOMin
Maximum Conductor Size (Imperial)10 AWG
Barrel StyleBrazed
Overall Length (Imperial) UOMin
Connection Width (Metric) UOMmm
Minimum Conductor Size (Metric)3.31 mm²
Terminal TypeRing
