3M Products & Supplies

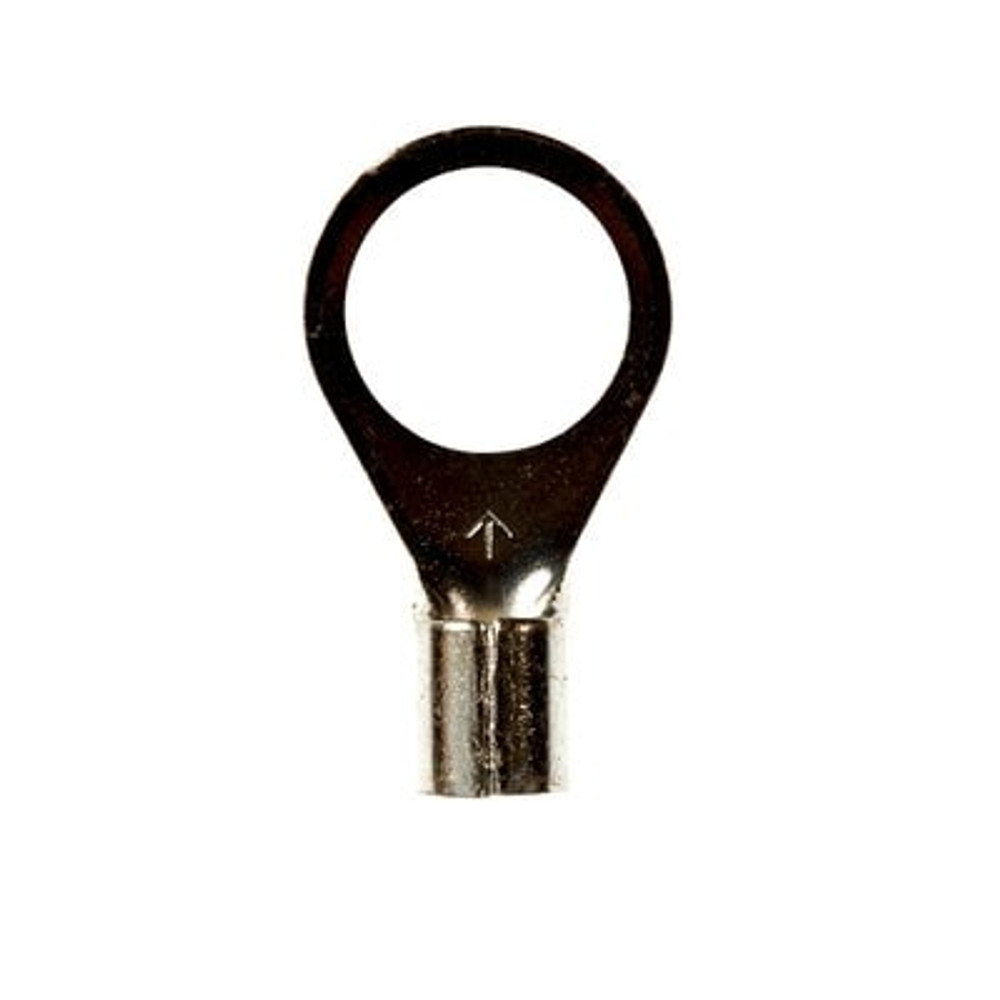

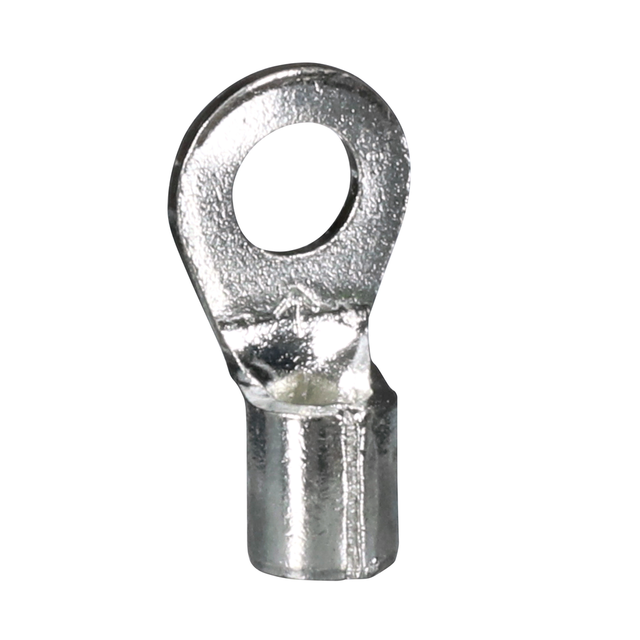

3M™ Scotchlok™ Ring Non-Insulated, 50/bottle, M10-38R/SX, standard-style ring tongue fits around the stud, 500/Case - 7100165317

Sold As: 500-Pack
SKU: 7100165317
MPN: 7100165317
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10051128589820
3M ID: 80611466287
5 Digit UPC: 58982
$397.07 ($0.79 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud

Specifications

Country of OriginUnited States
Ring TypeStandard
Terminal TypeRing
Connection Width (Imperial)0.375
Maximum Conductor Size (Metric)5.26
Overall Width (Imperial) UOMin
Barrel Length (Imperial)0.25 Inch
Minimum Conductor Size (Metric)3.31 mm²
Maximum Conductor Size (Imperial)10 AWG
Connection Width (Imperial) UOMin
Barrel StyleBrazed
Minimum Conductor Size (Imperial)12 AWG
Overall Length (Imperial)0.96
UL File NumberE23438
Maximum Operating Temperature (Celsius) UOMDegree
Insulation MaterialNon-insulated
Terminal StyleStandard
Overall Length (Imperial) UOMin
Overall Width (Imperial)0.54
Connection Width (Metric)9.525
Connection TypeCrimp
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)175.0
