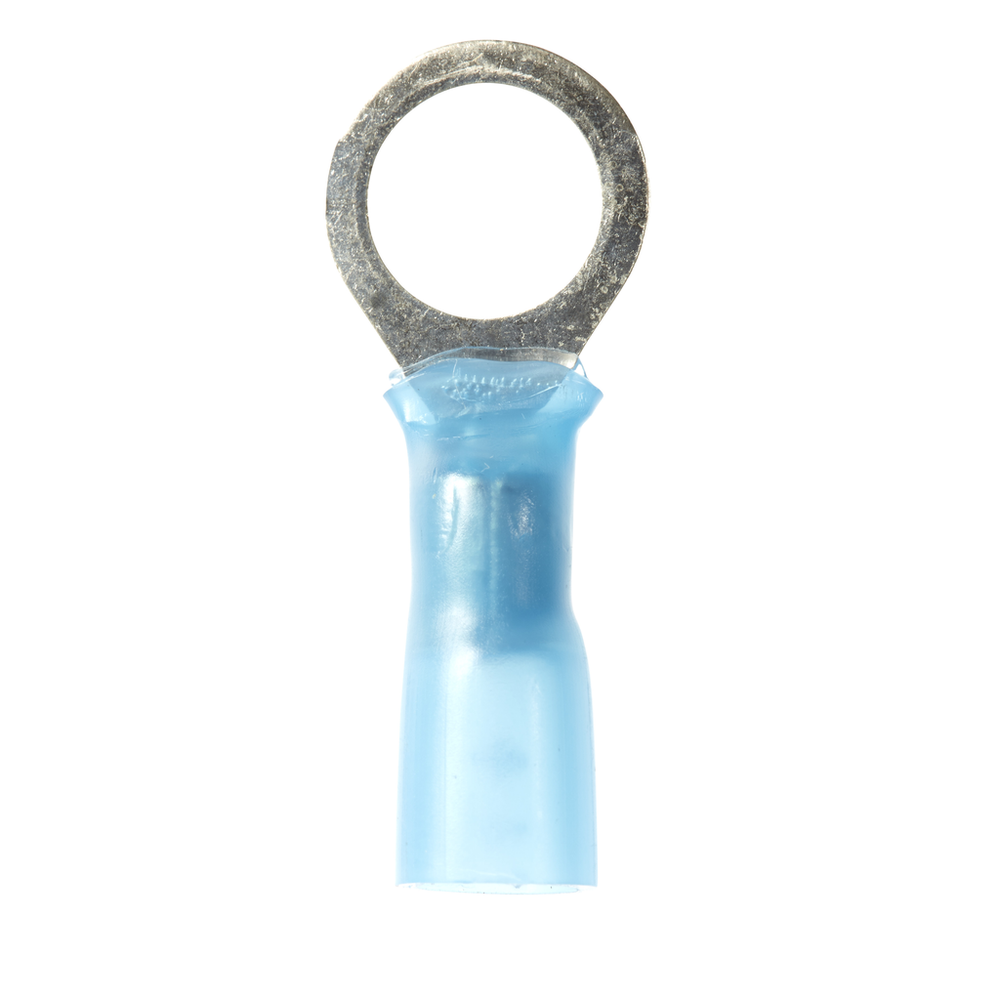

3M™ Scotchlok™ Ring Tongue, Heat Shrink Brazed Seam MH14-516R/SK, Stud Size 5/16, 250/Case - 7100164278

Sold As: 250-Pack
SKU: 7100164278
MPN: 7100164278
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007063377
3M ID: 80610530208
5 Digit UPC: 6337
$191.79 ($0.77 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Heat Shrink Brazed Seam Ring Tongue ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)16 AWG
Connection Width (Imperial) UOMin
Overall Width (Imperial)0.47
Minimum Conductor Size (Metric)1.31 mm²
Maximum Conductor Size (Metric)2.08
Overall Length (Imperial) UOMin
Maximum Conductor Size (Imperial)14 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Terminal TypeRing
Connection Width (Metric) UOMmm
Insulation MaterialHeat Shrink
Maximum Operating Temperature (Celsius)105.0
Overall Width (Imperial) UOMin
Connection Width (Imperial)0.315
Connection TypeCrimp
Connection Width (Metric)8.0
Overall Length (Imperial)1.1
