3M Products & Supplies

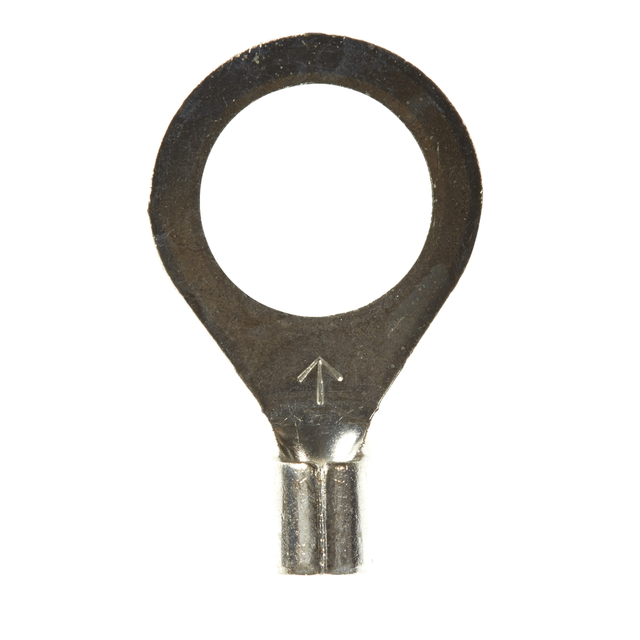

3M™ Scotchlok™ Ring Tongue, Non-Insulated Brazed Seam M10-8RK, Stud Size 8, 500/Case - 7100164080

Sold As: 500-Pack
SKU: 7100164080
MPN: 7100164080
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007018940
3M ID: 80610048284
5 Digit UPC: 1894
$153.56 ($0.31 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Connection Width (Metric) UOMmm
Overall Length (Imperial)0.73
Maximum Conductor Size (Imperial)10 AWG
Connection TypeCrimp
Maximum Conductor Size (Metric)5.26
Barrel Length (Imperial)0.25 Inch
Connection Width (Imperial) UOMin
UL File NumberE23438
Barrel StyleBrazed
Overall Width (Imperial) UOMin
Connection Width (Imperial)0.164
Connection Width (Metric)4.166
Overall Length (Imperial) UOMin
Minimum Conductor Size (Imperial)12 AWG
Minimum Conductor Size (Metric)3.31 mm²
Terminal StyleStandard
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)0.38
Maximum Operating Temperature (Celsius)175.0
Terminal TypeRing
Ring TypeStandard
Insulation MaterialNon-insulated
