3M Products & Supplies

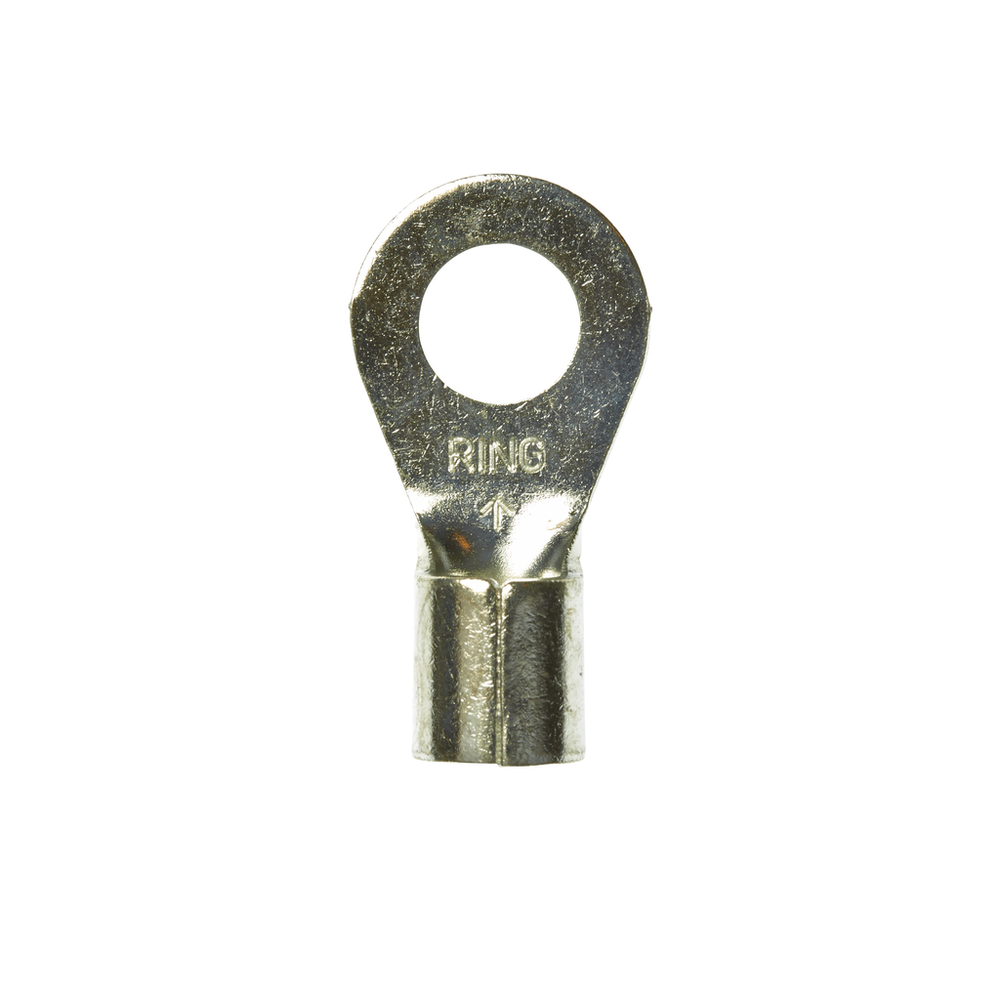

3M™ Scotchlok™ Ring Tongue, Non-Insulated Brazed Seam M6-516RK, 6 AWG, stud size of 5/16, 200/Case - 7100164156

Sold As: 200-Pack
SKU: 7100164156
MPN: 7100164156
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007021513
3M ID: 80610051577
5 Digit UPC: 2151
$194.78 ($0.97 / Count)
Hurry up! Current stock:

Product Description

This terminal has a wire range of 8 AWG and a stud size of 1/4. It comes in quantities of 25 per carton and 250 per case.

Features

  • Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Overall Length (Imperial) UOMin
Barrel StyleBrazed
Maximum Operating Temperature (Celsius)175.0
UL File NumberE23438
Overall Width (Imperial)0.63
Maximum Conductor Size (Metric)13.3
Connection Width (Imperial)0.315
Insulation MaterialNon-insulated
Connection TypeCrimp
Terminal TypeRing
Connection Width (Metric)8.0
Overall Length (Imperial)1.22
Maximum Operating Temperature (Celsius) UOMDegree
Ring TypeStandard
Minimum Conductor Size (Metric)13.3 mm²
Terminal StyleStandard
Minimum Conductor Size (Imperial)6 AWG
Maximum Conductor Size (Imperial)6 AWG
Barrel Length (Imperial)0.25 Inch
Connection Width (Imperial) UOMin
Connection Width (Metric) UOMmm
Overall Width (Imperial) UOMin
