3M Products & Supplies

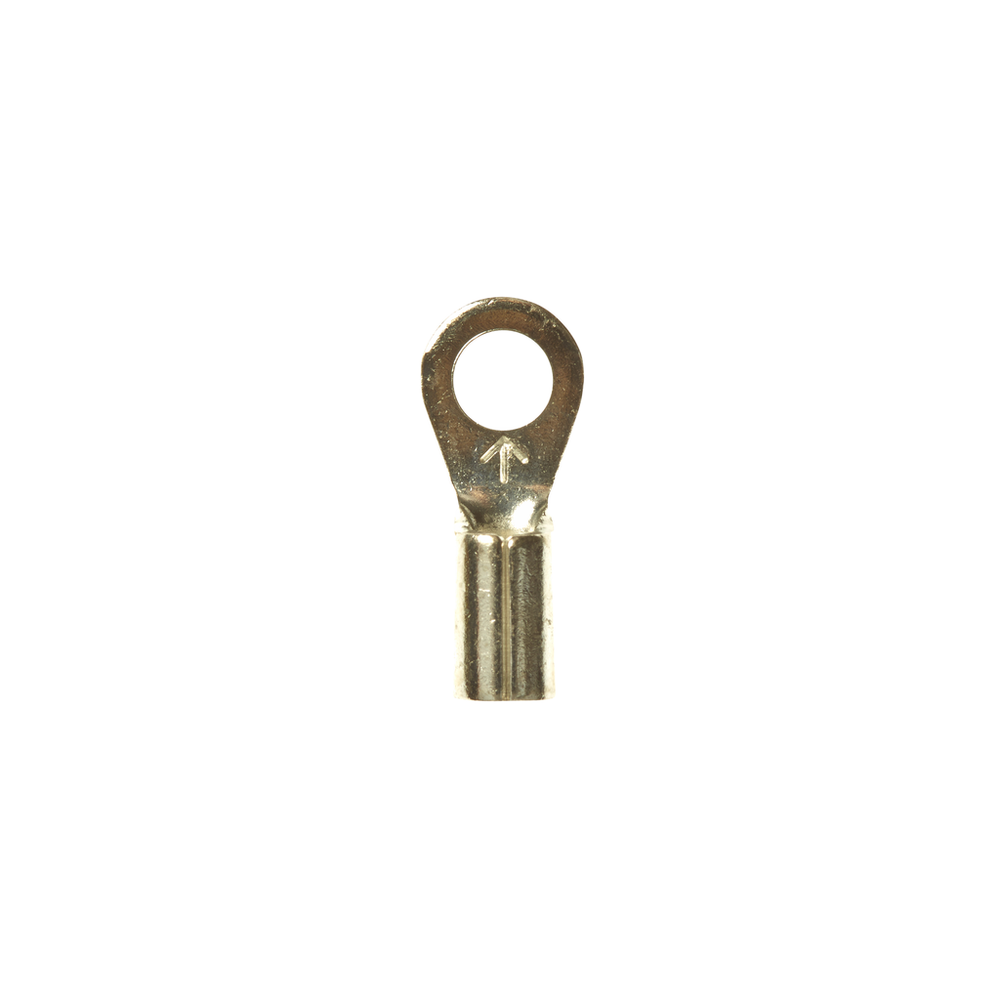

3M™ Scotchlok™ Ring Tongue, Non-Insulated Butted Seam MU14-6R/SK, Stud Size 6, 1000/Case - 7100163985

Sold As: 1000-Pack
SKU: 7100163985
MPN: 7100163985
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007013662
3M ID: 80610040091
5 Digit UPC: 1366
$175.27 ($0.18 / Count)
Hurry up! Current stock:

Product Description

3M™ Scotchlok™ Non-Insulated Butted Seam Ring Tongue terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, butted-seam barrel has a beveled mouth that guides the wire into position. Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Beveled mouth offers easy insertion of wires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Minimum Conductor Size (Imperial)16 AWG
Overall Width (Imperial) UOMin
Terminal StyleStandard
Overall Length (Imperial)0.6
Insulation MaterialNon-insulated
Maximum Conductor Size (Metric)2.08
Maximum Operating Temperature (Celsius)105.0
Barrel Length (Imperial)0.25 Inch
UL File NumberE23438
Terminal TypeRing
Solution forWireless Network: Infrastructure Accessories
Connection Width (Imperial)0.138
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Metric) UOMmm
Overall Width (Imperial)0.25
Maximum Conductor Size (Imperial)14 AWG
Minimum Conductor Size (Metric)1.31 mm²
Overall Length (Imperial) UOMin
Barrel StyleButted
Connection Width (Imperial) UOMin
Connection Width (Metric)3.5
Ring TypeStandard
