3M Products & Supplies

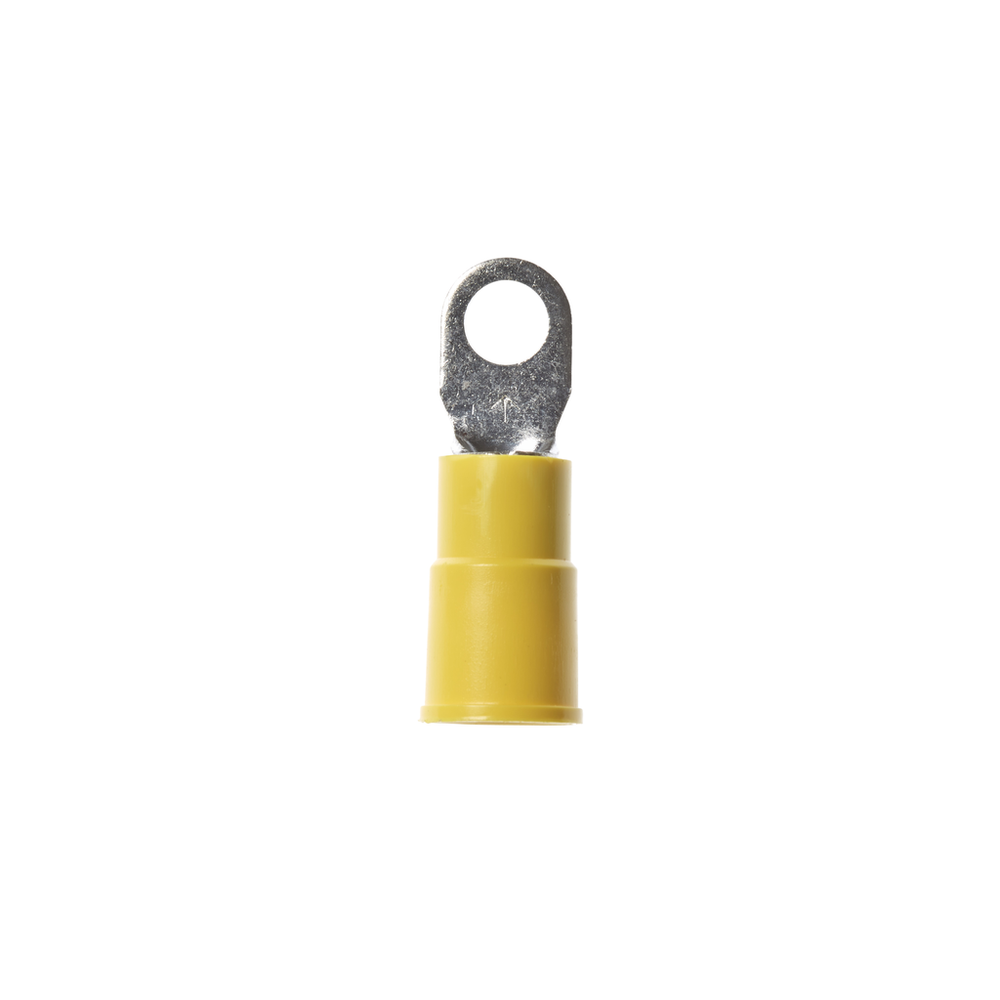

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Butted Seam MVU10-8RK, 500/case, standard-style ring tongue fits around the stud - 7100164093

Sold As: 500-Pack
SKU: 7100164093
MPN: 7100164093
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007019503
3M ID: 80610049043
5 Digit UPC: 1950
$183.95 ($0.37 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Conductor Size (Imperial)10 AWG
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Connection Width (Imperial) UOMin
Overall Width (Imperial) UOMin
Connection Width (Metric)4.166
Overall Width (Imperial)0.38
Overall Length (Imperial)1.03
Minimum Conductor Size (Imperial)12 AWG
Minimum Conductor Size (Metric)3.31 mm²
Overall Length (Imperial) UOMin
Connection Width (Imperial)0.164
Maximum Operating Temperature (Celsius)105.0
Connection TypeCrimp
Terminal TypeRing
Insulation MaterialVinyl
Maximum Conductor Size (Metric)5.26
