3M Products & Supplies

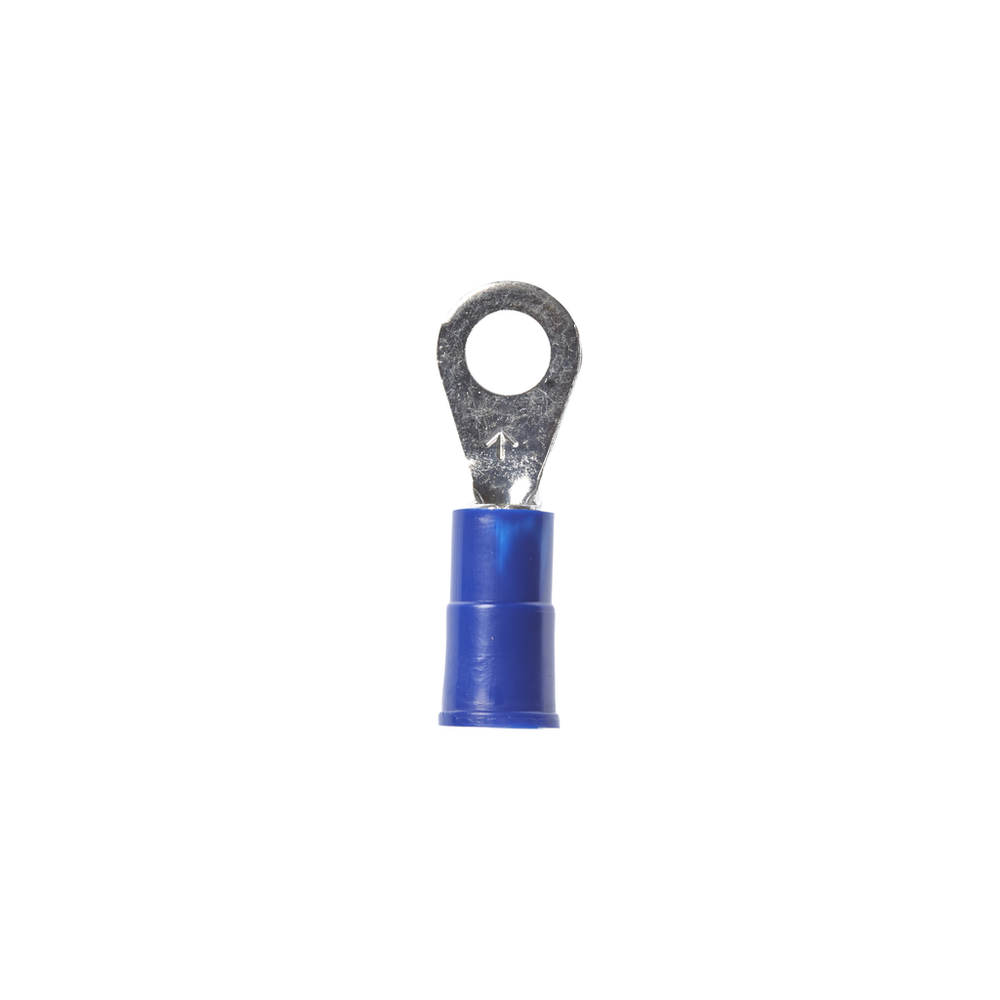

3M™ Scotchlok™ Ring Tongue, Vinyl Insulated Butted Seam MVU14-8R/LK, Stud Size 8, 1000/Case - 7100164010

Sold As: 1000-Pack
SKU: 7100164010
MPN: 7100164010
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007014515
3M ID: 80610041008
5 Digit UPC: 1451
$307.12 ($0.31 / Count)
Hurry up! Current stock:

Product Description

3M™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Insulation MaterialVinyl
Connection Width (Metric)4.166
Terminal TypeRing
Connection Width (Imperial)0.164
Minimum Conductor Size (Imperial)16 AWG
Minimum Conductor Size (Metric)1.31 mm²
Connection Width (Imperial) UOMin
Maximum Conductor Size (Imperial)14 AWG
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMin
Connection Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)105.0
Overall Length (Imperial)0.93
Maximum Conductor Size (Metric)2.08
Overall Width (Imperial) UOMin
Connection TypeCrimp
Overall Width (Imperial)0.31
