3M Products & Supplies

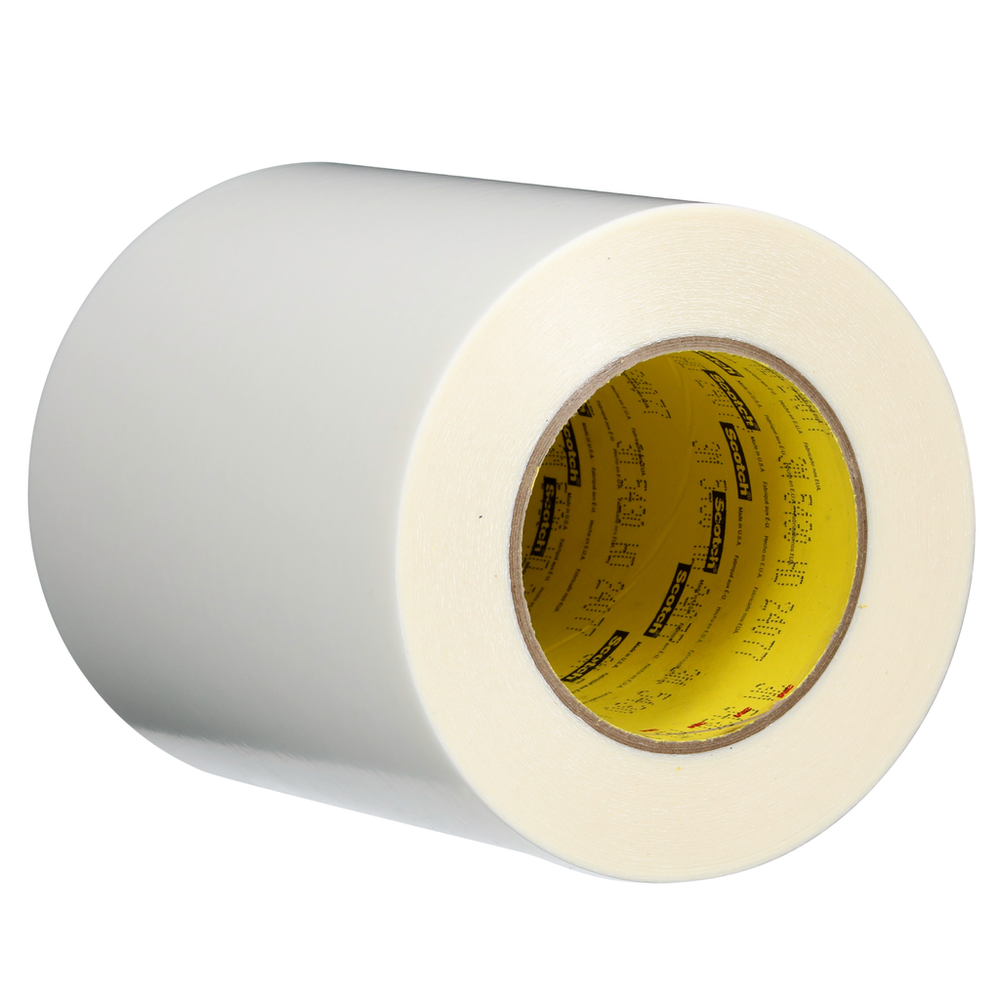

3M™ Squeak Reduction Tape 5430, Transparent, 6 5/16 in x 36 yd, 7.4 mil, 1 Roll/Case - 7100226413

Sold As: 2-Pack
SKU: 7100226413
MPN: 7100226413
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060406182
3M ID: 70007543310
5 Digit UPC: 40618
$2,965.41 ($1482.70 / Count)
Hurry up! Current stock:

Product Description

3M™ Squeak Reduction Tape 5430 is a transparent UHMW polyethylene film tape with an acrylic adhesive. It is commonly used to control squeaks and rattles due to vibration or wear of metal and plastic parts.

Features

  • Low coefficient of friction for applications requiring slick surface
  • Excellent adhesion to many painted metal and plastic surfaces
  • UHMW polyethylene backing reduces and helps eliminate noise and vibration
  • Liner ideal for fabrication and die cutting into various lengths and shapes
  • High-tack acrylic adhesive provides strong initial bond for fast results and less down time
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Adhesion Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Fahrenheit)225.0
Adhesion Strength (Metric)82.0
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Tensile Strength (Metric)74.5
Overall Length (Imperial)36.0
Minimum Operating Temperature (Fahrenheit)-30.0
Overall Width (Imperial)6.313
Overall Length (Metric) UOMm
Overall Width (Metric)160.338
Adhesive TypeAcrylic
Maximum Operating Temperature (Celsius)107.0
Overall Length (Metric)32.918
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Imperial)5.1
Total Tape Thickness without Liner (Imperial)7.4
Backing (Carrier) MaterialPolyethylene
Backing (Carrier) Thickness (Metric)0.13
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.19
Product ColorTransparent
Tensile Strength (Imperial)40.0
Elongation at Break420%
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Imperial) UOMlb/in
Adhesion Strength75.0
