3M Products & Supplies

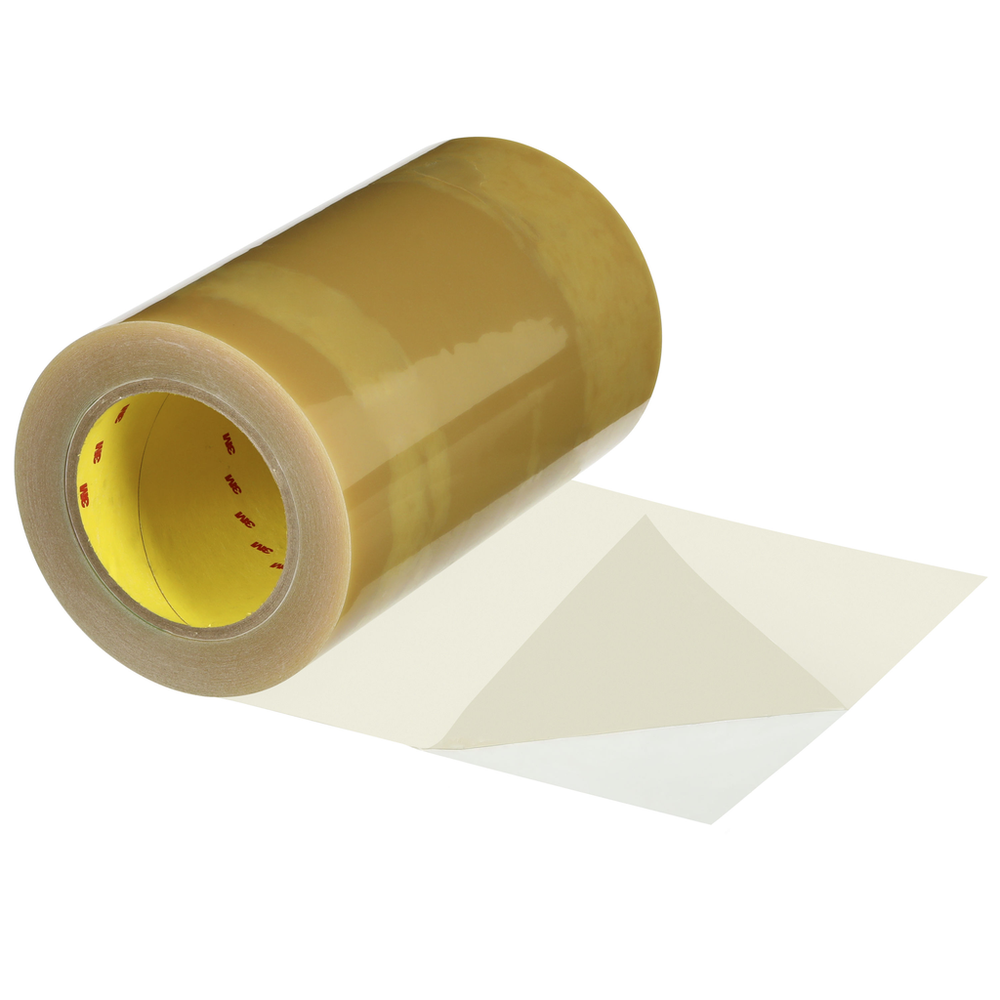

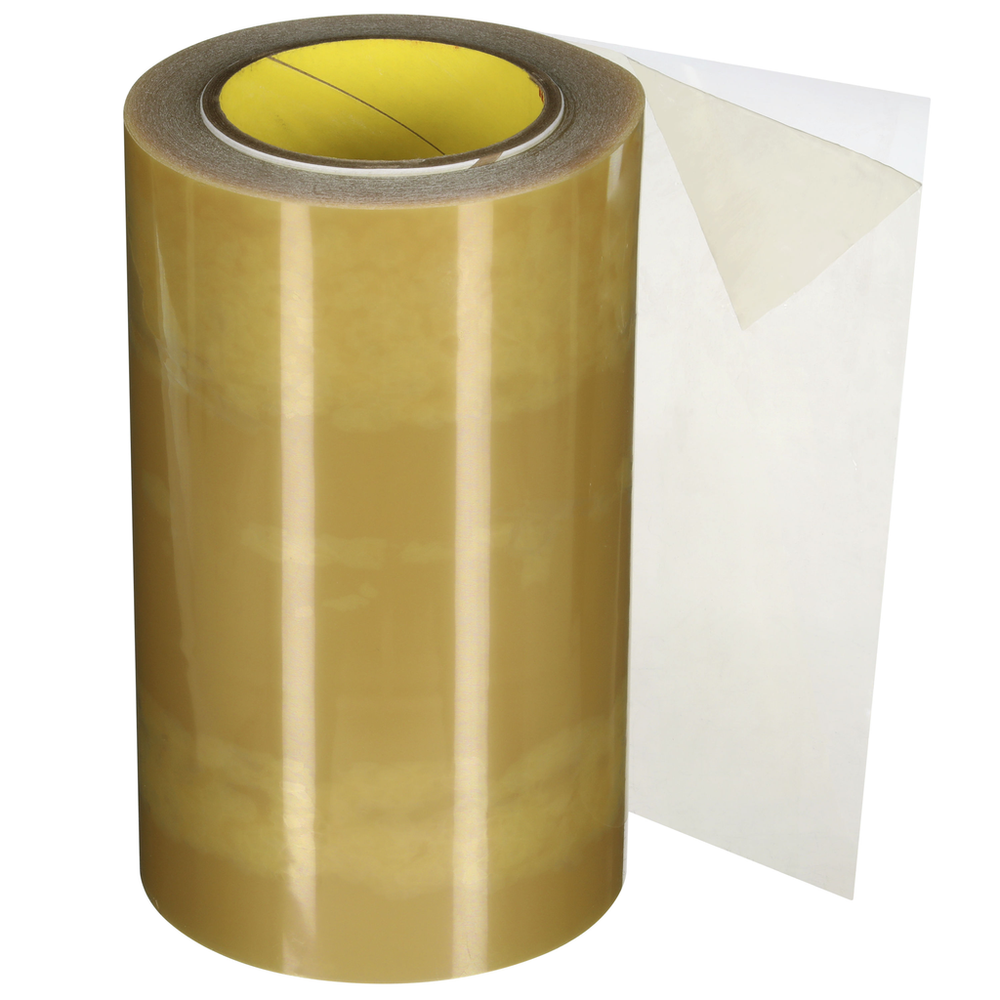

3M™ Thermal Bonding Film 583, 6 in x 60 yds, 8/Case - 7100048746

Sold As: 8-Pack
SKU: 7100048746
MPN: 7100048746
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200436680
3M ID: 70006269669
5 Digit UPC: 43668
$1,354.99 ($169.37 / Count)
Hurry up! Current stock:

Product Description

3M™ Thermal Bonding Film 583 is a high strength, flexible, nitrile phenolic based thermosetting adhesive film. It can be heat or solvent activated for bonding. It can also be lightly crosslinked using a post heat exposure.

Features

  • Heat or solvent activation
  • Slight surface tack
  • Heat crosslinkable option
  • Can be die-cut
  • Lower temperature lamination of the nitrile phenolic film range
  • Flexible
Spec Sheet



Downloads

Specifications

Shelf Life548
Country of OriginUnited States
Overall Length (Metric)54.9
Overall Thickness (Metric)5.0
Maximum Cure Conditions (Fahrenheit)300.0
Shelf Life UOMMonth
Backing Thickness (Metric)0.0
Overall Thickness (Imperial)0.127
Product FormRoll
Overall Thickness (Imperial) UOMmil
Adhesive TypeNitrile Phenolic
Shear Strength14.0
Minimum Operating Temperature (Fahrenheit)0.0
IndustriesElectronics, General Industrial, Transportation
Overall Width (Imperial)6.0
Maximum Cure Conditions (Celsius)150.0
Minimum Cure Conditions (Celsius)107.0
Minimum Cure Conditions (Fahrenheit)225.0
Maximum Operating Temperature (Celsius) UOMDegree
Curing Temperature (Celsius) UOMDegree
Product ColorBrown
Density0.0
ApplicationBonding; Sealing
Overall Width (Metric)152.4
Nominal Weight (Metric)0.0
Backing Thickness (Imperial)0.0
Nominal Adhesive Thickness (Imperial)2.0
Curing Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Fahrenheit)300.0
Nominal Adhesive Thickness (Metric)0.05
Overall Length (Metric) UOMm
Overall Width (Imperial) UOMin
Nominal Weight (Imperial)0.0
Minimum Operating Temperature (Celsius)0.0
Shear Strength UOMpsi
Overall Length (Imperial)60.0
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)150.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product UsageElectronic Components
Overall Thickness (Metric) UOMmm
