3M Products & Supplies

3M™ Thin-Wall Heat Shrink Tubing EPS-300, Adhesive-Lined, black/red, 5 kits per carton - 7000132720

Sold As: 5-Pack
SKU: 7000132720
MPN: 7000132720
For an accurate lead time please contact us
UPC: 00051135384442
3M ID: 80610909394
5 Digit UPC: 38444
$982.39 ($196.48 / Count)
Hurry up! Current stock:

Product Description

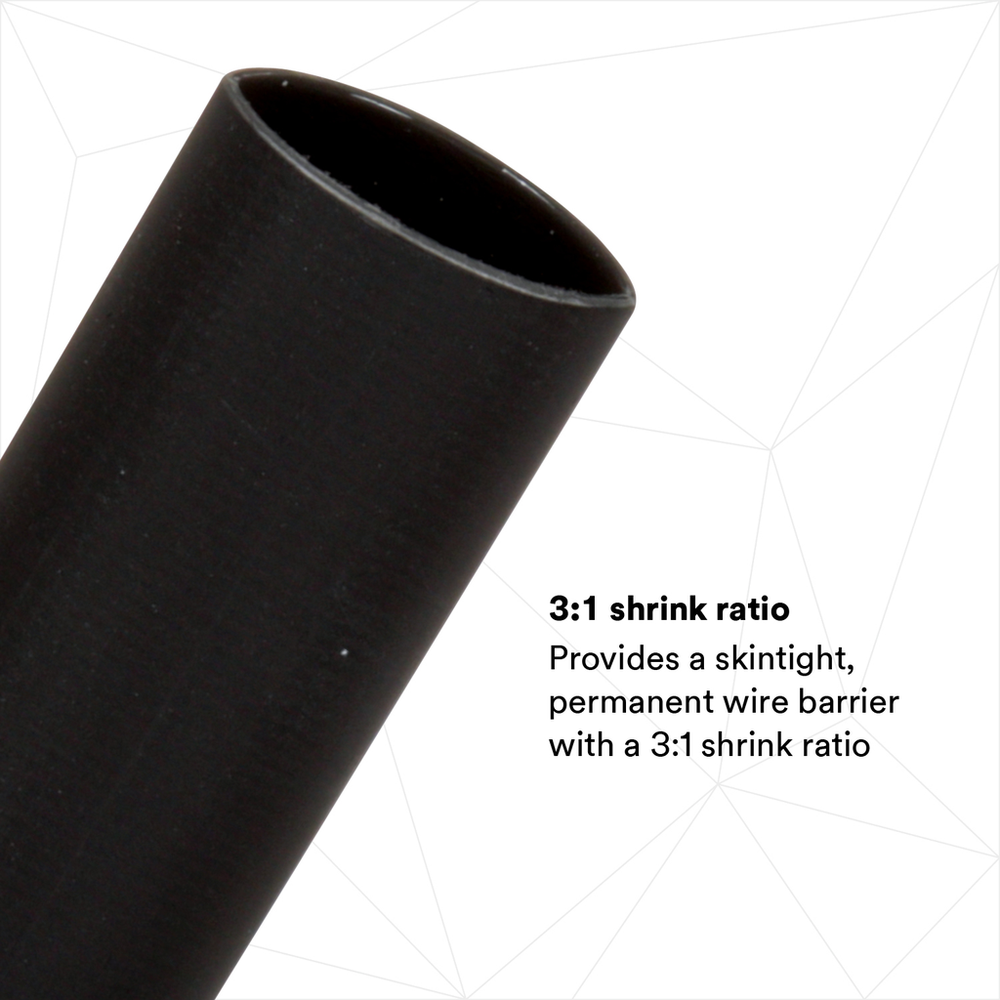

3M™ Heat Shrink Tubing EPS-300 is a dual wall tubing provides the advantage of an integral, adhesive lined construction. This flame retardant tubing with a 3:1 shrink ratio offers insulation for 600V rated applications. The flexible polyolefin construction features an internal layer of thermoplastic adhesive, which offers moisture seal protection in automotive and marine applications.

Features

  • Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts

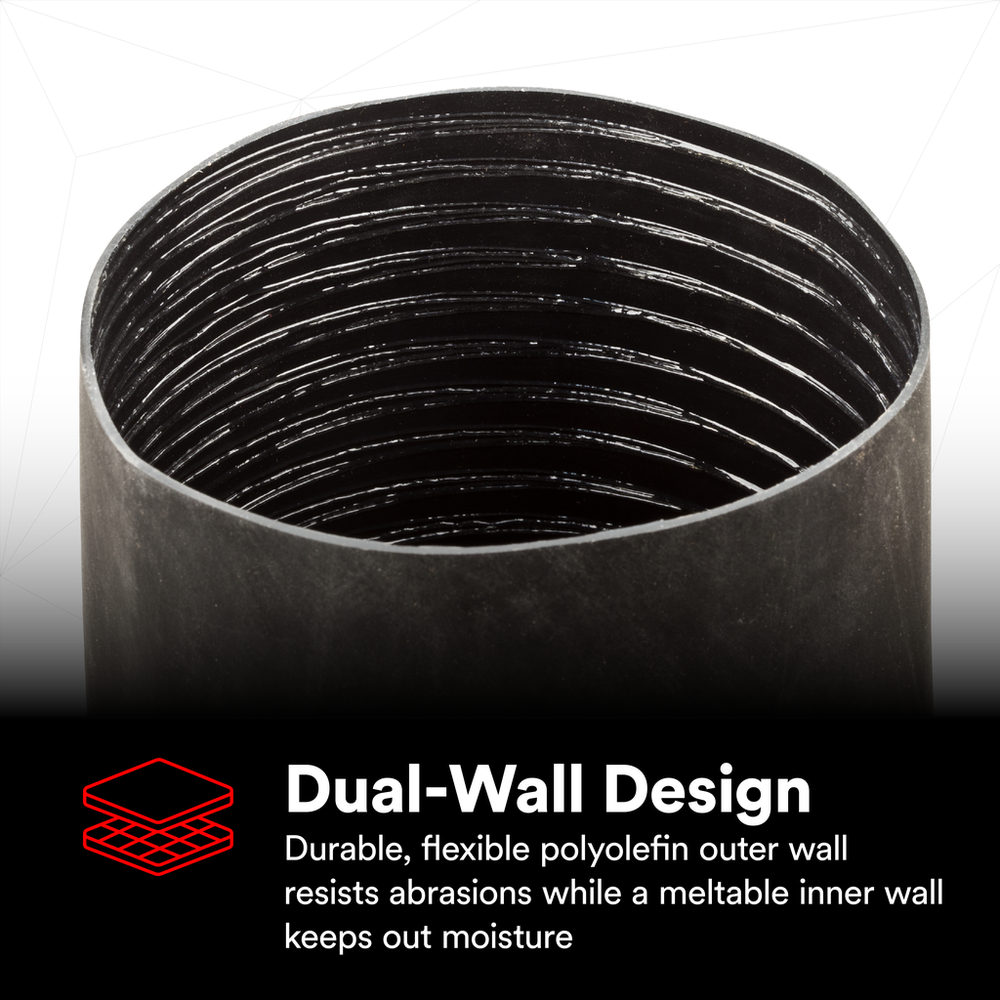

  • Dual-wall construction provides abrasion resistance and moisture-seal protection

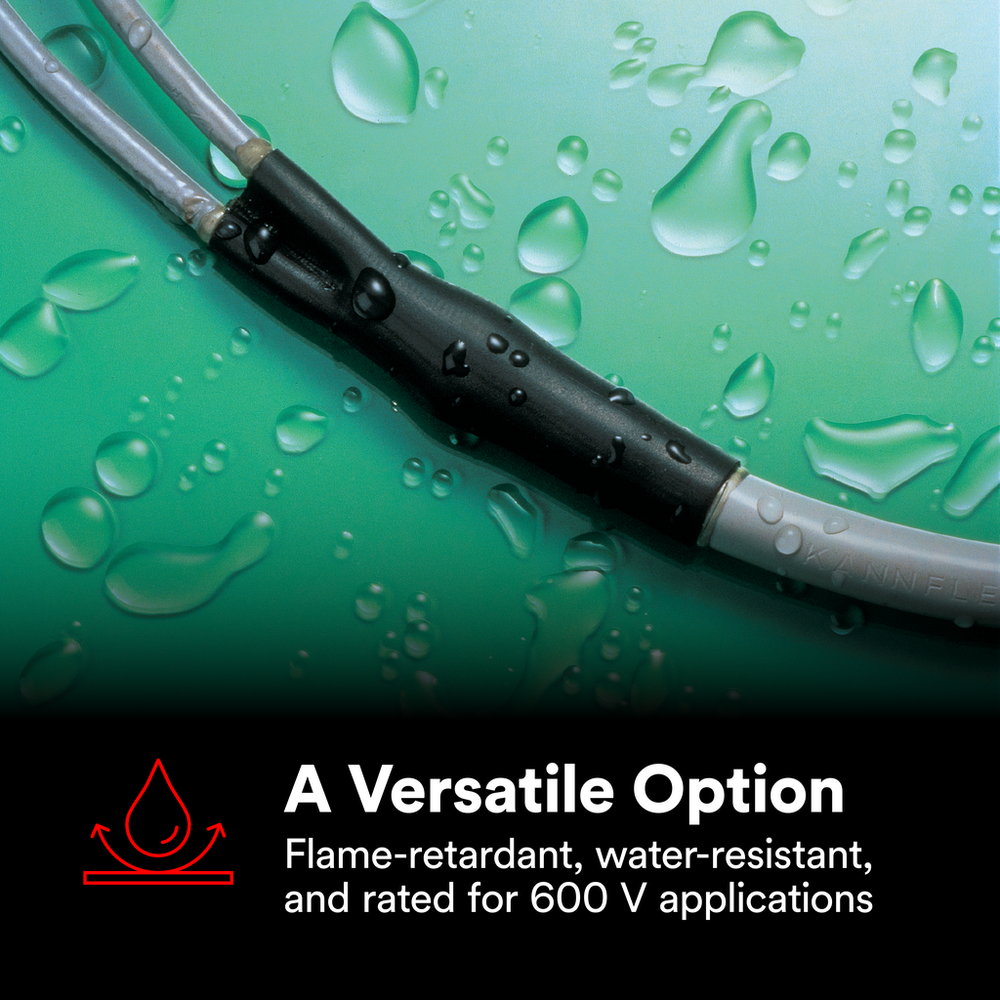

  • Flame-retardant tubing is rated for 600V applications
  • Made of black flexible polyolefin
  • Offers the advantage of integral, adhesive-lined construction

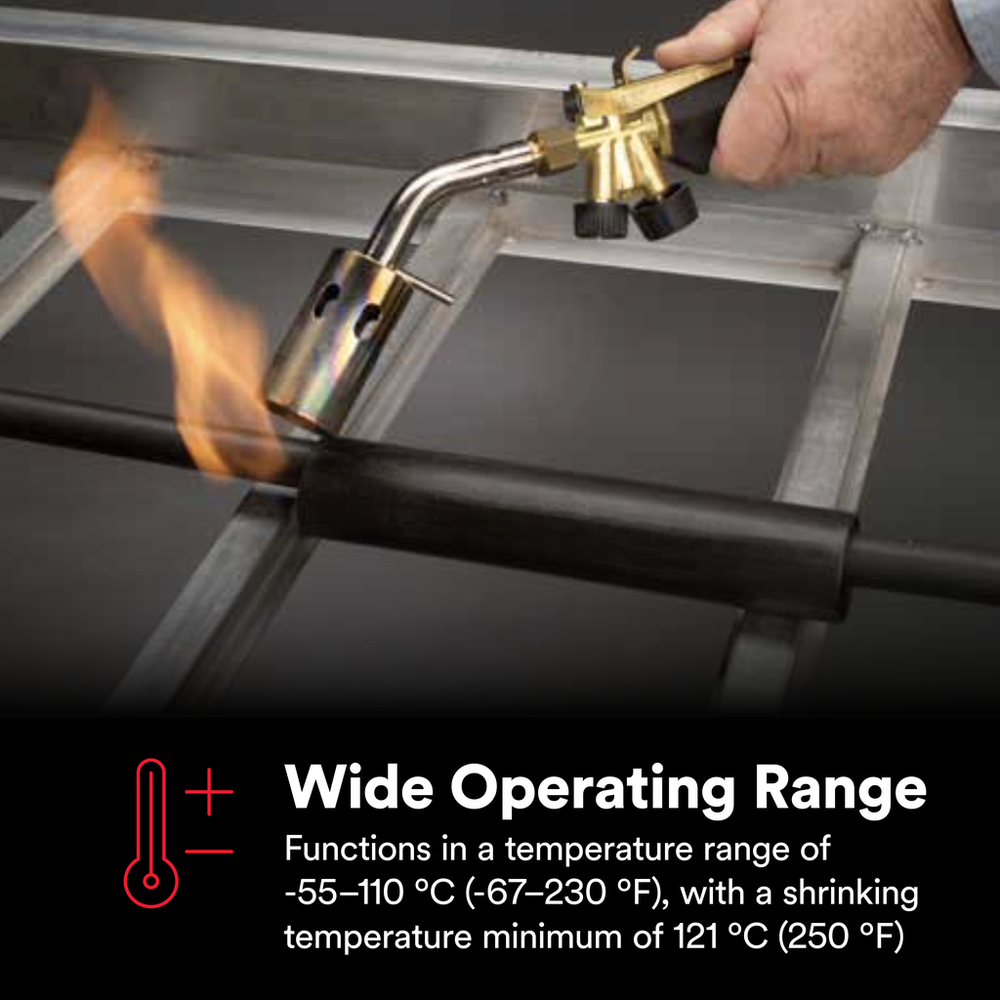

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Imperial)0.15
Non-CorrosiveYes
Minimum Expanded Tubing I. D. UOMin
Maximum Operating Temperature (Celsius)110.0
Inner Diameter After Shrink (Metric)3.81
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Inner Diameter Before Shrink (Imperial) UOMin
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric)7.62
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)230.0
Product ColorBlack, Red
Minimum Expanded Tubing I. D.0.3
Inner Diameter Before Shrink (Imperial)0.3
Operating Temperature (Celsius)-55 °C to 110 °C
Units per Case42.0
Adhesive MaterialSilicone
Flame RetardantYes
Overall Length (Imperial)48.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Shrink Ratio3:1
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
MaterialPolyolefin
Overall Width (Imperial)0.0
Operating Temperature Range (Celsius)-55 °C to 110 °C
UL File NumberE-157227
Elongation UOMdB
Overall Length (Imperial) UOMin
Tubing TypeDual Wall (Adhesive Lined)
Maximum Operating Temperature (Fahrenheit) UOMDegree
