3M Products & Supplies

3M™ Thin-Wall Polyolefin Heat Shrink Tubing FP 301 1-1/2" Green spool, 2 Rolls/Case - 7010349972

Sold As: 200-Pack
SKU: 7010349972
MPN: 7010349972
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 10054007566462
3M ID: 80610646061
5 Digit UPC: 56646
$534.48 ($2.67 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications

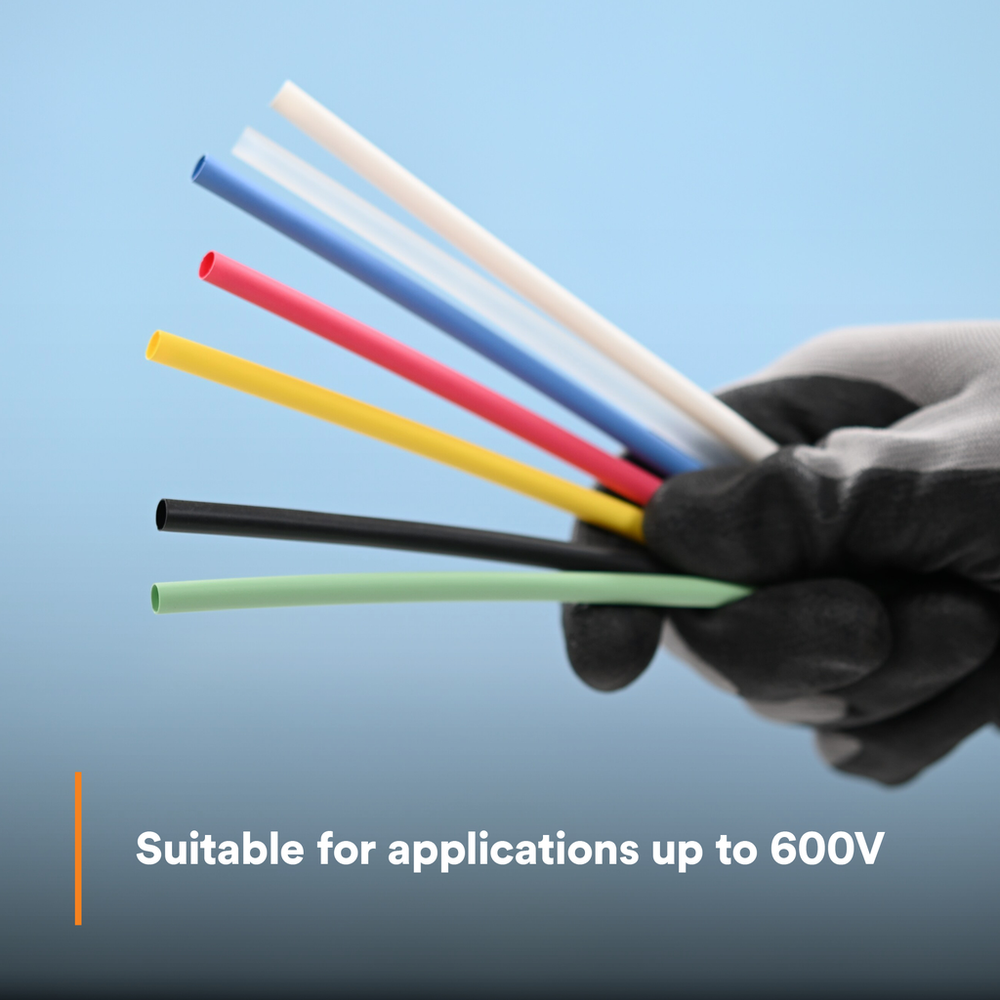

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)

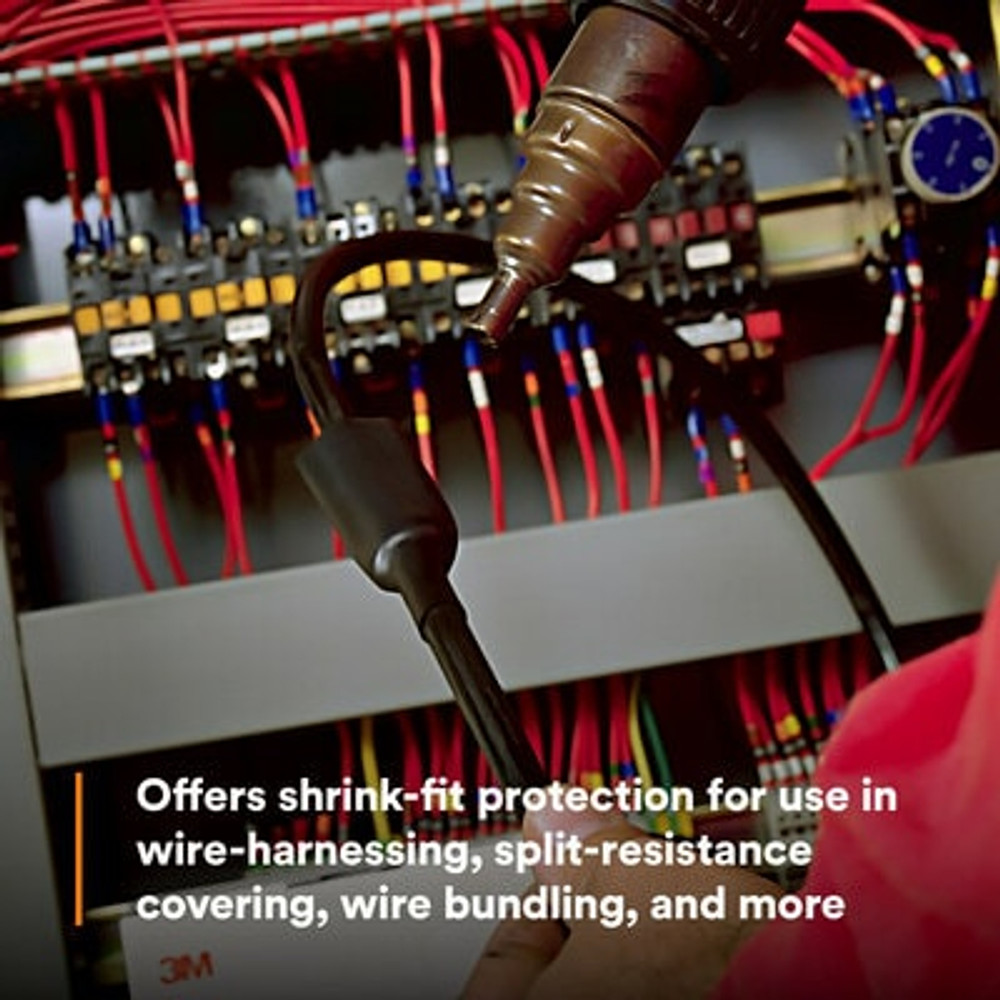

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius)135.0
Non-CorrosiveYes
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)1.5
Elongation UOM%
Adhesive MaterialNone
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric)38.1
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Metric)19.05
Inner Diameter After Shrink (Imperial)0.75
