3M Products & Supplies

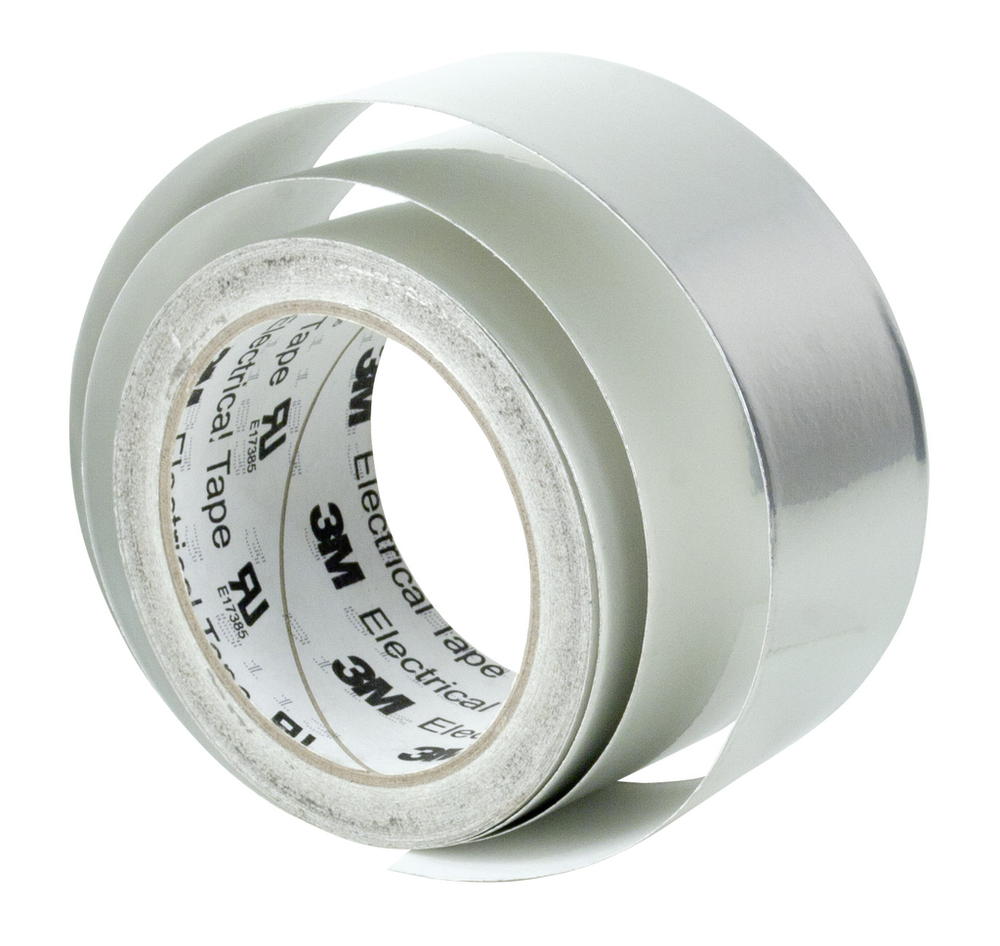

3M™ Tin-Plated Copper Foil EMI Shielding Tape 1183, 3/4 in x 18 yd, 3 in Paper Core, 12 Rolls/Case - 7000132708

Sold As: 12-Pack
SKU: 7000132708
MPN: 7000132708
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138498719
3M ID: 80610884480
5 Digit UPC: 49871
$850.56 ($70.88 / Count)
Hurry up! Current stock:

Product Description

3M™ Tin Plated Copper Foil EMI Shielding Tape 1183 is a 2.6 mil thick, acrylic adhesive shielding tape. This flame retardant tape is suitable for applications that require outstanding electrical conductivity from the application substrate through the adhesive to the backing. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Comes on a removable liner for easy die-cutting and handling
  • Rated for 600V applications
  • Suitable for grounding and EMI shielding equipment, components and shielded rooms
  • Unique adhesive creates secure contact with the application surface
  • Flame-retardant
  • Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Overall Width (Imperial)0.75
Overall Width (Metric)19.0
Shelf Life UOMYear
Overall Width (Metric) UOMmm
Overall Length (Metric)16.5
Total Tape Thickness without Liner (Metric) UOMmm
Product MarketsElectrical Equipment Manufacturing
Specifications MetRoHS 2011/65/EU, UL Listed, UL Recognized
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.04
Product ColorTin
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric)0.066
Backing (Carrier) MaterialTin Plated Copper Foil, Flat
Backing (Carrier) Thickness (Imperial) UOMmil
Tensile Strength (Metric) UOMN/cm
Overall Length (Imperial)18.0
Backing (Carrier) Thickness (Imperial)1.6
ApplicationShielding
Overall Length (Imperial) UOMyd
MaterialTin Plated Copper Foil
Overall Length (Metric) UOMm
Tape GradeProfessional
Tensile Strength (Metric)44.0
Adhesive TypeConductive Acrylic
