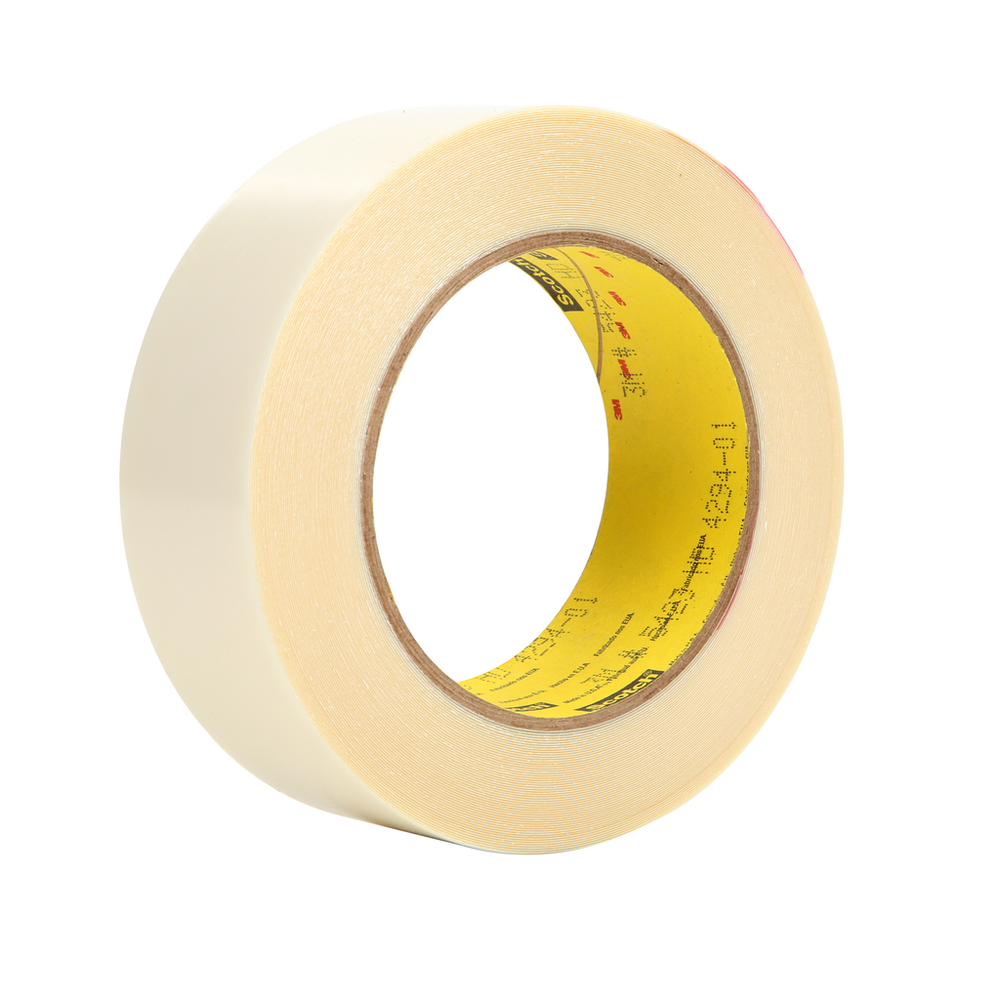

3M™ UHMW Film Tape 5421, Transparent, 1 1/4 in x 18 yd, 6.7 mil, 6 Rolls/Case, Boxed - 7000050096

Sold As: 18-Pack
SKU: 7000050096
MPN: 7000050096
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200735981
3M ID: 70016048293
5 Digit UPC: 73598
$2,114.06 ($117.45 / Count)
Hurry up! Current stock:

Product Description

Used to protect surfaces from abrasion, 3M™ UHMW-PE Film Tape 5421 is a thin caliper general purpose polyethylene tape that creates a "slip plane" effect to allow contact without wear. This tape features a unique combination of properties that make it ideal for many tough impact wear or sliding applications. 3M™ UHMW-PE Film Tape 5421 is a thinner version of 3M™ UHMW-PE Film Tape 5423.

Features

  • Low coefficient of friction for “slip plane” effect between surfaces
  • Rubber adhesive provides good initial tack for immediate bonding to material surface
  • Liner makes it ideal for fabricating or die-cutting into various lengths and shapes
  • Can help reduce squeaks, rattles and other noises that occur with movement
  • Used in applications where lubrication is not possible because of contamination
  • Translucent, abrasion resistant backing helps protect surfaces from wear
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Metric)0.17
Backing (Carrier) MaterialPolyethylene
Adhesion Strength26.0
Overall Length (Imperial)18.0
Overall Length (Metric)16.45
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)6.7
Elongation at Break440%
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)107.0
Tensile Strength (Metric) UOMN/100mm
ApplicationGeneral Industrial
Minimum Operating Temperature (Celsius) UOMDegree
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Product ColorTransparent
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric) UOMm
Minimum Operating Temperature (Celsius)-34.0
Adhesive TypeRubber
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-30.0
Backing (Carrier) Thickness (Metric)0.13
Primary Liner60# Densified Kraft, Silicone Treated Paper
Overall Length (Imperial) UOMyd
Adhesion Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)225.0
Units per Case6.0
Tensile Strength (Imperial)30.0
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric)796.0
Overall Width (Metric) UOMmm
Overall Width (Metric)31.75
Adhesion Strength (Metric)28.0
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Overall Width (Imperial)1.25
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial)5.0
