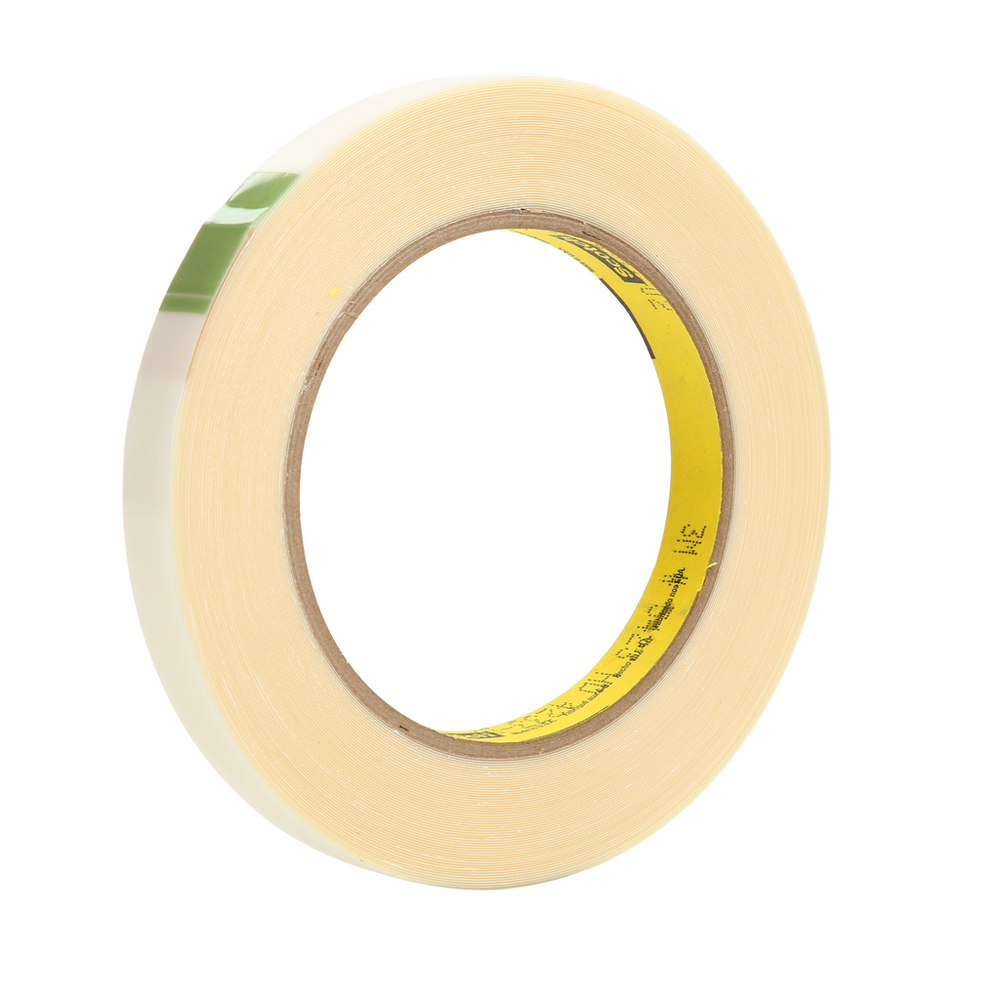

3M™ UHMW Film Tape 5421, Transparent, 1/2 in x 18 yd, 6.7 mil, 16 Rolls/Case - 7100245638

Sold As: 16-Pack
SKU: 7100245638
MPN: 7100245638
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060410042
3M ID: 70007547543
5 Digit UPC: 41004
$901.99 ($56.37 / Count)
Hurry up! Current stock:

Product Description

Used to protect surfaces from abrasion, 3M™ UHMW-PE Film Tape 5421 is a thin caliper general purpose polyethylene tape that creates a "slip plane" effect to allow contact without wear. This tape features a unique combination of properties that make it ideal for many tough impact wear or sliding applications. 3M™ UHMW-PE Film Tape 5421 is a thinner version of 3M™ UHMW-PE Film Tape 5423.

Features

  • Translucent, abrasion resistant backing helps protect surfaces from wear
  • Rubber adhesive provides good initial tack for immediate bonding to material surface
  • Used in applications where lubrication is not possible because of contamination
  • Liner makes it ideal for fabricating or die-cutting into various lengths and shapes
  • Low coefficient of friction for “slip plane” effect between surfaces
  • Can help reduce squeaks, rattles and other noises that occur with movement
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Adhesive TypeRubber
Backing (Carrier) MaterialPolyethylene
Overall Length (Imperial) UOMyd
Overall Length (Metric)16.459
Total Tape Thickness without Liner (Metric)0.17
Tensile Strength (Metric)796.0
Adhesion Strength26.0
Minimum Operating Temperature (Fahrenheit)-30.0
Maximum Operating Temperature (Celsius)107.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
ApplicationGeneral Industrial
Overall Width (Metric) UOMmm
Primary Liner60# Densified Kraft, Silicone Treated Paper
Elongation at Break440%
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesion Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Fahrenheit)225.0
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Maximum Operating Temperature (Celsius) UOMDegree
IndustriesAerospace, Appliance, Automotive, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Overall Width (Metric)12.7
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Imperial)5.0
Total Tape Thickness without Liner (Imperial)6.7
Minimum Operating Temperature (Celsius)-34.0
Overall Width (Imperial) UOMin
Product ColorTransparent
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)18.0
Overall Width (Imperial)0.5
Tensile Strength (Imperial) UOMlb/in
Adhesion Strength (Metric)28.0
Backing (Carrier) Thickness (Metric)0.13
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Imperial)30.0
