3M Products & Supplies

3M™ Venting Tape 3294, Pink, 1 1/2 in x 36 yd, 5 mil, 24 Roll/Case - 7010312339

Sold As: 24-Pack
SKU: 7010312339
MPN: 7010312339
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200266652
3M ID: 70006209335
5 Digit UPC: 26665
$903.56 ($37.65 / Count)
Hurry up! Current stock:

Product Description

3M™ Venting Tape 3294 is a pink non-woven, synthetic backing with a strip-coated low-tack pressure sensitive acrylic adhesive for use in various venting applications requiring high outgassing rates.

Features

  • Adhesive is strip-coated so uncoated areas have higher permeability to help minimize foaming voids
  • Meets most outgassing requirements for foam-in-place insulation processes
  • Features a unique non-woven conformable backing that has high air/gas permeability

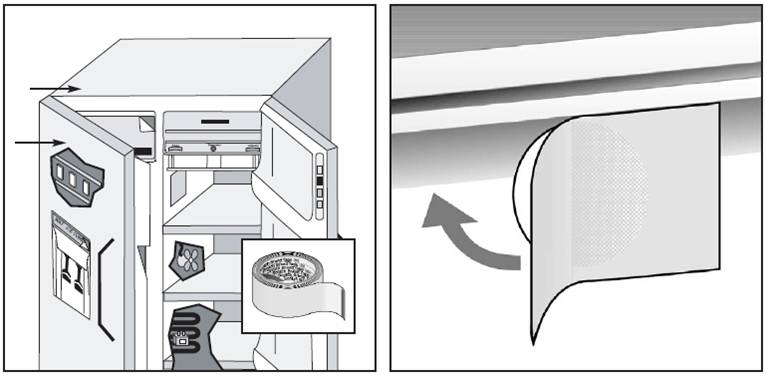

  • Commonly used for outgas venting in appliance manufacturing
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Shelf Life in Months (From Date of Manufacture) UOMMonths
Tensile Strength (Metric) UOMN/100mm
Adhesion Strength (Metric) UOMN/100mm
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Total Tape Thickness without Liner (Metric)0.13
Overall Length (Imperial) UOMyd
IndustriesAppliance
Units per Case UOMRoll
ApplicationOutgas Venting in Appliances
Overall Length (Metric) UOMm
Liner ColorPink
Shelf Life in Months (From Date of Manufacture)18.0
Overall Width (Imperial) UOMin
Backing Thickness (Imperial)4.0
Overall Width (Imperial)1.5
Backing Thickness (Metric) UOMmm
Liner MaterialAcrylic
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)5.0
Overall Thickness (Imperial) UOMmil
Overall Thickness (Imperial)5.0
Maximum Operating Temperature (Fahrenheit)120.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric)14.0
Elongation at Break15%
Overall Length (Metric)32.91
Backing Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius)49.0
Adhesive TypeAcrylic
Backing (Carrier) MaterialNon-woven
Units per Case24.0
Overall Width (Metric)38.1
Product FormRoll
Total Tape Thickness without Liner (Imperial) UOMmil
Product ColorPink
Backing MaterialNon-woven
Total Tape Thickness without Liner (Metric) UOMmm
Back Side Adhesive Thickness (Metric) UOMmm
Adhesion Strength (Imperial)9.0
Number of Adhesive SidesSingle-sided
Adhesion Strength (Metric)9.9
Product TypeTape
Back Side Adhesive Thickness (Metric)0.1
Backing Thickness (Metric)0.1
Overall Length (Imperial)36.0
