3M Products & Supplies

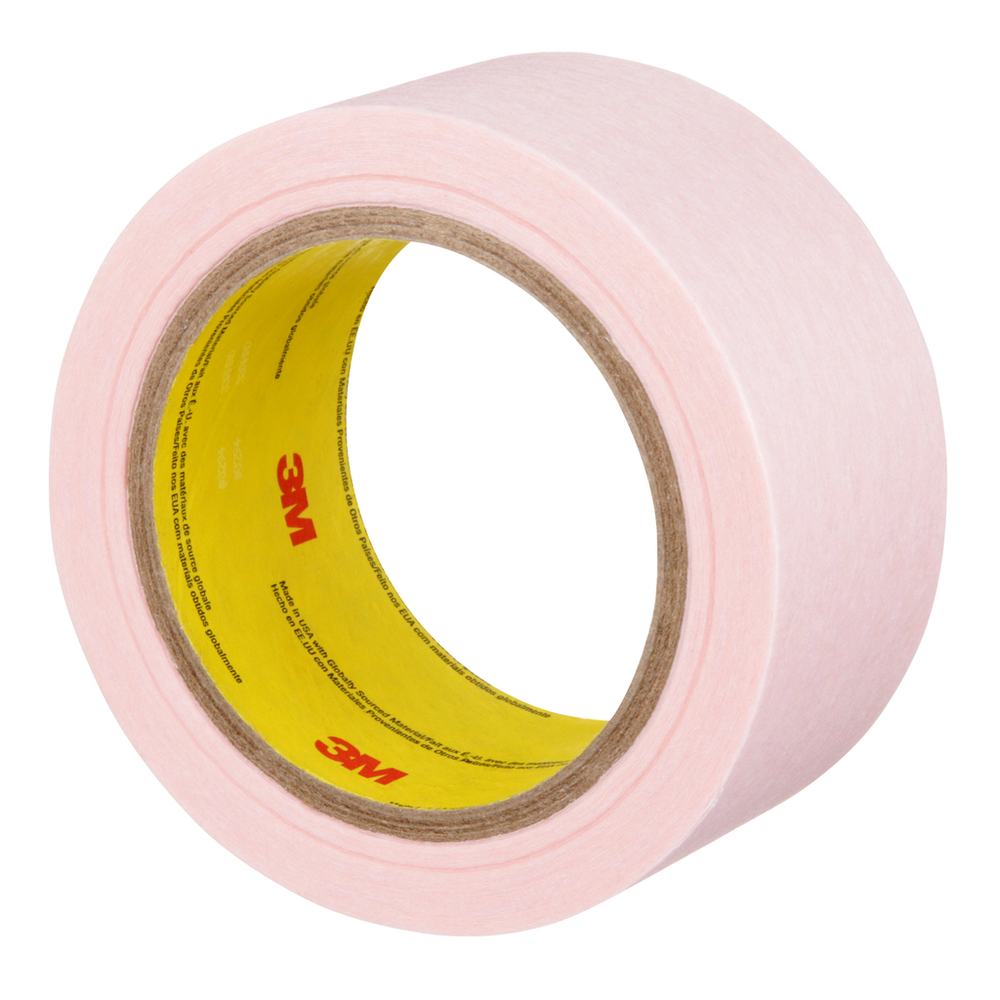

3M™ Venting Tape 3294, Pink, 3/4 in x 36 yd, 5 mil, 48 Roll/Case - 7100008182

Sold As: 48-Pack
SKU: 7100008182
MPN: 7100008182
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200266676
3M ID: 70006209319
5 Digit UPC: 26667
$948.15 ($19.75 / Count)
Hurry up! Current stock:

Product Description

3M™ Venting Tape 3294 is a pink non-woven, synthetic backing with a strip-coated low-tack pressure sensitive acrylic adhesive for use in various venting applications requiring high outgassing rates.

Features

  • Meets most outgassing requirements for foam-in-place insulation processes
  • Features a unique non-woven conformable backing that has high air/gas permeability

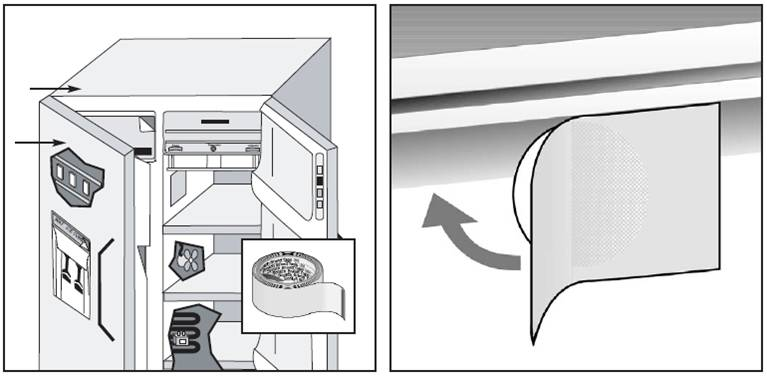

  • Commonly used for outgas venting in appliance manufacturing
  • Adhesive is strip-coated so uncoated areas have higher permeability to help minimize foaming voids
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.13
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) MaterialNon-woven
Overall Height (Metric)0.1
Overall Height (Imperial) UOMmil
Backing Thickness (Metric)0.1
Overall Width (Metric)1.9
Adhesion Strength (Metric) UOMN/100mm
Adhesion Strength (Metric)9.9
Product FormRoll
Number of Adhesive SidesSingle-sided
Product ColorPink
Maximum Operating Temperature (Celsius)49.0
Back Side Adhesive Thickness (Metric) UOMmm
Overall Width (Metric) UOMcm
Tensile Strength (Metric) UOMN/100mm
Back Side Adhesive Thickness (Metric)0.1
Overall Length (Imperial)36.0
Adhesion Strength (Imperial)9.0
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)5.0
Elongation at Break15%
Overall Length (Metric)32.9
Overall Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)120.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Shelf Life in Months (From Date of Manufacture)18.0
Overall Length (Imperial) UOMyd
IndustriesAppliance
Backing Thickness (Imperial)4.0
Product TypeTape
Overall Width (Imperial)0.8
Shelf Life in Months (From Date of Manufacture) UOMMonths
Backing Thickness (Metric) UOMmm
Tensile Strength (Metric)14.0
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMm
ApplicationOutgas Venting in Appliances
Overall Height (Metric) UOMmm
Overall Thickness (Imperial)5.0
Units per Case48.0
Liner ColorPink
Overall Height (Imperial)4.0
Maximum Operating Temperature (Celsius) UOMDegree
Liner MaterialAcrylic
Backing Thickness (Imperial) UOMmil
Backing MaterialNon-woven
Units per Case UOMRoll
Adhesive TypeAcrylic
