3M Products & Supplies

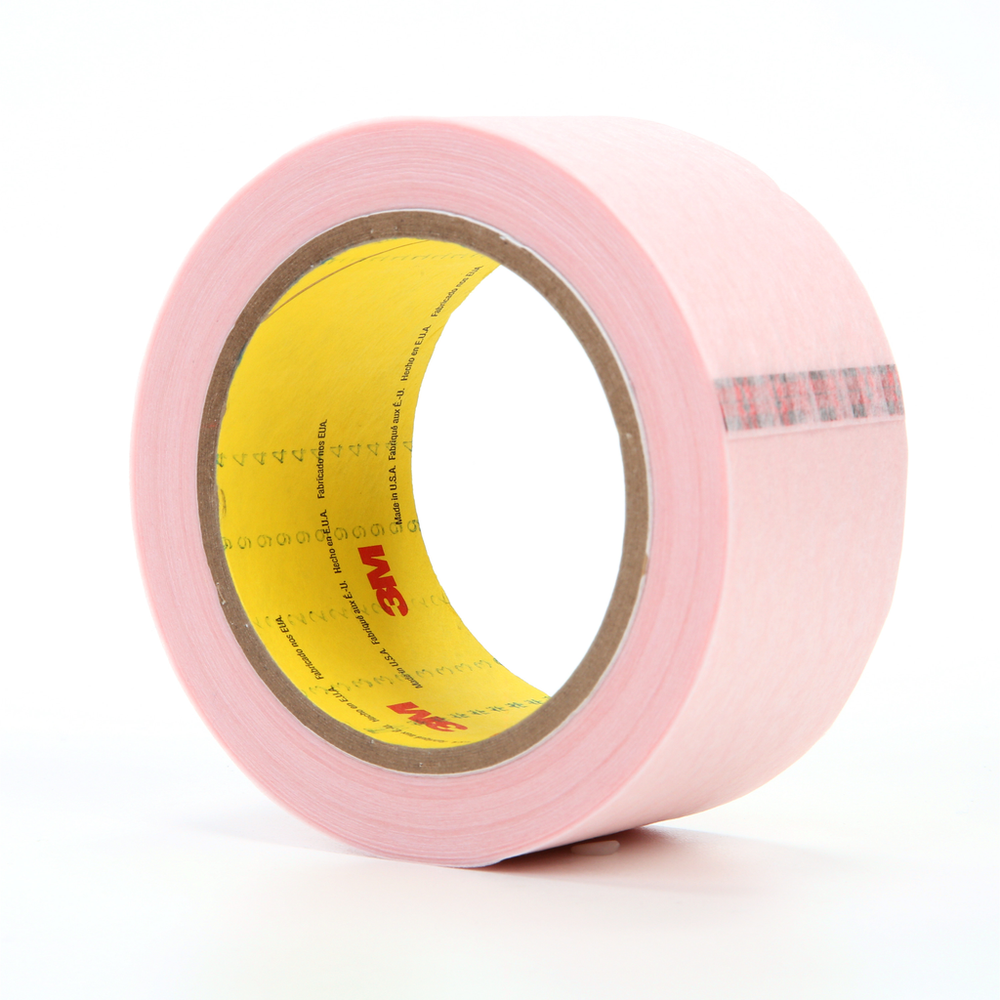

3M™ Venting Tape 3294, Pink, 3/4 in x 360 yd - 7010535623

SKU: 7010535623
MPN: 7010535623
Made to Order: For a lead time estimate, please send your request to [email protected]
3M ID: CY998783831
5 Digit UPC: #VALUE!
$197.56 each
Hurry up! Current stock:

Product Description

3M™ Venting Tape 3294 is a pink non-woven, synthetic backing with a strip-coated low-tack pressure sensitive acrylic adhesive for use in various venting applications requiring high outgassing rates.

Features

  • Commonly used for outgas venting in appliance manufacturing
  • Adhesive is strip-coated so uncoated areas have higher permeability to help minimize foaming voids
  • Features a unique non-woven conformable backing that has high air/gas permeability
  • Meets most outgassing requirements for foam-in-place insulation processes
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Backing (Carrier) MaterialRayon
Overall Length (Metric)329.18
Total Tape Thickness without Liner (Imperial)5.0
Overall Thickness (Imperial) UOMmil
Adhesive TypeAcrylic
Maximum Operating Temperature (Fahrenheit)120.0
Overall Thickness (Imperial)5.0
Maximum Operating Temperature (Celsius)49.0
Shelf Life in Months (From Date of Manufacture)18.0
Adhesion Strength (Imperial)9.0
Overall Length (Imperial)360.0
Product ColorPink
Product FormRoll
Backing Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMyd
Product TypeTape
Total Tape Thickness without Liner (Metric)0.13
Backing Thickness (Imperial)4.0
Backing Thickness (Metric)0.1
Total Tape Thickness without Liner (Imperial) UOMmil
Shelf Life in Months (From Date of Manufacture) UOMMonths
Overall Width (Metric)19.05
Adhesion Strength (Metric)9.9
Adhesion Strength (Metric) UOMN/100mm
Elongation at Break15%
IndustriesAppliance
Tensile Strength (Metric) UOMN/100mm
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMm
Number of Adhesive SidesSingle-sided
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Overall Width (Metric) UOMmm
Overall Width (Imperial)0.75
Total Tape Thickness without Liner (Metric) UOMmm
Liner ColorPink
Tensile Strength (Metric)14.0
Backing Thickness (Imperial) UOMmil
Liner MaterialAcrylic
Maximum Operating Temperature (Fahrenheit) UOMDegree
ApplicationOutgas Venting in Appliances
Backing MaterialNon-woven
