3M Products & Supplies

3M™ Venting Tape 3294, Pink, 1 in x 36 yd, 5 mil, 36 Roll/Case - 7100009843

Sold As: 36-Pack
SKU: 7100009843
MPN: 7100009843
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200266669
3M ID: 70006209327
5 Digit UPC: 26666
$903.56 ($25.10 / Count)
Hurry up! Current stock:

Product Description

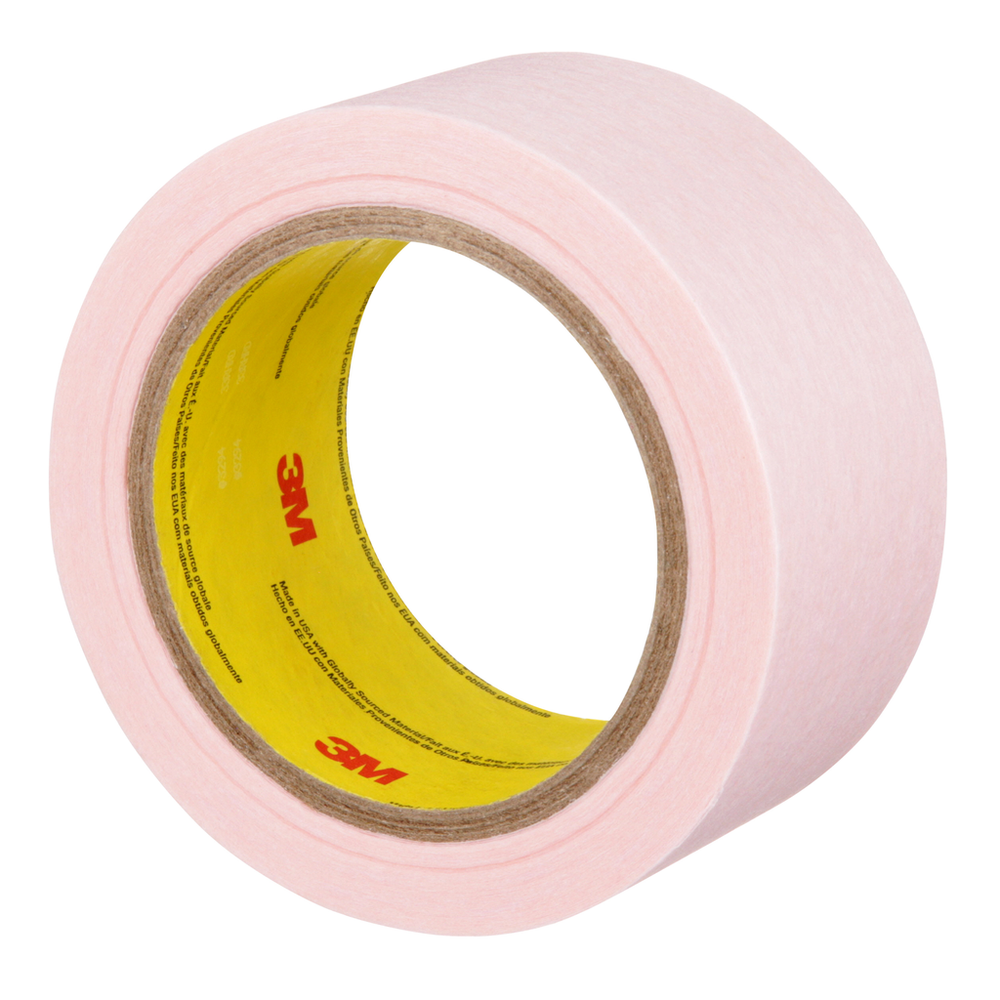

3M™ Venting Tape 3294 is a pink non-woven, synthetic backing with a strip-coated low-tack pressure sensitive acrylic adhesive for use in various venting applications requiring high outgassing rates.

Features

  • Adhesive is strip-coated so uncoated areas have higher permeability to help minimize foaming voids

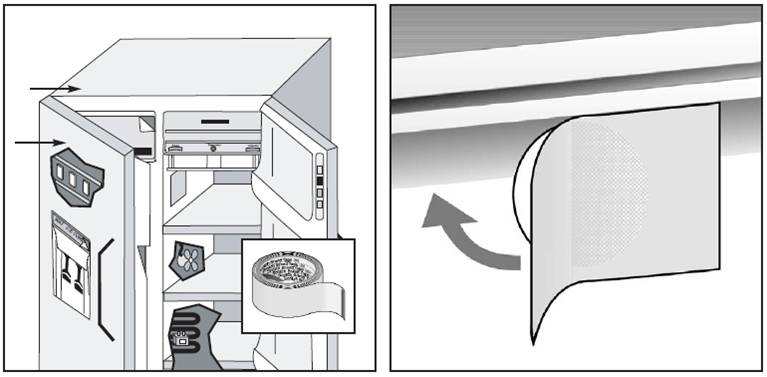

  • Commonly used for outgas venting in appliance manufacturing
  • Meets most outgassing requirements for foam-in-place insulation processes
  • Features a unique non-woven conformable backing that has high air/gas permeability
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Maximum Operating Temperature (Celsius)49.0
Overall Height (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Height (Imperial)4.0
Total Tape Thickness without Liner (Metric)0.13
Backing Thickness (Imperial)4.0
Backing (Carrier) MaterialNon-woven
Units per Case UOMRoll
Overall Width (Imperial) UOMin
Back Side Adhesive Thickness (Metric)0.1
Product FormRoll
Overall Length (Metric) UOMm
Product ColorPink
Adhesion Strength (Imperial)9.0
Backing MaterialNon-woven
Overall Thickness (Imperial)5.0
ApplicationOutgas Venting in Appliances
Overall Height (Metric)0.1
Liner MaterialAcrylic
Total Tape Thickness without Liner (Metric) UOMmm
Liner ColorPink
Total Tape Thickness without Liner (Imperial)5.0
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Backing Thickness (Metric)0.1
Overall Width (Metric)2.5
Maximum Operating Temperature (Fahrenheit)120.0
Overall Length (Imperial) UOMyd
Shelf Life in Months (From Date of Manufacture)18.0
Shelf Life in Months (From Date of Manufacture) UOMMonths
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)36.0
Overall Length (Metric)32.9
Adhesion Strength (Metric) UOMN/100mm
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesive TypeAcrylic
Number of Adhesive SidesSingle-sided
Adhesion Strength (Metric)9.9
Elongation at Break15%
Tensile Strength (Metric) UOMN/100mm
Tensile Strength (Metric)14.0
Overall Thickness (Imperial) UOMmil
Overall Width (Metric) UOMcm
Back Side Adhesive Thickness (Metric) UOMmm
Overall Height (Imperial) UOMmil
Units per Case36.0
Backing Thickness (Metric) UOMmm
Backing Thickness (Imperial) UOMmil
IndustriesAppliance
Product TypeTape
Overall Width (Imperial)1.0
