3M Products & Supplies

3M™ Venting Tape 3294, Pink, 2 in x 36 yd, 5 mil, 24 Roll/Case - 7000048712

Sold As: 24-Pack
SKU: 7000048712
MPN: 7000048712
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200266645
3M ID: 70006209343
5 Digit UPC: 26664
$1,204.75 ($50.20 / Count)
Hurry up! Current stock:

Product Description

3M™ Venting Tape 3294 is a pink non-woven, synthetic backing with a strip-coated low-tack pressure sensitive acrylic adhesive for use in various venting applications requiring high outgassing rates.

Features

  • Adhesive is strip-coated so uncoated areas have higher permeability to help minimize foaming voids
  • Meets most outgassing requirements for foam-in-place insulation processes

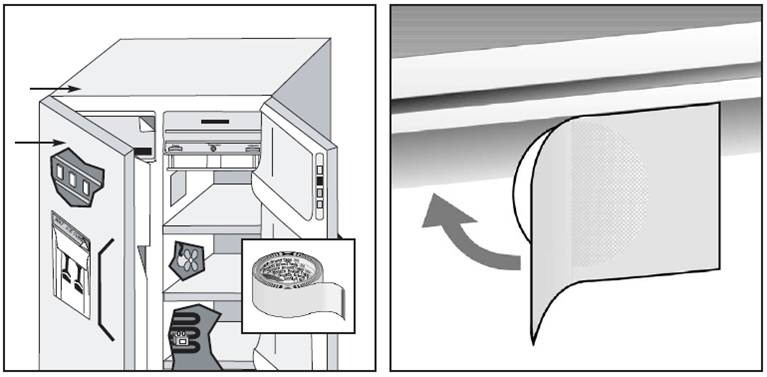

  • Commonly used for outgas venting in appliance manufacturing
  • Features a unique non-woven conformable backing that has high air/gas permeability
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginUnited States
Total Tape Thickness without Liner (Metric)0.13
Backing MaterialNon-woven
Backing Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric) UOMm
Number of Adhesive SidesSingle-sided
Overall Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Liner ColorPink
Adhesion Strength (Imperial)9.0
Overall Width (Metric) UOMmm
Tensile Strength (Metric)14.0
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Overall Thickness (Imperial)5.0
Units per Case24.0
Backing (Carrier) MaterialNon-woven
Maximum Operating Temperature (Fahrenheit)120.0
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Adhesion Strength (Metric) UOMN/100mm
ApplicationOutgas Venting in Appliances
Shelf Life in Months (From Date of Manufacture) UOMMonths
Product TypeTape
Product ColorPink
Overall Length (Imperial)36.0
Adhesion Strength (Metric)9.9
Backing Thickness (Metric) UOMmm
Shelf Life in Months (From Date of Manufacture)18.0
Liner MaterialAcrylic
Elongation at Break15%
Overall Width (Imperial)2.0
Adhesive TypeAcrylic
Product FormRoll
Units per Case UOMRoll
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing Thickness (Imperial)4.0
Overall Length (Metric)32.9
Total Tape Thickness without Liner (Imperial)5.0
Back Side Adhesive Thickness (Metric) UOMmm
Overall Width (Metric)50.8
Back Side Adhesive Thickness (Metric)0.1
Maximum Operating Temperature (Celsius)49.0
Backing Thickness (Metric)0.1
Tensile Strength (Metric) UOMN/100mm
IndustriesAppliance
Overall Width (Imperial) UOMin
