3M Products & Supplies

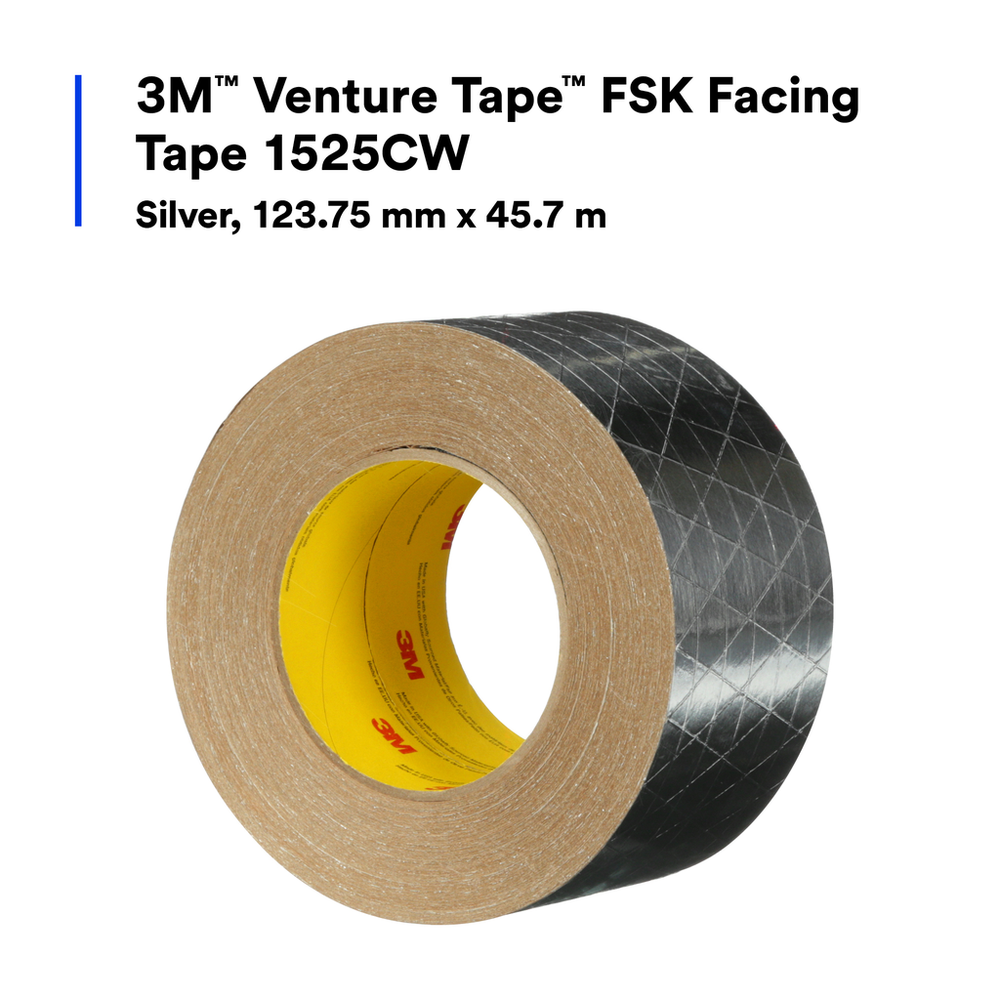

3M™ Venture Tape™ FSK Facing Tape 1525CW, Silver, 123.75 mm x 45.7 m, 8 Rolls/Case - 7100043968

Sold As: 8-Pack
SKU: 7100043968
MPN: 7100043968
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128955888
3M ID: 70008906201
5 Digit UPC: 95588
$274.67 ($34.33 / Count)
Hurry up! Current stock:

Product Description

3M™ FSK Facing Tape 1525CW is an adhesive tape that is used for sealing and patching FSK-faced duct wrap insulation, as well as a vapor seal for reinforced aluminum faced fiberglass, mineral wool thermal insulation, and sheet metal. Made with foil/scrim/kraft (FSK) lamination that is coated with a solvent acrylic, pressure-sensitive adhesive, this tape bonds and seals at temperatures as low as -10 °F (-23 °C). While designed for cold weather, it also offers excellent performance in demanding heat and humidity conditions. It easily conforms to irregular surfaces and shapes and offers easy removal for a simple application process. This tape meets the UL723 flame/smoke rating, as well as the ASTM specification C1136, Type II and IV, for safe use. For best results, store tape in a cool, dry environment. Achieve a durable seal during demanding and cold weather applications with 3M™ FSK Facing Tape 1525CW.

Features

  • Foil, scrim and kraft laminate backing for use on fibrous and sheet metal ducts
  • High puncture and tear resistance ensures long life and durability in a variety of applications and conditions

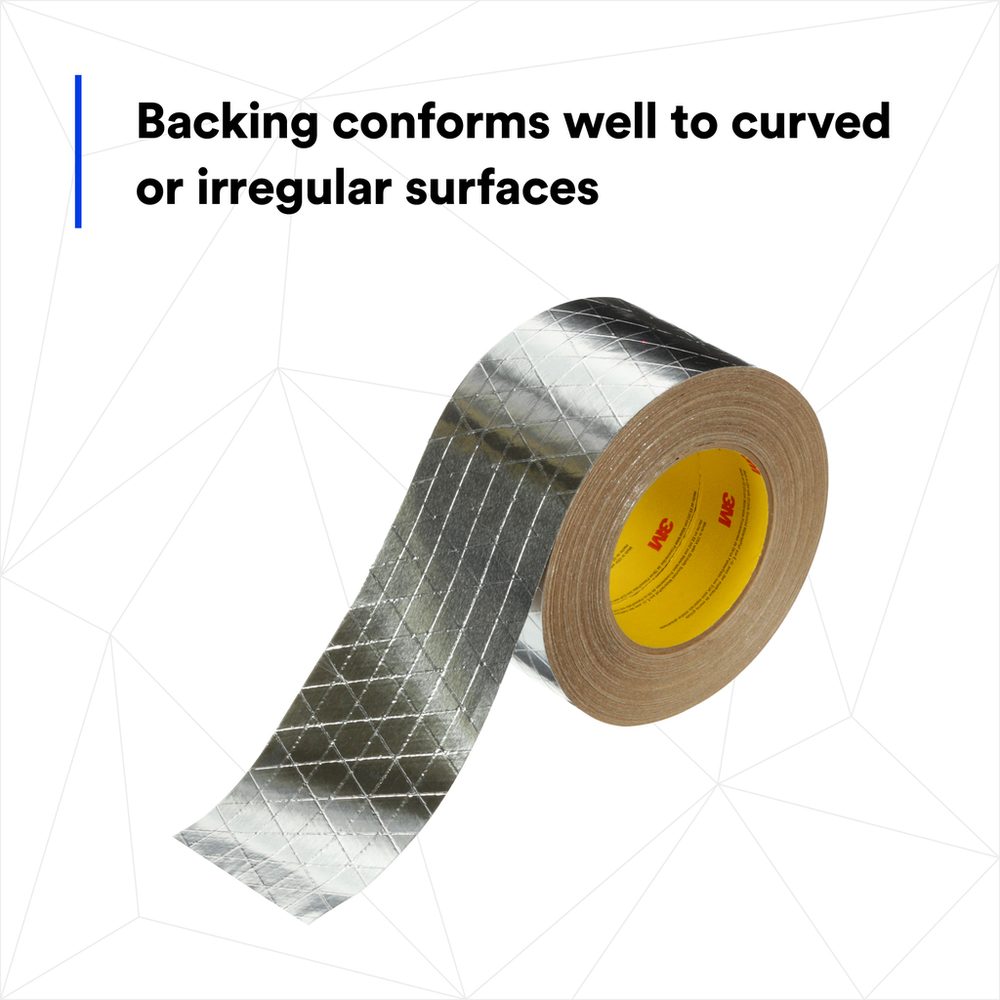

  • Flexible backing conforms well to curved or irregular surfaces
  • Cold weather acrylic adhesive is specifically designed for cold weather conditions
  • Easy to install on site without special tools or application methods
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Length (Imperial)50.0
Minimum Operating Temperature (Fahrenheit)-40.0
Maximum Operating Temperature (Fahrenheit)240.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)123.75
Minimum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric) UOMN/100mm
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Imperial)4.0
Backing (Carrier) Thickness (Metric)0.1
Overall Length (Metric)45.7
Tensile Strength (Metric)68.3
Overall Width (Imperial)4.87
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial) UOMmil
Backing MaterialFoil Scrim Kraft
ApplicationExterior Seams & Joints; Interior Seams & Joints; Sealing HVAC & Duct Work
Elongation at Break2
Total Tape Thickness without Liner (Imperial)5.5
Adhesive TypeAcrylic
Overall Length (Metric) UOMm
Primary LinerPolycoated Kraft
Tensile Strength (Imperial)39.0
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric)0.14
Product ColorSilver
Minimum Operating Temperature (Celsius)-40.0
Maximum Operating Temperature (Celsius)116.0
Overall Length (Imperial) UOMyd
Tensile Strength (Imperial) UOMlb/in
Backing (Carrier) Thickness (Metric) UOMmm
