3M Products & Supplies

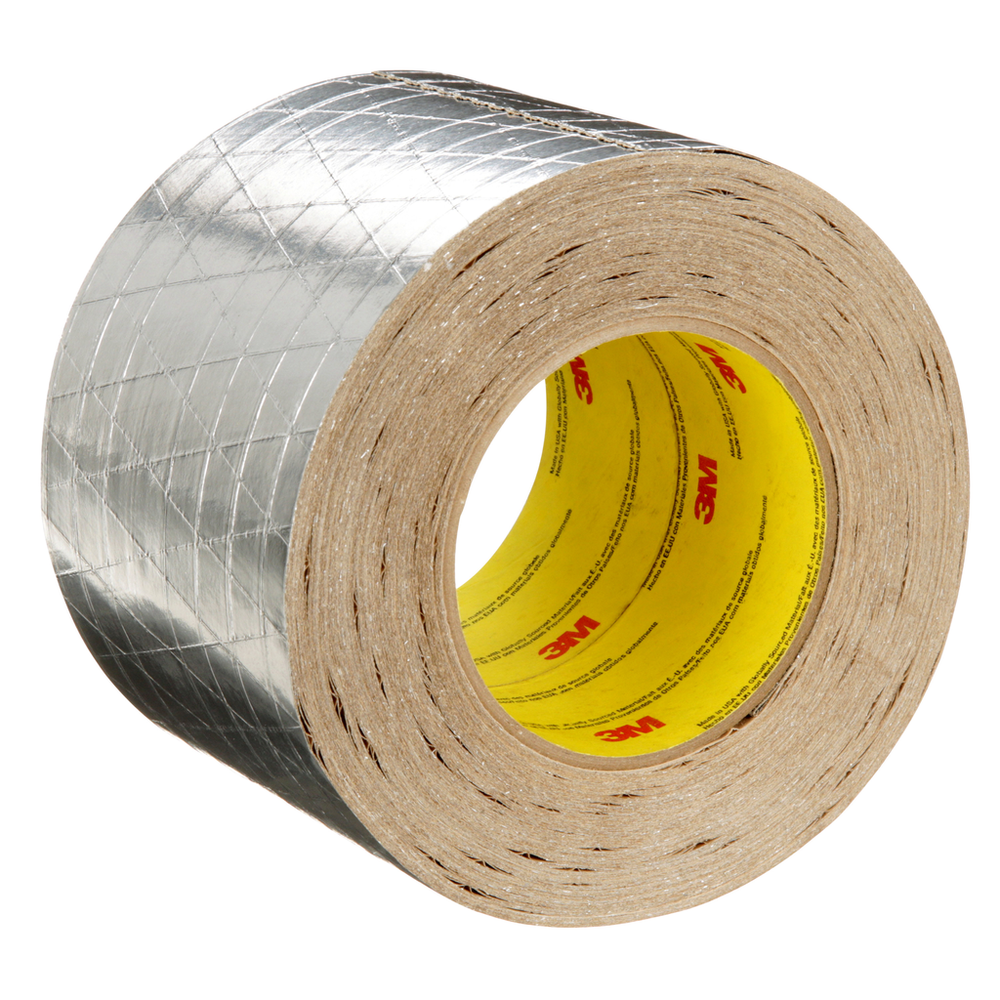

3M™ Venture Tape™ FSK Facing Tape 1525CW, Silver, 99 mm x 45.7 m, 12 Rolls/Case - 7100043850

Sold As: 12-Pack
SKU: 7100043850
MPN: 7100043850
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00750351500154
3M ID: 70008906177
5 Digit UPC: 50015
$328.93 ($27.41 / Count)
Hurry up! Current stock:

Product Description

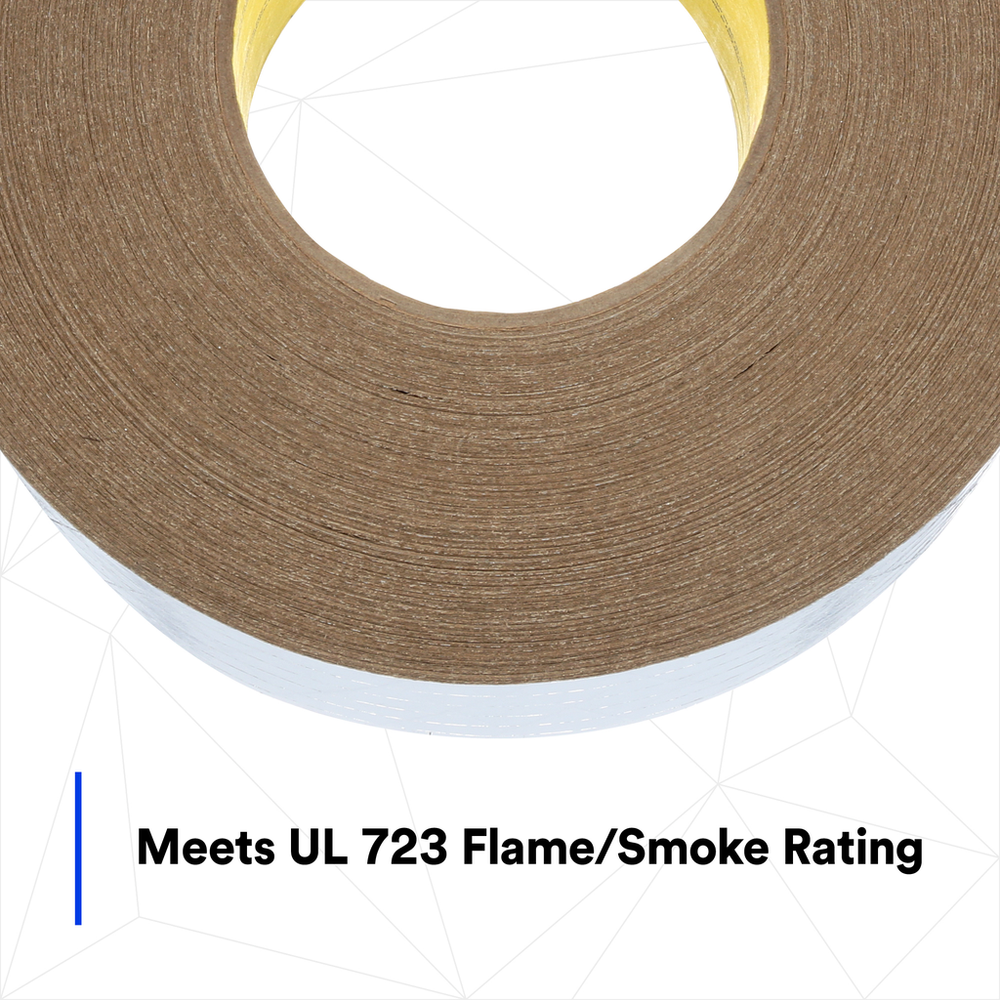

3M™ FSK Facing Tape 1525CW is an adhesive tape that is used for sealing and patching FSK-faced duct wrap insulation, as well as a vapor seal for reinforced aluminum faced fiberglass, mineral wool thermal insulation, and sheet metal. Made with foil/scrim/kraft (FSK) lamination that is coated with a solvent acrylic, pressure-sensitive adhesive, this tape bonds and seals at temperatures as low as -10 °F (-23 °C). While designed for cold weather, it also offers excellent performance in demanding heat and humidity conditions. It easily conforms to irregular surfaces and shapes and offers easy removal for a simple application process. This tape meets the UL723 flame/smoke rating, as well as the ASTM specification C1136, Type II and IV, for safe use. For best results, store tape in a cool, dry environment. Achieve a durable seal during demanding and cold weather applications with 3M™ FSK Facing Tape 1525CW.

Features

  • Easy to install on site without special tools or application methods

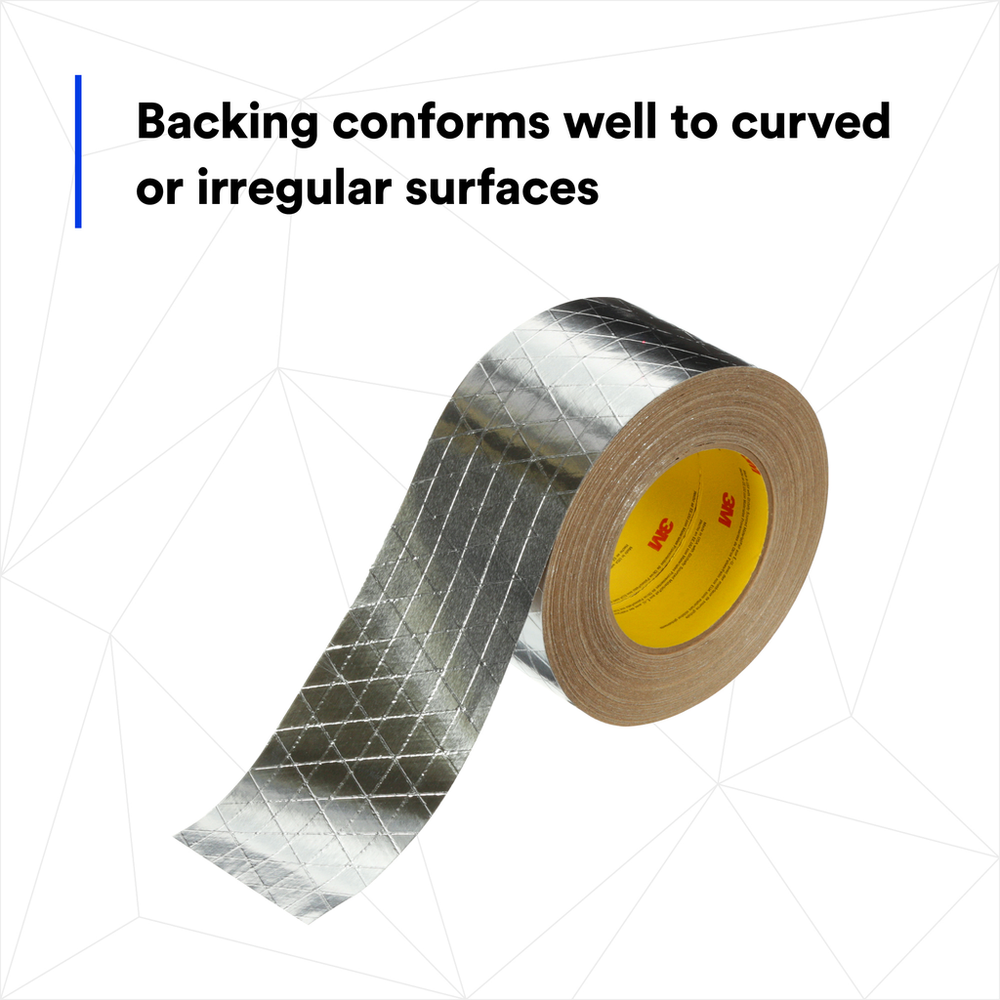

  • Flexible backing conforms well to curved or irregular surfaces

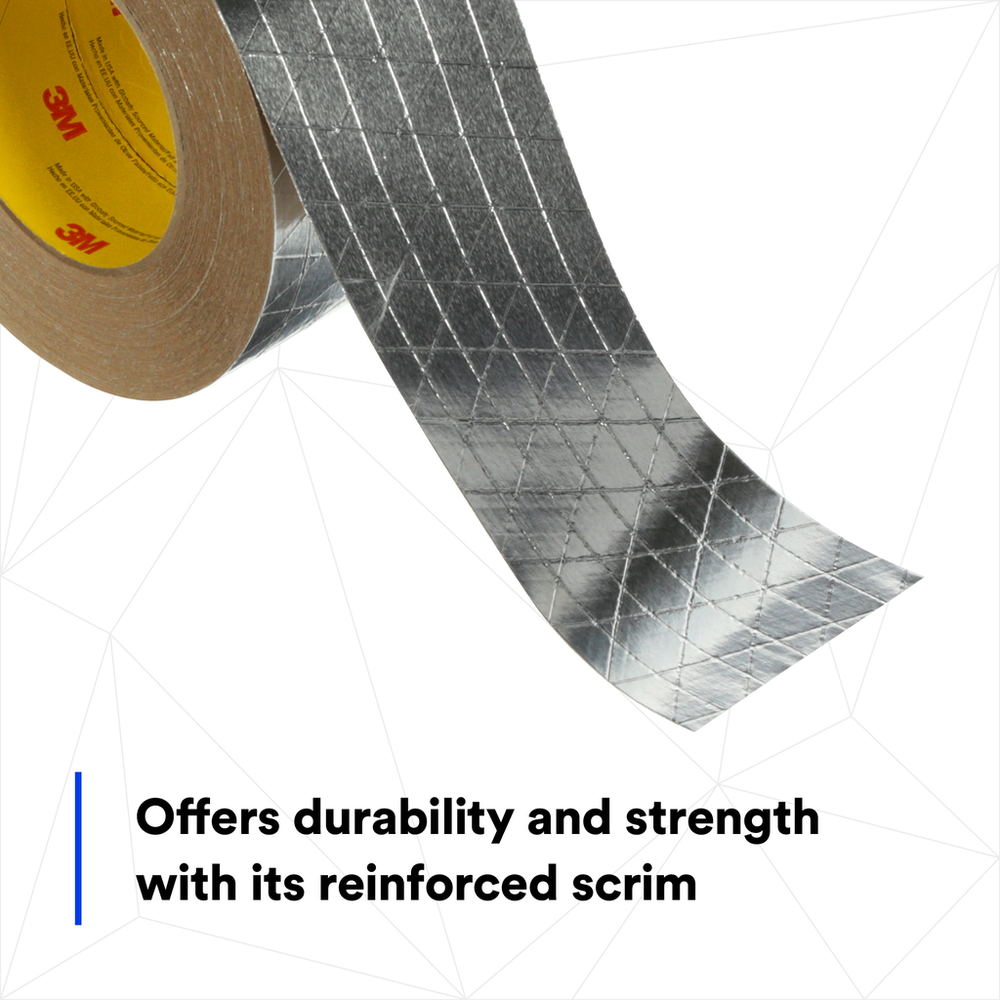

  • High puncture and tear resistance ensures long life and durability in a variety of applications and conditions
  • Cold weather acrylic adhesive is specifically designed for cold weather conditions
  • Foil, scrim and kraft laminate backing for use on fibrous and sheet metal ducts
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Metric) UOMN/100mm
Minimum Operating Temperature (Fahrenheit)-40.0
Product ColorSilver
Maximum Operating Temperature (Fahrenheit)240.0
Minimum Operating Temperature (Celsius)-40.0
Backing (Carrier) Thickness (Metric) UOMmm
Adhesive TypeAcrylic
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric)45.7
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial)39.0
Overall Length (Imperial) UOMyd
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Metric)0.14
Maximum Operating Temperature (Celsius) UOMDegree
Backing MaterialFoil Scrim Kraft
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)5.5
Maximum Operating Temperature (Celsius)116.0
Overall Length (Metric) UOMm
Minimum Operating Temperature (Fahrenheit) UOMDegree
ApplicationExterior Seams & Joints; Interior Seams & Joints; Sealing HVAC & Duct Work
Overall Length (Imperial)50.0
Overall Width (Metric)99.0
Backing (Carrier) Thickness (Imperial)4.0
Elongation at Break2
Overall Width (Metric) UOMmm
Overall Width (Imperial)2514.6
Primary LinerPolycoated Kraft
Tensile Strength (Metric)68.3
Backing (Carrier) Thickness (Metric)0.1
