3M Products & Supplies

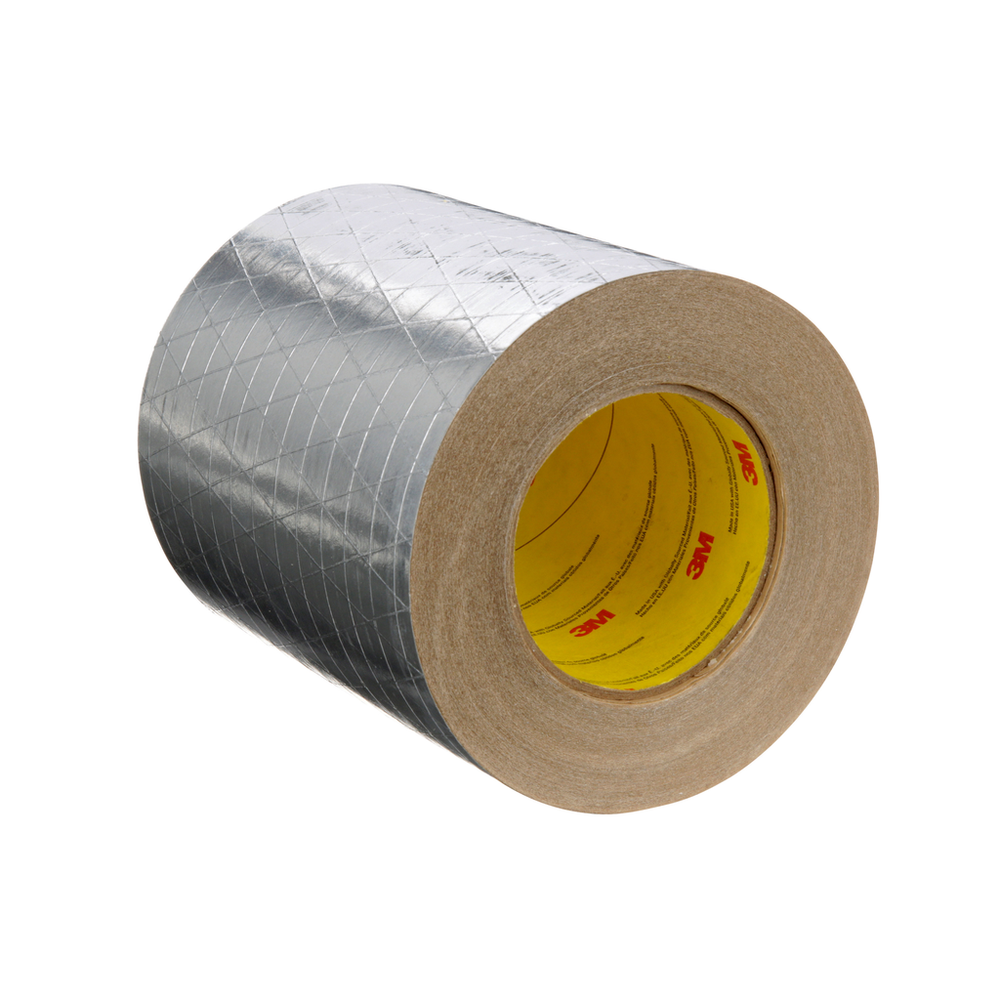

3M™ Venture Tape™ FSK Facing Tape 1525CW, Silver, 6 in x 50 yd, 8 Rolls/Case - 7100043912

Sold As: 8-Pack
SKU: 7100043912
MPN: 7100043912
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128955871
3M ID: 70008906193
5 Digit UPC: 95587
$438.57 ($54.82 / Count)
Hurry up! Current stock:

Product Description

3M™ FSK Facing Tape 1525CW is an adhesive tape that is used for sealing and patching FSK-faced duct wrap insulation, as well as a vapor seal for reinforced aluminum faced fiberglass, mineral wool thermal insulation, and sheet metal. Made with foil/scrim/kraft (FSK) lamination that is coated with a solvent acrylic, pressure-sensitive adhesive, this tape bonds and seals at temperatures as low as -10 °F (-23 °C). While designed for cold weather, it also offers excellent performance in demanding heat and humidity conditions. It easily conforms to irregular surfaces and shapes and offers easy removal for a simple application process. This tape meets the UL723 flame/smoke rating, as well as the ASTM specification C1136, Type II and IV, for safe use. For best results, store tape in a cool, dry environment. Achieve a durable seal during demanding and cold weather applications with 3M™ FSK Facing Tape 1525CW.

Features

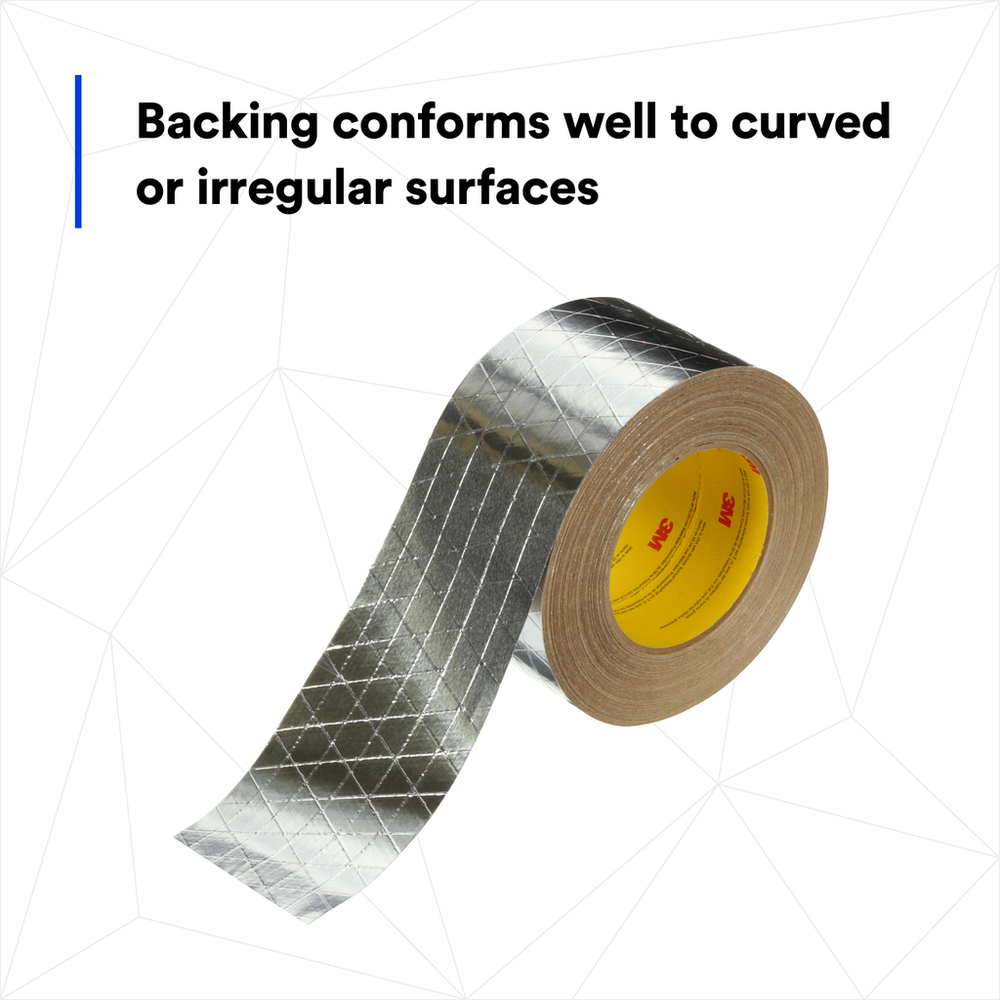

  • Flexible backing conforms well to curved or irregular surfaces

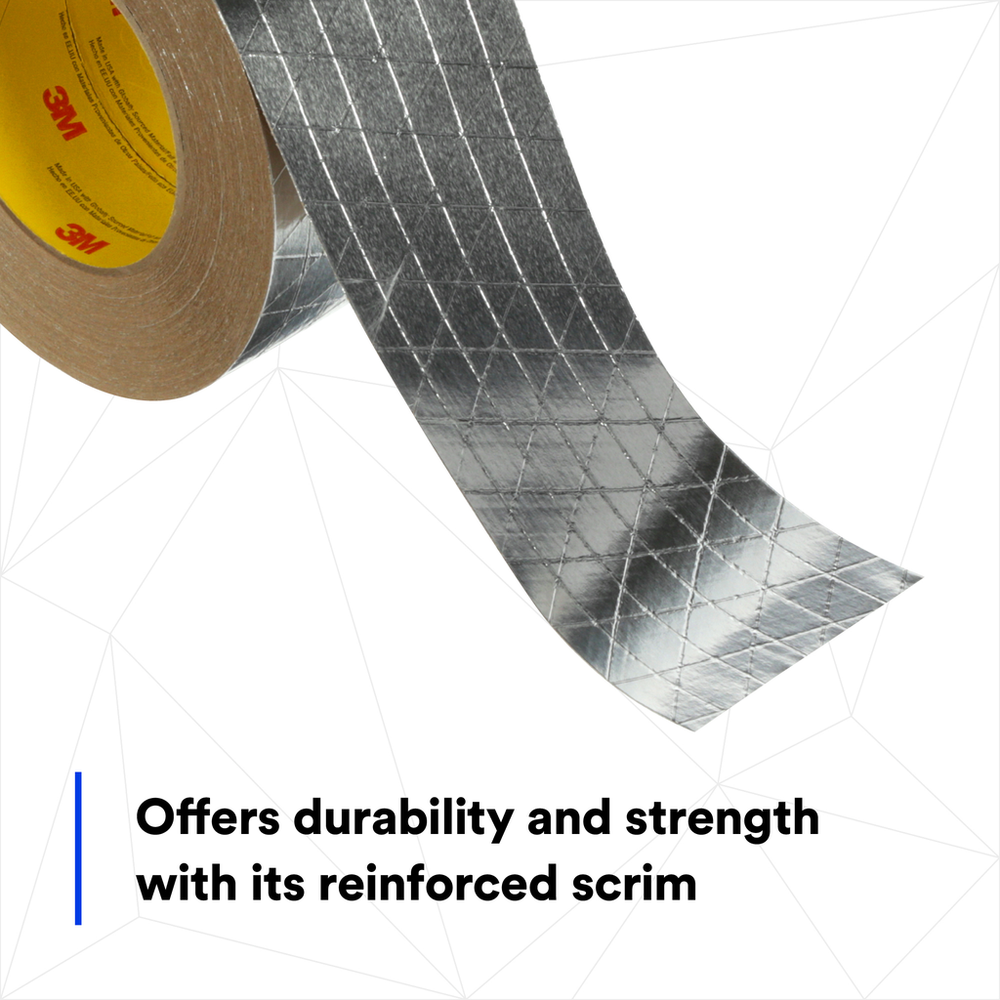

  • High puncture and tear resistance ensures long life and durability in a variety of applications and conditions
  • Easy to install on site without special tools or application methods

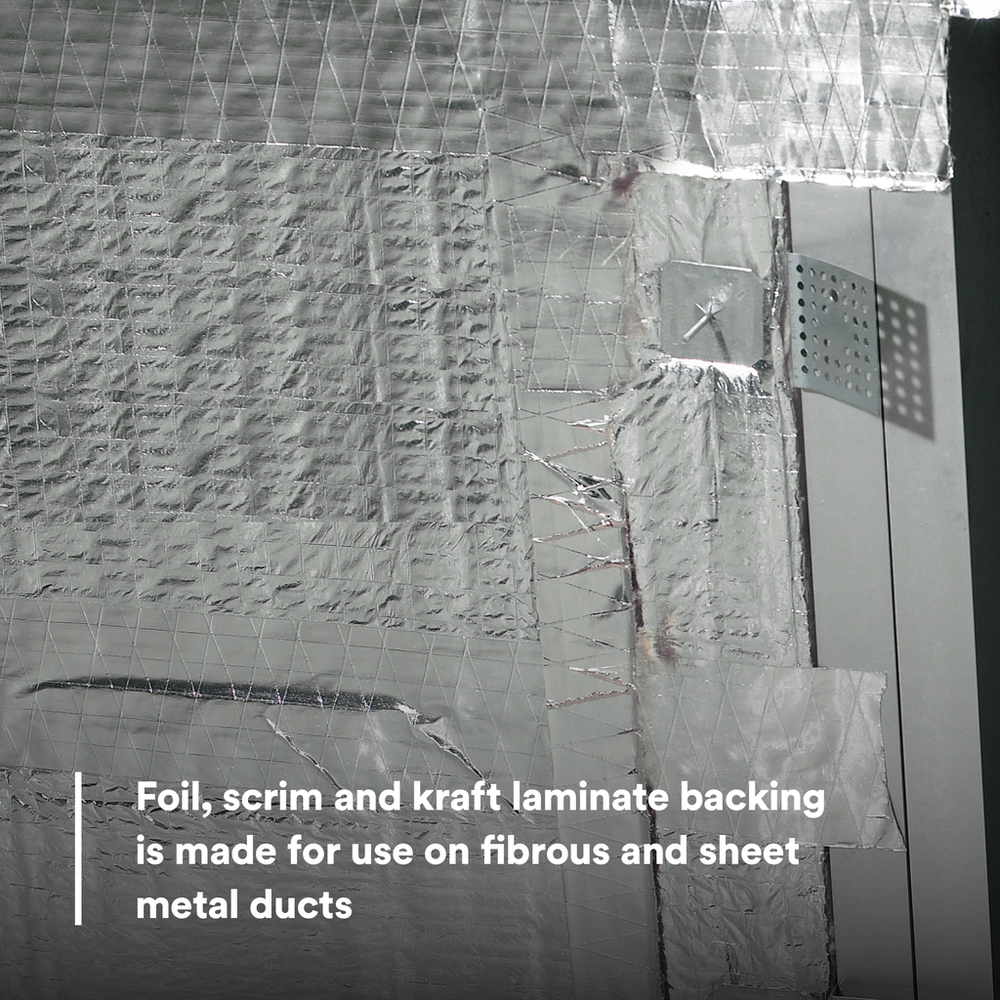

  • Foil, scrim and kraft laminate backing for use on fibrous and sheet metal ducts
  • Cold weather acrylic adhesive is specifically designed for cold weather conditions
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Metric) UOMm
Product ColorSilver
Tensile Strength (Imperial) UOMlb/in
Tensile Strength (Metric) UOMN/100mm
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Metric)0.1
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Celsius)116.0
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Backing MaterialFoil Scrim Kraft
ApplicationExterior Seams & Joints; Interior Seams & Joints; Sealing HVAC & Duct Work
Minimum Operating Temperature (Fahrenheit)-40.0
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Imperial)50.0
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)5.5
Primary LinerPolycoated Kraft
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial)4.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeAcrylic
Tensile Strength (Imperial)39.0
Overall Width (Metric) UOMmm
Overall Width (Imperial)6.0
Tensile Strength (Metric)68.3
Maximum Operating Temperature (Fahrenheit)240.0
Overall Width (Metric)152.4
Overall Length (Metric)45.72
Total Tape Thickness without Liner (Metric)0.14
Maximum Operating Temperature (Fahrenheit) UOMDegree
Elongation at Break2
