3M Products & Supplies

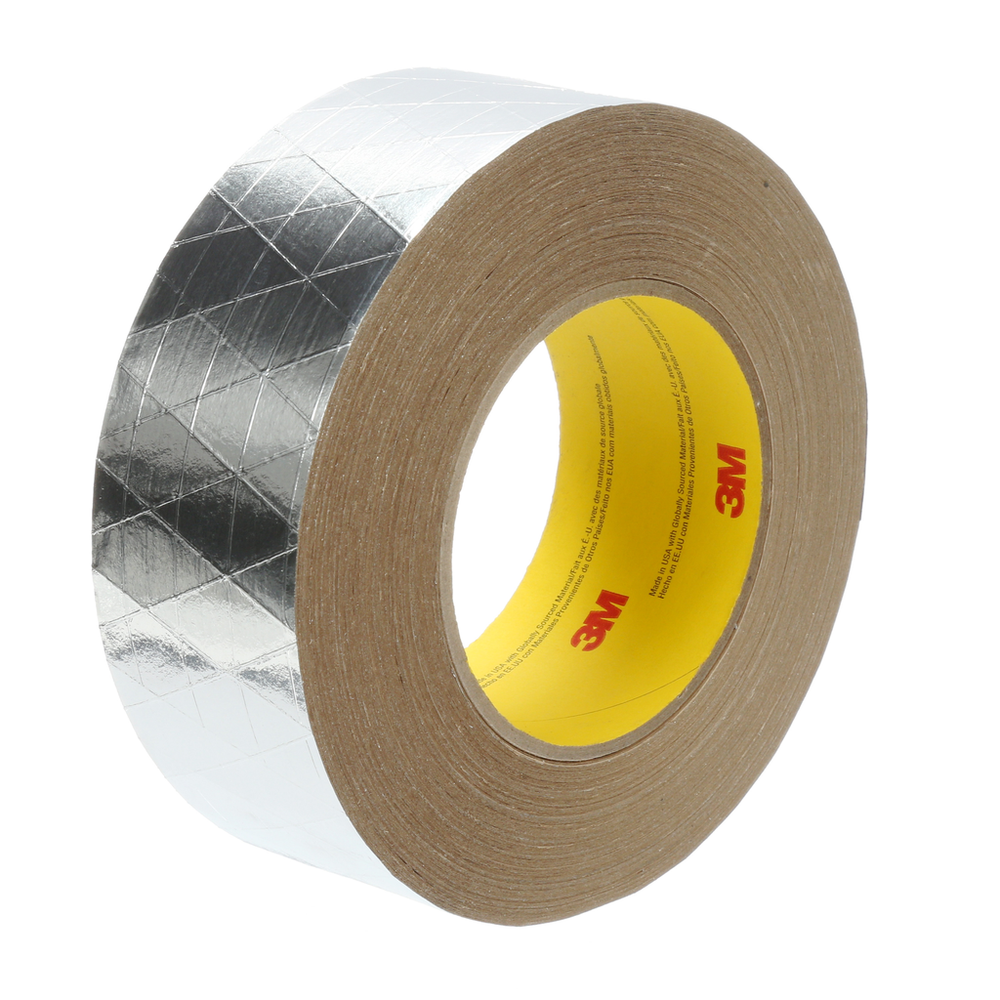

3M™ Venture Tape™ FSK Facing Tape 1525CW, Silver, 48 mm x 45.7 m, 24 Rolls/Case - 7100043849

Sold As: 24-Pack
SKU: 7100043849
MPN: 7100043849
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00750351500147
3M ID: 70008906219
5 Digit UPC: 50014
$319.32 ($13.30 / Count)
Hurry up! Current stock:

Product Description

3M™ FSK Facing Tape 1525CW is an adhesive tape that is used for sealing and patching FSK-faced duct wrap insulation, as well as a vapor seal for reinforced aluminum faced fiberglass, mineral wool thermal insulation, and sheet metal. Made with foil/scrim/kraft (FSK) lamination that is coated with a solvent acrylic, pressure-sensitive adhesive, this tape bonds and seals at temperatures as low as -10 °F (-23 °C). While designed for cold weather, it also offers excellent performance in demanding heat and humidity conditions. It easily conforms to irregular surfaces and shapes and offers easy removal for a simple application process. This tape meets the UL723 flame/smoke rating, as well as the ASTM specification C1136, Type II and IV, for safe use. For best results, store tape in a cool, dry environment. Achieve a durable seal during demanding and cold weather applications with 3M™ FSK Facing Tape 1525CW.

Features

  • Cold weather acrylic adhesive is specifically designed for cold weather conditions
  • Easy to install on site without special tools or application methods
  • Foil, scrim and kraft laminate backing for use on fibrous and sheet metal ducts
  • Flexible backing conforms well to curved or irregular surfaces
  • High puncture and tear resistance ensures long life and durability in a variety of applications and conditions
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Length (Metric)45.7
ApplicationExterior Seams & Joints; Interior Seams & Joints; Sealing HVAC & Duct Work
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric)0.1
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Length (Imperial)54.68
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Tensile Strength (Metric)68.3
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Imperial)4.0
Overall Width (Metric)48.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)240.0
Overall Width (Imperial)1.89
Maximum Operating Temperature (Celsius)116.0
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Product ColorSilver
Elongation at Break2
Overall Length (Metric) UOMm
Backing MaterialFoil Scrim Kraft
Tensile Strength (Imperial)39.0
Total Tape Thickness without Liner (Metric)0.14
Total Tape Thickness without Liner (Imperial)5.5
Minimum Operating Temperature (Celsius)-40.0
Adhesive TypeAcrylic
Primary LinerPolycoated Kraft
Total Tape Thickness without Liner (Metric) UOMmm
