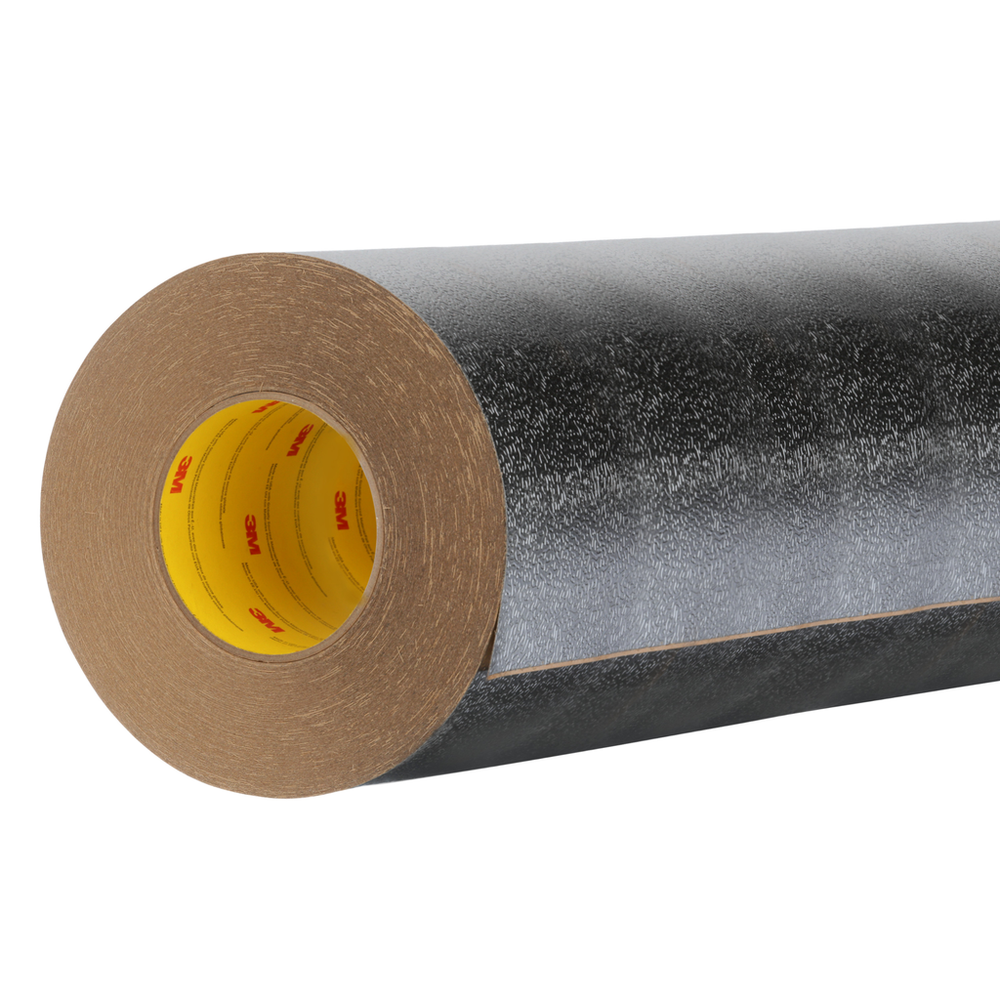

3M™ Ventureclad™ Enhanced Metal Jacketing 1577, CWE-EMJ, 46 in X 25 yd, 1 Roll/Case - 7100311994

SKU: 7100311994
MPN: 7100311994
Stock Item: Stock items typically ship within 2-3 business days
UPC: 50068060005361
3M ID: 70011144337
$743.53 each
Hurry up! Current stock:

Product Description

3M™ VentureClad™ Enhanced Metal Jacketing 1577CWE-EMJ is an all-weather option for various jacketing applications. It offers high resistance to weathering, mold, UV and extreme environmental conditions. This multi-layered laminate tape is designed to provide zero permeability and act as a vapor barrier The additional clear coat layer of protection makes it more resistant and durable. Zero-permeable jacketing for insulated HVAC ductwork and pipes to protect against moisture, mold, ultraviolet (UV), and extreme environmental conditions. Backed by a 10-year 3M warranty when applied per 3M installation guidelines. It comes in silver embossed.

Features

  • Bonds and seals in cold, hot and humid conditions as low as -10°F (-23°C) with service range of -40°F (-40°C) to248°F (120°C)
  • Designed to protect insulation materials, including fiberglass, polystyrene, mineral wool, elastomeric, phenolic foam, cellular glass, calcium silicate and conformable aerogel
  • Highly resistant to punctures and tears.
  • Quick and simple install with no specialized tools.
  • Available in an embossed finish with a wide range of widths and lengths
  • Protects against intrusion by vapor and chemical atmospheres as well as water, fungi, corrosion, oil and grease
Spec Sheet



Downloads

Specifications

Shelf Life730
Tensile Strength (Imperial)100.0
Back Side Adhesive Thickness (Imperial)0.0
Overall Length (Metric)22.86
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Backing MaterialMulti-layered Laminate
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric) UOMmm
ApplicationDuctwork; Exterior Seams & Joints; HVAC Maintenance; Insulation; Sealing HVAC & Duct Work
Total Tape Thickness without Liner (Metric)0.2286
Overall Length (Metric) UOMm
IndustriesCommercial, Construction, Food and Beverage, General Industrial, Industrial, MRO, Manufacturing, Marine, Military, Military and Government
Tensile Strength (Imperial) UOMlb/in
Overall Width (Imperial)46.0
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0
Shelf Life UOMMonth
Specifications MetASTM E84 (0/5 Flame/Smoke Rating), UL 723
Adhesive TypeAcrylic
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMyd
Tensile Strength (Metric)27.0
Total Tape Thickness without Liner (Imperial)9.0
Back Side Adhesive Thickness (Metric)0.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial) UOMin
Overall Width (Metric)1168.4
Primary LinerPolycoated Natural Kraft Paper
Tensile Strength (Metric) UOMN/25mm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)120.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Product ColorSilver
Overall Length (Imperial)25.0
Backing (Carrier) Thickness (Metric)0.15
Minimum Operating Temperature (Fahrenheit)-40.0
Backing (Carrier) Thickness (Imperial)6.0
Maximum Operating Temperature (Fahrenheit)248.0
