3M Products & Supplies

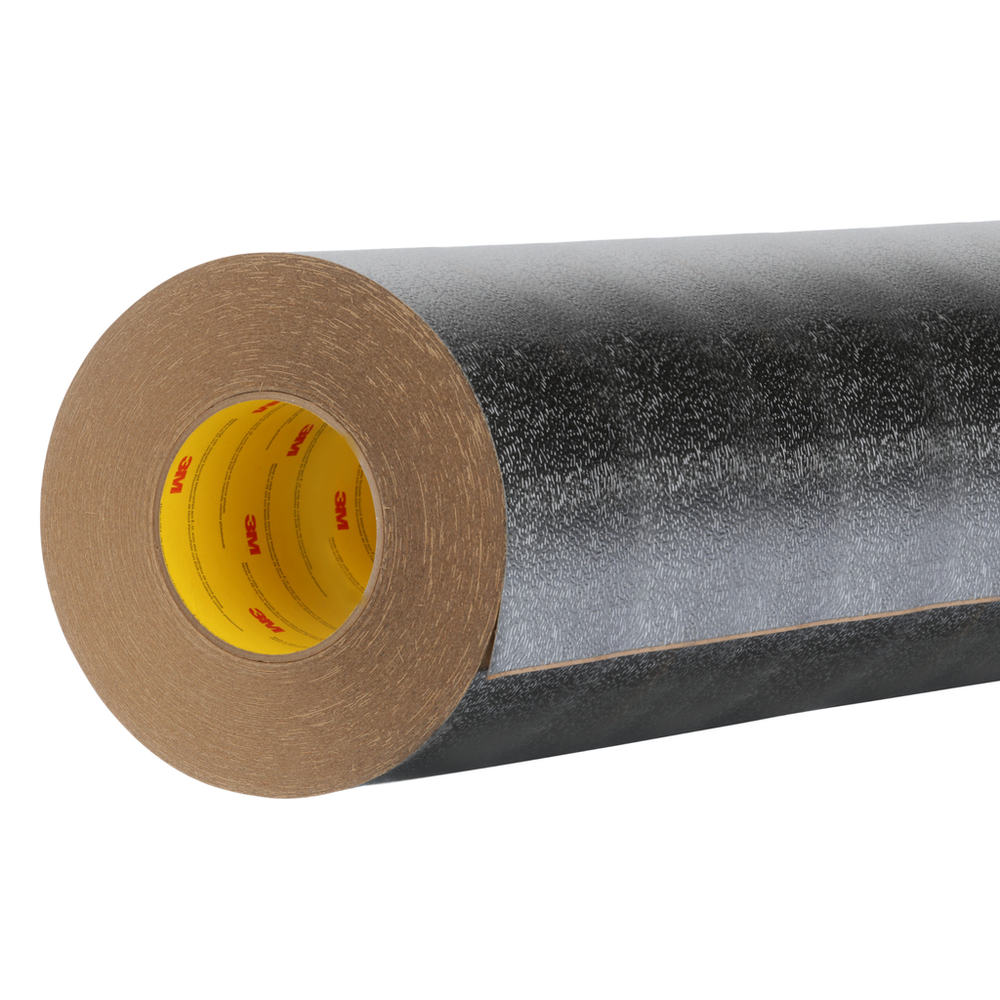

3M™ Ventureclad™ Enhanced Metal Jacketing 1579, CWE-EMJ, 46 in X 25 yd, 1 Roll/Case - 7100312039

SKU: 7100312039
MPN: 7100312039
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060005403
3M ID: 70011144386
$1,526.77 each
Hurry up! Current stock:

Product Description

3M™ VentureClad™ Enhanced Metal Jacketing 1579CWE-EMJ is an all-weather option for various jacketing applications. It offers high resistance to weathering, mold, UV and extreme environmental conditions. This multi-layered laminate tape is designed to provide zero permeability and act as a vapor barrier The additional clear coat layer of protection makes it more resistant and durable. Zero-permeable jacketing for insulated HVAC ductwork and pipes to protect against moisture, mold, ultraviolet (UV), and extreme environmental conditions. Backed by a 10-year 3M warranty when applied per 3M installation guidelines. It comes in silver embossed.

Features

  • Available in an embossed finish with a wide range of widths and lengths
  • Designed to protect insulation materials, including fiberglass, polystyrene, mineral wool, elastomeric, phenolic foam, cellular glass, calcium silicate and conformable aerogel
  • Bonds and seals in cold, hot and humid conditions as low as -10°F (-23°C) with service range of -40°F (-40°C) to248°F (120°C)
  • Quick and simple install with no specialized tools.
  • Protects against intrusion by vapor and chemical atmospheres as well as water, fungi, corrosion, oil and grease
  • Highly resistant to punctures and tears.
Spec Sheet



Downloads

Specifications

Shelf Life730
Backing MaterialMulti-layered, reinforced laminate
Overall Width (Metric) UOMmm
Shelf Life UOMMonth
IndustriesCommercial, Construction, Food and Beverage, General Industrial, Industrial, MRO, Manufacturing, Marine, Military, Military and Government
Primary LinerPolycoated Natural Kraft Paper
Overall Length (Imperial) UOMyd
Overall Width (Imperial) UOMin
Overall Length (Metric)22.86
Adhesive TypeAcrylic
Overall Width (Metric)1168.4
Overall Length (Imperial)25.0
Overall Length (Metric) UOMm
Country of OriginUnited States
Overall Width (Imperial)46.0
Product ColorSilver
Backing (Carrier) Thickness (Metric)0.38
Specifications MetASTM E84 (0/5 Flame/Smoke Rating), UL 723
Tensile Strength (Imperial)130.0
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Backing (Carrier) Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Metric)0.0
Backing (Carrier) Thickness (Imperial)15.0
Total Tape Thickness without Liner (Metric)0.406
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)16.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Imperial)0.0
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)-40.0
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Imperial) UOMlb/in
ApplicationDuctwork; Exterior Seams & Joints; HVAC Maintenance; Insulation; Sealing HVAC & Duct Work
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)120.0
Tensile Strength (Metric)36.0
Tensile Strength (Metric) UOMN/25mm
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)248.0
