3M Products & Supplies

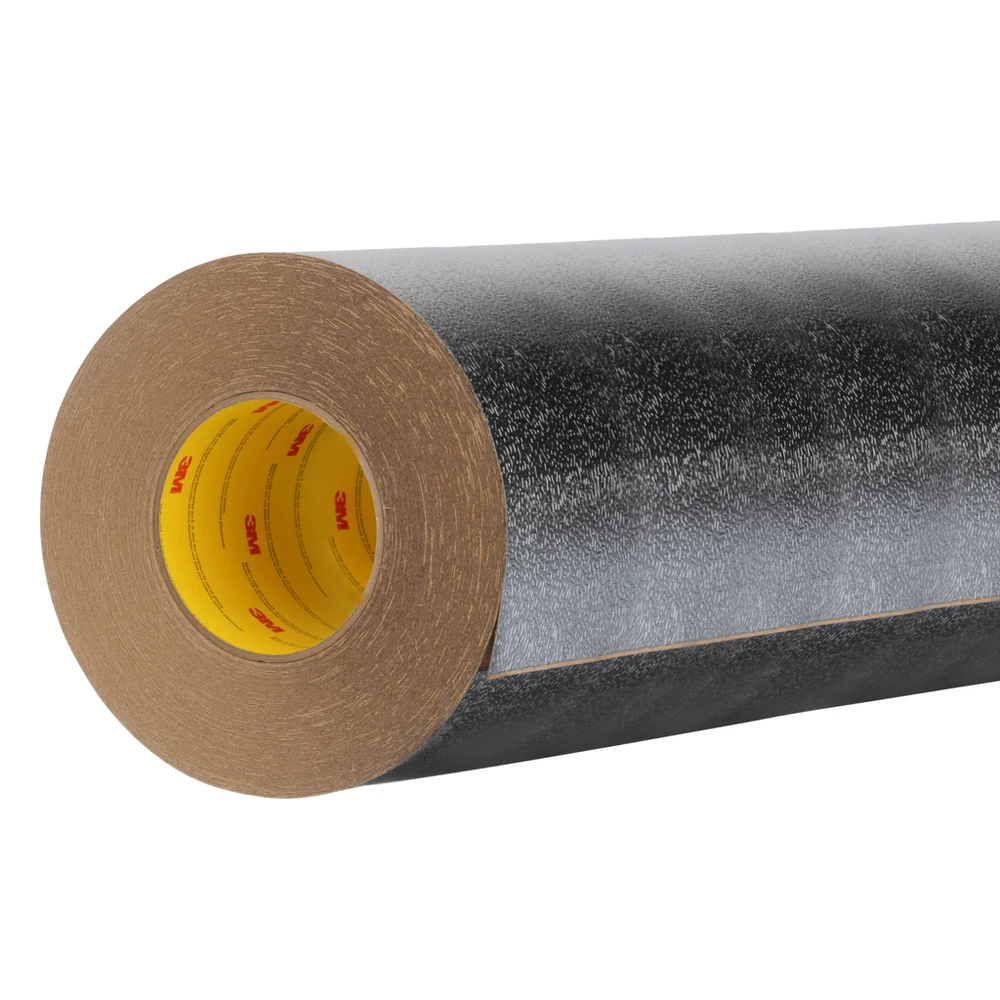

3M™ Ventureclad™ Enhanced Metal Jacketing 1579, CWE-EMJ, 35.5 in X 25 yd, 1 Roll/Case - 7100311571

SKU: 7100311571
MPN: 7100311571
For an accurate lead time please contact us
UPC: 00068060005397
3M ID: 70011144378
$1,161.68 each
Hurry up! Current stock:

Product Description

3M™ VentureClad™ Enhanced Metal Jacketing 1579CWE-EMJ is an all-weather option for various jacketing applications. It offers high resistance to weathering, mold, UV and extreme environmental conditions. This multi-layered laminate tape is designed to provide zero permeability and act as a vapor barrier The additional clear coat layer of protection makes it more resistant and durable. Zero-permeable jacketing for insulated HVAC ductwork and pipes to protect against moisture, mold, ultraviolet (UV), and extreme environmental conditions. Backed by a 10-year 3M warranty when applied per 3M installation guidelines. It comes in silver embossed.

Features

  • Protects against intrusion by vapor and chemical atmospheres as well as water, fungi, corrosion, oil and grease
  • Bonds and seals in cold, hot and humid conditions as low as -10°F (-23°C) with service range of -40°F (-40°C) to248°F (120°C)
  • Available in an embossed finish with a wide range of widths and lengths
  • Designed to protect insulation materials, including fiberglass, polystyrene, mineral wool, elastomeric, phenolic foam, cellular glass, calcium silicate and conformable aerogel
  • Highly resistant to punctures and tears.
  • Quick and simple install with no specialized tools.
Spec Sheet



Downloads

Specifications

Shelf Life730
Total Tape Thickness without Liner (Metric)0.406
Maximum Operating Temperature (Fahrenheit) UOMDegree
ApplicationDuctwork; Exterior Seams & Joints; HVAC Maintenance; Insulation; Sealing HVAC & Duct Work
Tensile Strength (Metric) UOMN/25mm
Total Tape Thickness without Liner (Imperial) UOMmil
Product ColorSilver
Minimum Operating Temperature (Fahrenheit) UOMDegree
Specifications MetASTM E84 (0/5 Flame/Smoke Rating), UL 723
Maximum Operating Temperature (Fahrenheit)248.0
Back Side Adhesive Thickness (Metric)0.0
Backing MaterialMulti-layered, reinforced laminate
Minimum Operating Temperature (Celsius)-40.0
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Tensile Strength (Imperial)130.0
Minimum Operating Temperature (Fahrenheit)-40.0
Backing (Carrier) Thickness (Imperial)15.0
Adhesive TypeAcrylic
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial)16.0
Country of OriginUnited States
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius)120.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)25.0
Overall Width (Metric)901.7
Back Side Adhesive Thickness (Imperial)0.0
Overall Width (Imperial)35.5
Tensile Strength (Metric)36.0
Minimum Operating Temperature (Celsius) UOMDegree
Primary LinerPolycoated Natural Kraft Paper
IndustriesCommercial, Construction, Food and Beverage, General Industrial, Industrial, MRO, Manufacturing, Marine, Military, Military and Government
Overall Length (Metric)22.86
Shelf Life UOMMonth
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.38
Tensile Strength (Imperial) UOMlb/in
Backing (Carrier) Thickness (Metric) UOMmm
