3M Products & Supplies

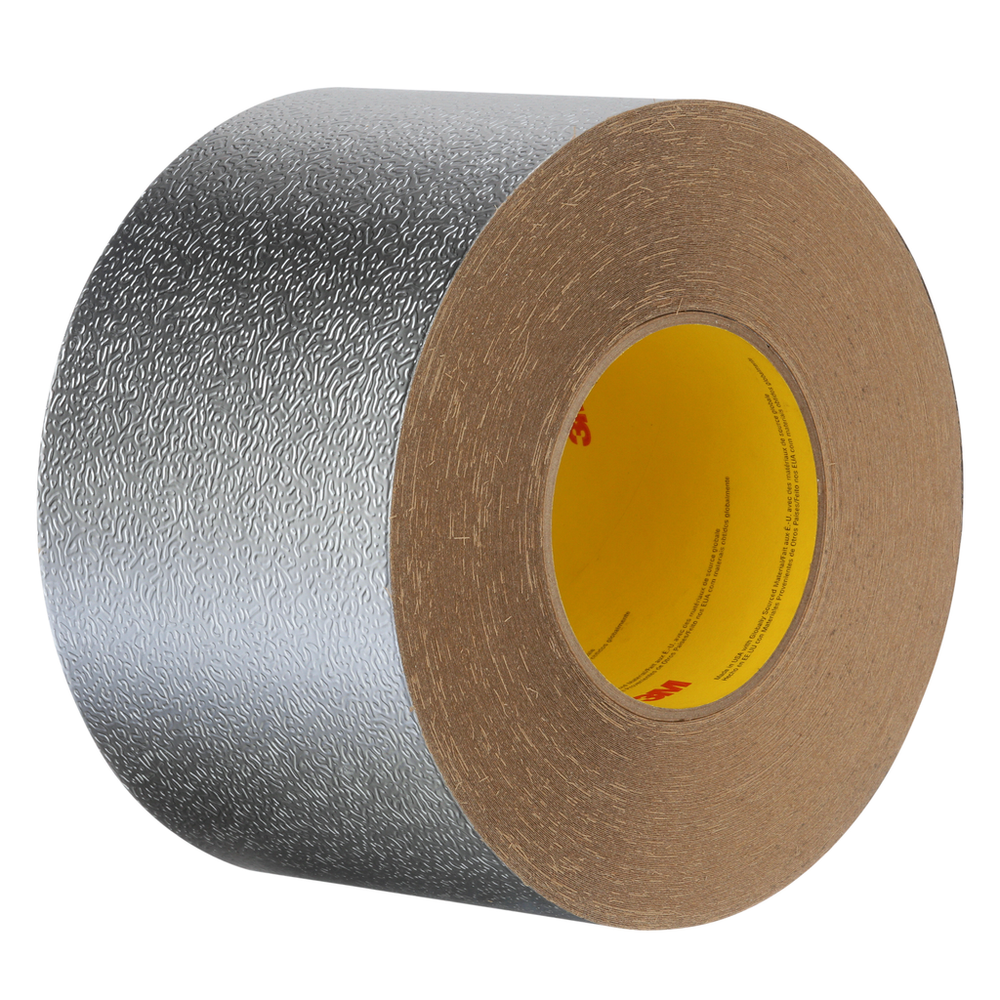

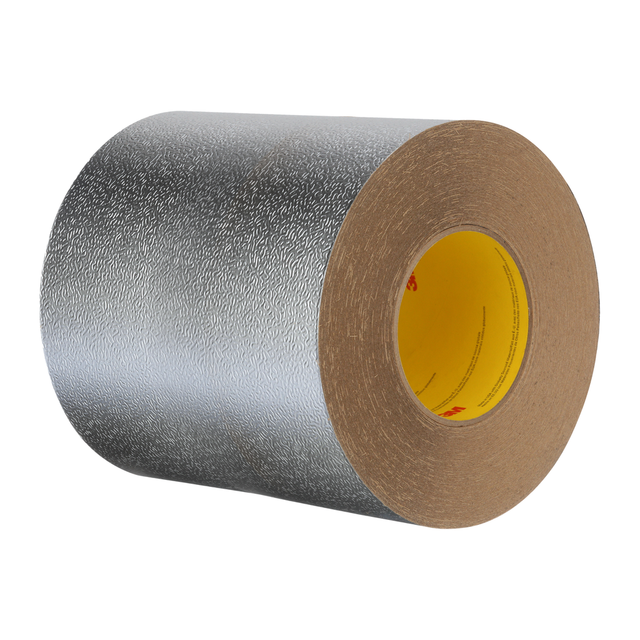

3M™ Ventureclad™ Enhanced Metal Jacketing 1579, CWE-EMJ, 4 in X 25 yd, 4 Rolls/Case - 7100311863

SKU: 7100311863
MPN: 7100311863
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060005328
3M ID: 70011144303
$132.77 each
Hurry up! Current stock:

Product Description

3M™ VentureClad™ Enhanced Metal Jacketing 1579CWE-EMJ is an all-weather option for various jacketing applications. It offers high resistance to weathering, mold, UV and extreme environmental conditions. This multi-layered laminate tape is designed to provide zero permeability and act as a vapor barrier The additional clear coat layer of protection makes it more resistant and durable. Zero-permeable jacketing for insulated HVAC ductwork and pipes to protect against moisture, mold, ultraviolet (UV), and extreme environmental conditions. Backed by a 10-year 3M warranty when applied per 3M installation guidelines. It comes in silver embossed.

Features

  • Designed to protect insulation materials, including fiberglass, polystyrene, mineral wool, elastomeric, phenolic foam, cellular glass, calcium silicate and conformable aerogel
  • Bonds and seals in cold, hot and humid conditions as low as -10°F (-23°C) with service range of -40°F (-40°C) to248°F (120°C)
  • Highly resistant to punctures and tears.
  • Quick and simple install with no specialized tools.
  • Available in an embossed finish with a wide range of widths and lengths
  • Protects against intrusion by vapor and chemical atmospheres as well as water, fungi, corrosion, oil and grease
Spec Sheet



Downloads

Specifications

Shelf Life730
Overall Length (Metric)22.86
Country of OriginUnited States
ApplicationDuctwork; Exterior Seams & Joints; HVAC Maintenance; Insulation; Sealing HVAC & Duct Work
Primary LinerPolycoated Natural Kraft Paper
Overall Length (Imperial) UOMyd
Adhesive TypeAcrylic
Product ColorSilver
Overall Length (Imperial)25.0
Shelf Life UOMMonth
Overall Length (Metric) UOMm
Backing MaterialMulti-layered, reinforced laminate
IndustriesCommercial, Construction, Food and Beverage, General Industrial, Industrial, MRO, Manufacturing, Marine, Military, Military and Government
Overall Width (Metric) UOMmm
Overall Width (Imperial)4.0
Overall Width (Imperial) UOMin
Overall Width (Metric)101.6
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Metric)36.0
Maximum Operating Temperature (Fahrenheit)248.0
Backing (Carrier) Thickness (Imperial)15.0
Tensile Strength (Imperial) UOMlb/in
Minimum Operating Temperature (Celsius) UOMDegree
Back Side Adhesive Thickness (Imperial)0.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)120.0
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Imperial)130.0
Backing (Carrier) Thickness (Metric)0.38
Minimum Operating Temperature (Celsius)-40.0
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-40.0
Tensile Strength (Metric) UOMN/25mm
Total Tape Thickness without Liner (Imperial)16.0
Back Side Adhesive Thickness (Metric)0.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric)0.406
Specifications MetASTM E84 (0/5 Flame/Smoke Rating), UL 723
