3M Products & Supplies

3M™ Ventureclad™ Enhanced Metal Jacketing 1579, CWE-EMJ, 23 in X 25 yd, 1 Roll/Case - 7100311705

Sold As: 20-Pack
SKU: 7100311705
MPN: 7100311705
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 50068060005385
3M ID: 70011144360
$15,267.89 ($763.39 / Count)
Hurry up! Current stock:

Product Description

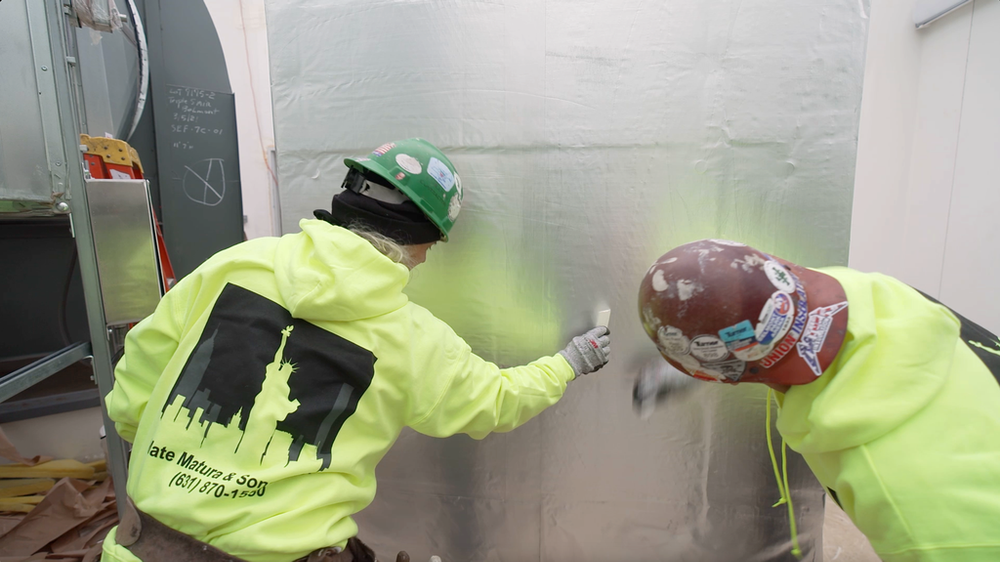

3M™ VentureClad™ Enhanced Metal Jacketing 1579CWE-EMJ is an all-weather option for various jacketing applications. It offers high resistance to weathering, mold, UV and extreme environmental conditions. This multi-layered laminate tape is designed to provide zero permeability and act as a vapor barrier The additional clear coat layer of protection makes it more resistant and durable. Zero-permeable jacketing for insulated HVAC ductwork and pipes to protect against moisture, mold, ultraviolet (UV), and extreme environmental conditions. Backed by a 10-year 3M warranty when applied per 3M installation guidelines. It comes in silver embossed.

Features

  • Quick and simple install with no specialized tools.
  • Designed to protect insulation materials, including fiberglass, polystyrene, mineral wool, elastomeric, phenolic foam, cellular glass, calcium silicate and conformable aerogel
  • Available in an embossed finish with a wide range of widths and lengths
  • Highly resistant to punctures and tears.
  • Protects against intrusion by vapor and chemical atmospheres as well as water, fungi, corrosion, oil and grease
  • Bonds and seals in cold, hot and humid conditions as low as -10°F (-23°C) with service range of -40°F (-40°C) to248°F (120°C)
Spec Sheet



Downloads

Specifications

Shelf Life730
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Length (Imperial)25.0
Adhesive TypeAcrylic
Overall Length (Imperial) UOMyd
Primary LinerPolycoated Natural Kraft Paper
Maximum Operating Temperature (Celsius) UOMDegree
IndustriesCommercial, Construction, Food and Beverage, General Industrial, Industrial, MRO, Manufacturing, Marine, Military, Military and Government
Maximum Operating Temperature (Fahrenheit)248.0
Overall Width (Metric)584.2
Back Side Adhesive Thickness (Imperial)0.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Metric) UOMmm
Shelf Life UOMMonth
Tensile Strength (Imperial) UOMlb/in
Country of OriginUnited States
Backing (Carrier) Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Metric)0.0
Minimum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric) UOMN/25mm
Backing (Carrier) Thickness (Imperial)15.0
Minimum Operating Temperature (Celsius)-40.0
Tensile Strength (Imperial)130.0
Backing (Carrier) Thickness (Metric)0.38
Total Tape Thickness without Liner (Imperial)16.0
Tensile Strength (Metric)36.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Metric)22.86
Product ColorSilver
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)23.0
Specifications MetASTM E84 (0/5 Flame/Smoke Rating), UL 723
Total Tape Thickness without Liner (Metric) UOMmm
ApplicationDuctwork; Exterior Seams & Joints; HVAC Maintenance; Insulation; Sealing HVAC & Duct Work
Total Tape Thickness without Liner (Metric)0.406
Overall Length (Metric) UOMm
Maximum Operating Temperature (Celsius)120.0
Overall Width (Metric) UOMmm
Backing MaterialMulti-layered, reinforced laminate
