3M Products & Supplies

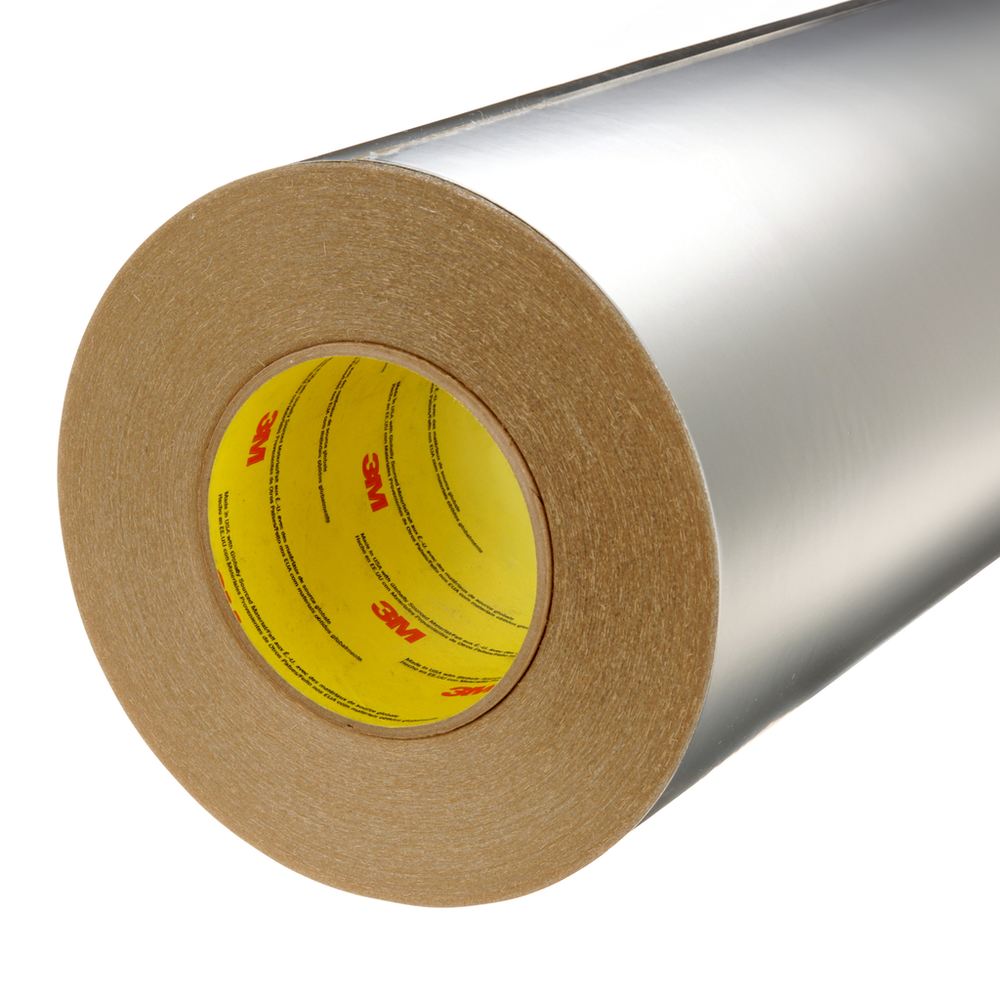

3M™ Ventureclad™ Enhanced Metal Jacketing 1579, CW-EMJ, 23 in X 25 yd, 1 Roll/Case - 7100312193

SKU: 7100312193
MPN: 7100312193
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060005427
3M ID: 70011144394
$693.98 each
Hurry up! Current stock:

Product Description

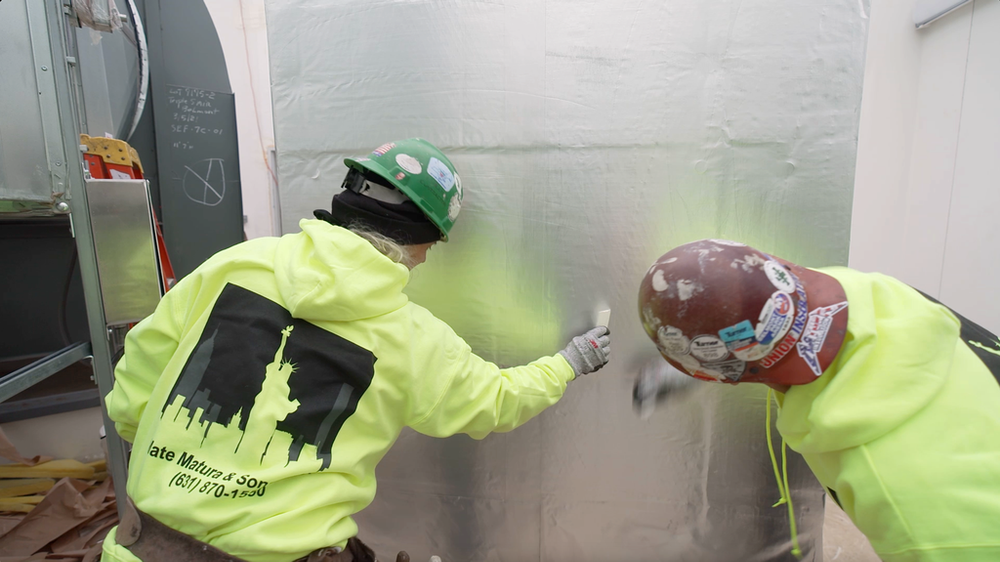

3M™ VentureClad™ Enhanced Metal Jacketing 1579CW-EMJ is an all-weather option for various jacketing applications. It offers high resistance to weathering, mold, UV and extreme environmental conditions. This multi-layered laminate tape is designed to provide zero permeability and act as a vapor barrier. The additional clear coat layer of protection makes it more resistant and durable. Zero-permeable jacketing for insulated HVAC ductwork and pipes to protect against moisture, mold, ultraviolet (UV), and extreme environmental conditions. Backed by a 10-year 3M warranty when applied per 3M installation guidelines. It comes in silver smooth.

Features

  • Bonds and seals in cold, hot and humid conditions as low as -10°F (-23°C) with service range of -40°F (-40°C) to248°F (120°C)
  • Protects against intrusion by vapor and chemical atmospheres as well as water, fungi, corrosion, oil and grease
  • Quick and simple install with no specialized tools.
  • Available in a smooth finish with a wide range of widths and lengths
  • Designed to protect insulation materials, including fiberglass, polystyrene, mineral wool, elastomeric, phenolic foam, cellular glass, calcium silicate and conformable aerogel
  • Highly resistant to punctures and tears.
Spec Sheet



Downloads

Specifications

Shelf Life730
Overall Length (Metric) UOMm
Overall Length (Metric)22.86
Overall Width (Metric) UOMmm
Product ColorSilver
Overall Width (Imperial) UOMin
Overall Length (Imperial)25.0
Country of OriginUnited States
Overall Width (Metric)584.2
Primary LinerPolycoated Natural Kraft Paper
IndustriesCommercial, Construction, Food and Beverage, General Industrial, Industrial, MRO, Manufacturing, Marine, Military, Military and Government
Backing MaterialMulti-layered, reinforced laminate
Overall Length (Imperial) UOMyd
Shelf Life UOMMonth
Adhesive TypeAcrylic
Overall Width (Imperial)23.0
Specifications MetASTM E84 (0/5 Flame/Smoke Rating), UL 723
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.33
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)120.0
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric)0.381
Back Side Adhesive Thickness (Metric)0.0
Total Tape Thickness without Liner (Imperial)15.0
Minimum Operating Temperature (Celsius)-40.0
Minimum Operating Temperature (Fahrenheit)-40.0
Maximum Operating Temperature (Fahrenheit)248.0
Backing (Carrier) Thickness (Imperial)13.0
Back Side Adhesive Thickness (Imperial)0.0
ApplicationDuctwork; Exterior Seams & Joints; HVAC Maintenance; Insulation; Sealing HVAC & Duct Work
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric) UOMN/25mm
Tensile Strength (Imperial)130.0
Tensile Strength (Metric)36.0
Tensile Strength (Imperial) UOMlb/in
Minimum Operating Temperature (Fahrenheit) UOMDegree
