3M Products & Supplies

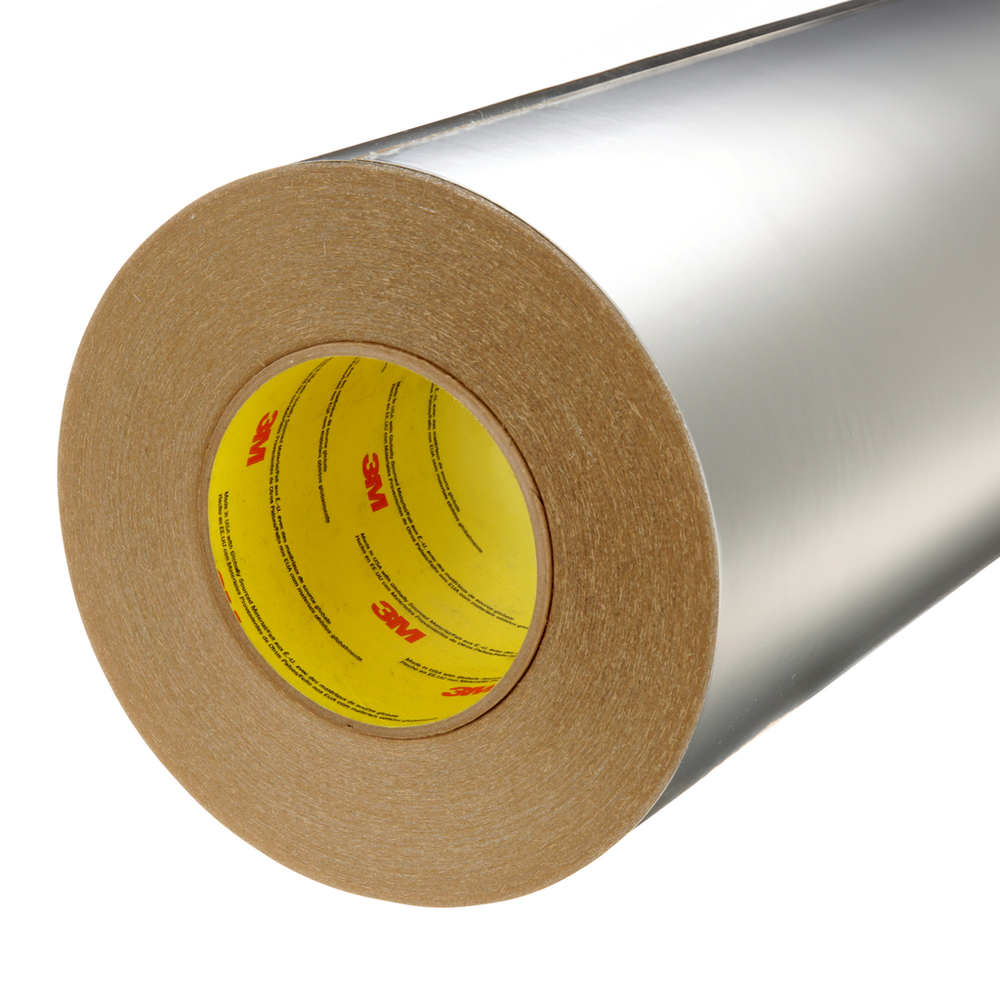

3M™ Ventureclad™ Enhanced Metal Jacketing 1579, CW-EMJ, 35.5 in X 25 yd, 1 Roll/Case - 7100311931

SKU: 7100311931
MPN: 7100311931
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060005434
3M ID: 70011144402
$1,056.06 each
Hurry up! Current stock:

Product Description

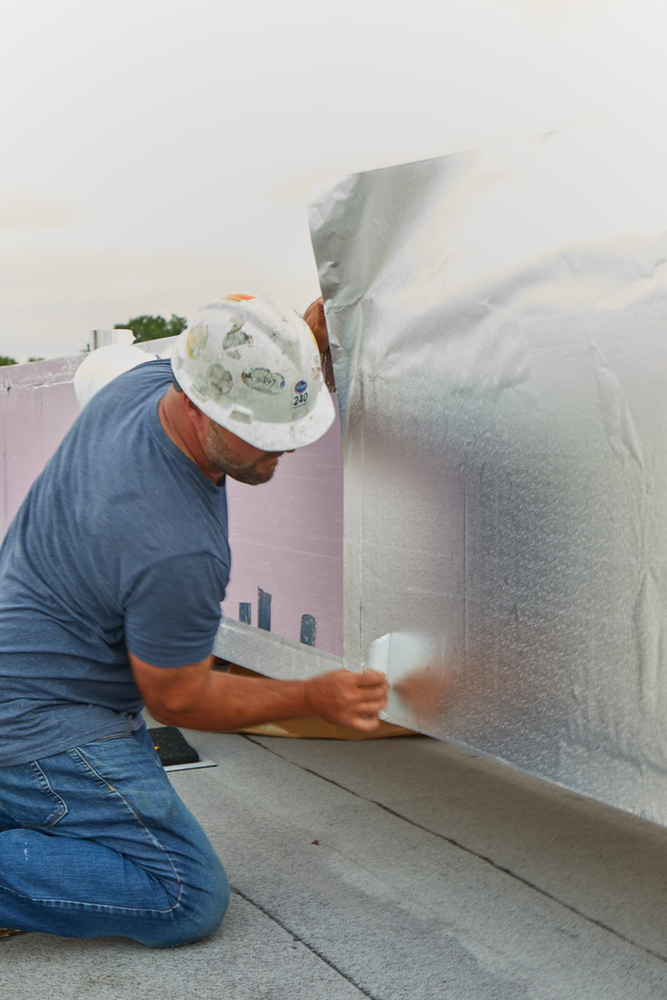

3M™ VentureClad™ Enhanced Metal Jacketing 1579CW-EMJ is an all-weather option for various jacketing applications. It offers high resistance to weathering, mold, UV and extreme environmental conditions. This multi-layered laminate tape is designed to provide zero permeability and act as a vapor barrier. The additional clear coat layer of protection makes it more resistant and durable. Zero-permeable jacketing for insulated HVAC ductwork and pipes to protect against moisture, mold, ultraviolet (UV), and extreme environmental conditions. Backed by a 10-year 3M warranty when applied per 3M installation guidelines. It comes in silver smooth.

Features

  • Designed to protect insulation materials, including fiberglass, polystyrene, mineral wool, elastomeric, phenolic foam, cellular glass, calcium silicate and conformable aerogel
  • Bonds and seals in cold, hot and humid conditions as low as -10°F (-23°C) with service range of -40°F (-40°C) to248°F (120°C)
  • Quick and simple install with no specialized tools.
  • Protects against intrusion by vapor and chemical atmospheres as well as water, fungi, corrosion, oil and grease
  • Highly resistant to punctures and tears.
  • Available in a smooth finish with a wide range of widths and lengths
Spec Sheet



Downloads

Specifications

Shelf Life730
Overall Width (Metric) UOMmm
Backing MaterialMulti-layered, reinforced laminate
Overall Length (Imperial)25.0
Overall Length (Metric)22.86
Overall Width (Imperial) UOMin
Overall Width (Imperial)35.5
Overall Width (Metric)901.7
Country of OriginUnited States
Product ColorSilver
Primary LinerPolycoated Natural Kraft Paper
Adhesive TypeAcrylic
Overall Length (Imperial) UOMyd
IndustriesCommercial, Construction, Food and Beverage, General Industrial, Industrial, MRO, Manufacturing, Marine, Military, Military and Government
Overall Length (Metric) UOMm
ApplicationDuctwork; Exterior Seams & Joints; HVAC Maintenance; Insulation; Sealing HVAC & Duct Work
Back Side Adhesive Thickness (Imperial)0.0
Minimum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Imperial)130.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit)-40.0
Backing (Carrier) Thickness (Metric)0.33
Shelf Life UOMMonth
Minimum Operating Temperature (Celsius)-40.0
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Metric)36.0
Maximum Operating Temperature (Celsius) UOMDegree
Back Side Adhesive Thickness (Metric)0.0
Total Tape Thickness without Liner (Imperial)15.0
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius)120.0
Backing (Carrier) Thickness (Imperial)13.0
Total Tape Thickness without Liner (Metric)0.381
Specifications MetASTM E84 (0/5 Flame/Smoke Rating), UL 723
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Metric) UOMN/25mm
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Fahrenheit)248.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
