3M Products & Supplies

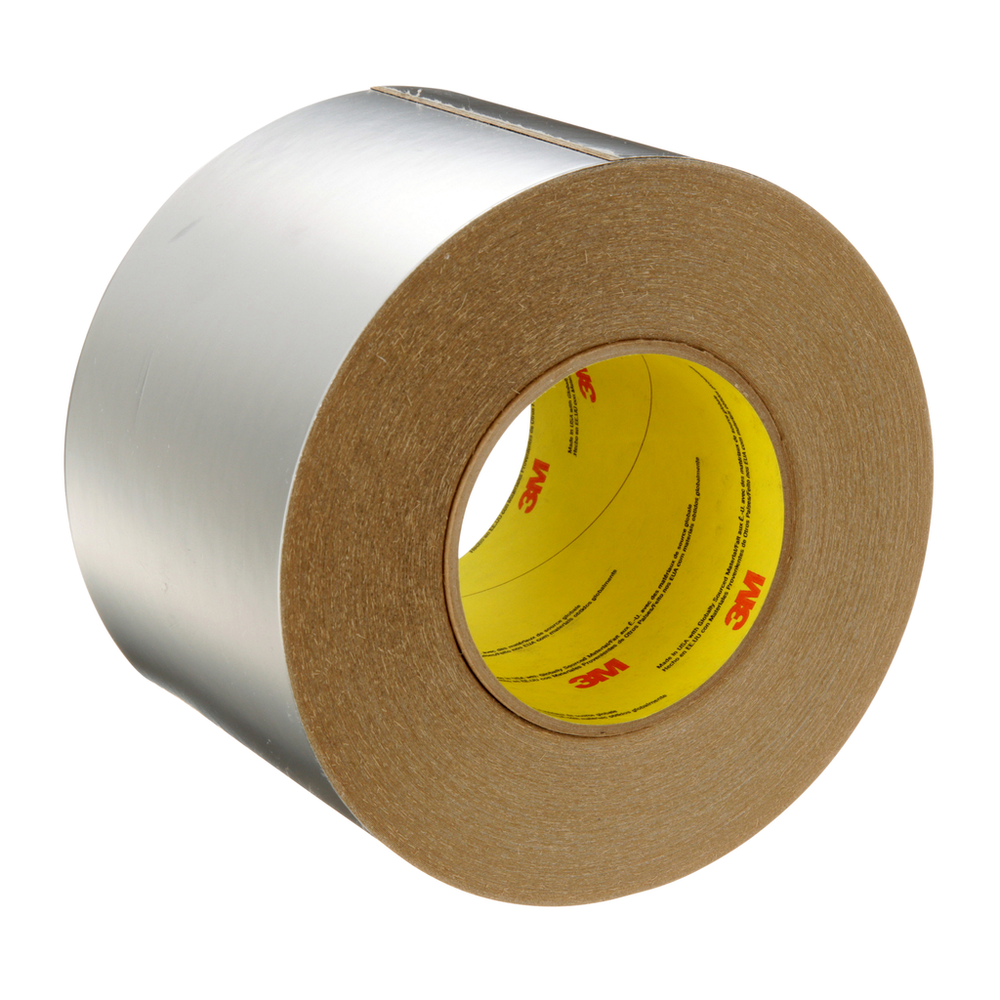

3M™ Ventureclad™ Enhanced Metal Jacketing 1579, CW-EMJ, 4 in X 25 yd, 4 Rolls/Case - 7100312004

Sold As: 324-Pack
SKU: 7100312004
MPN: 7100312004
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060005373
3M ID: 70011144352
$39,104.53 ($120.69 / Count)
Hurry up! Current stock:

Product Description

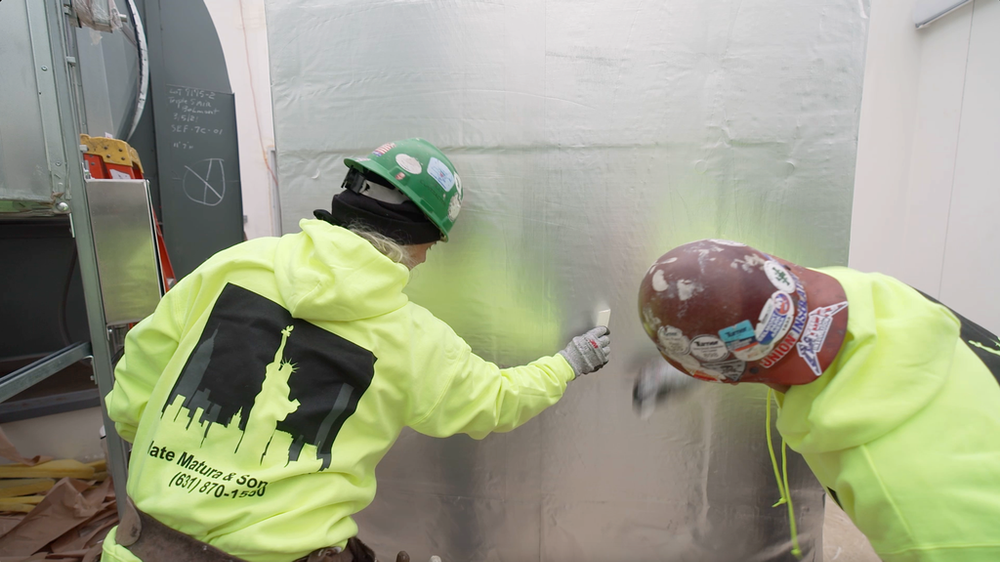

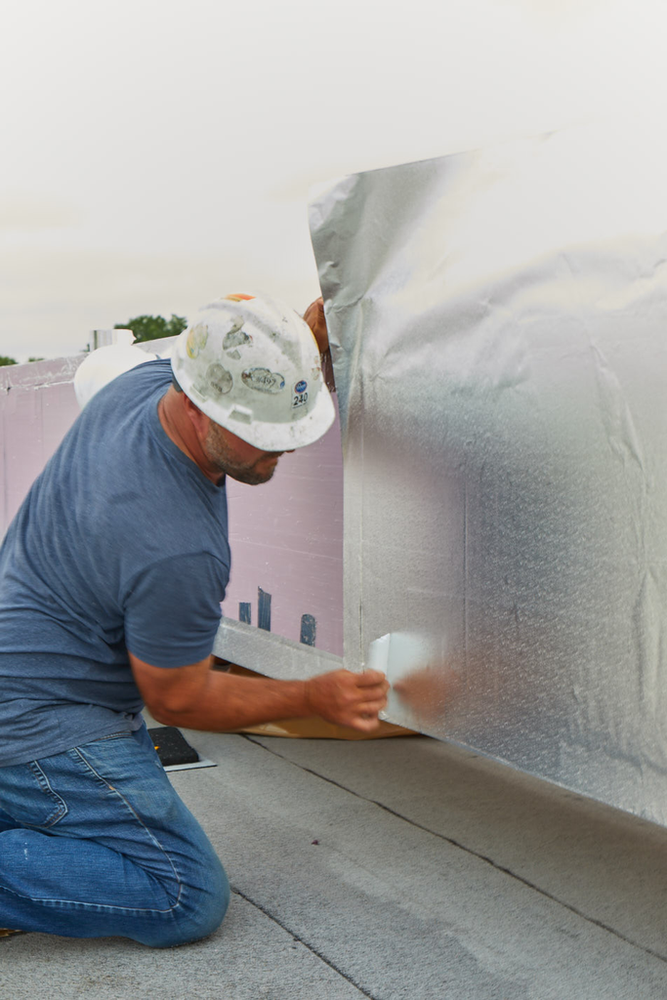

3M™ VentureClad™ Enhanced Metal Jacketing 1579CW-EMJ is an all-weather option for various jacketing applications. It offers high resistance to weathering, mold, UV and extreme environmental conditions. This multi-layered laminate tape is designed to provide zero permeability and act as a vapor barrier. The additional clear coat layer of protection makes it more resistant and durable. Zero-permeable jacketing for insulated HVAC ductwork and pipes to protect against moisture, mold, ultraviolet (UV), and extreme environmental conditions. Backed by a 10-year 3M warranty when applied per 3M installation guidelines. It comes in silver smooth.

Features

  • Quick and simple install with no specialized tools.
  • Available in a smooth finish with a wide range of widths and lengths
  • Protects against intrusion by vapor and chemical atmospheres as well as water, fungi, corrosion, oil and grease
  • Highly resistant to punctures and tears.
  • Designed to protect insulation materials, including fiberglass, polystyrene, mineral wool, elastomeric, phenolic foam, cellular glass, calcium silicate and conformable aerogel
  • Bonds and seals in cold, hot and humid conditions as low as -10°F (-23°C) with service range of -40°F (-40°C) to248°F (120°C)
Spec Sheet



Downloads

Specifications

Shelf Life730
Primary LinerPolycoated Natural Kraft Paper
Overall Length (Imperial) UOMyd
Overall Width (Imperial)4.0
Overall Length (Metric) UOMm
Overall Width (Metric) UOMmm
Product ColorSilver
Backing MaterialMulti-layered, reinforced laminate
Overall Width (Metric)101.6
Overall Width (Imperial) UOMin
Shelf Life UOMMonth
IndustriesCommercial, Construction, Food and Beverage, General Industrial, Industrial, MRO, Manufacturing, Marine, Military, Military and Government
Overall Length (Metric)22.86
Country of OriginUnited States
Adhesive TypeAcrylic
Overall Length (Imperial)25.0
Tensile Strength (Imperial)130.0
Specifications MetASTM E84 (0/5 Flame/Smoke Rating), UL 723
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)248.0
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Imperial)0.0
Backing (Carrier) Thickness (Metric)0.33
Backing (Carrier) Thickness (Metric) UOMmm
ApplicationDuctwork; Exterior Seams & Joints; HVAC Maintenance; Insulation; Sealing HVAC & Duct Work
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Imperial)15.0
Total Tape Thickness without Liner (Metric)0.381
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial)13.0
Backing (Carrier) Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius)-40.0
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-40.0
Maximum Operating Temperature (Celsius)120.0
Tensile Strength (Metric)36.0
Tensile Strength (Metric) UOMN/25mm
Back Side Adhesive Thickness (Metric)0.0
