3M Products & Supplies

3M™ VentureClad™ Insulation Jacketing Tape 1577CW-WM, White, 23 in x 50 yd, 1 Roll/Case - 7100043741

SKU: 7100043741
MPN: 7100043741
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128957820
3M ID: 70008909247
5 Digit UPC: 95782
$675.29 each
Hurry up! Current stock:

Product Description

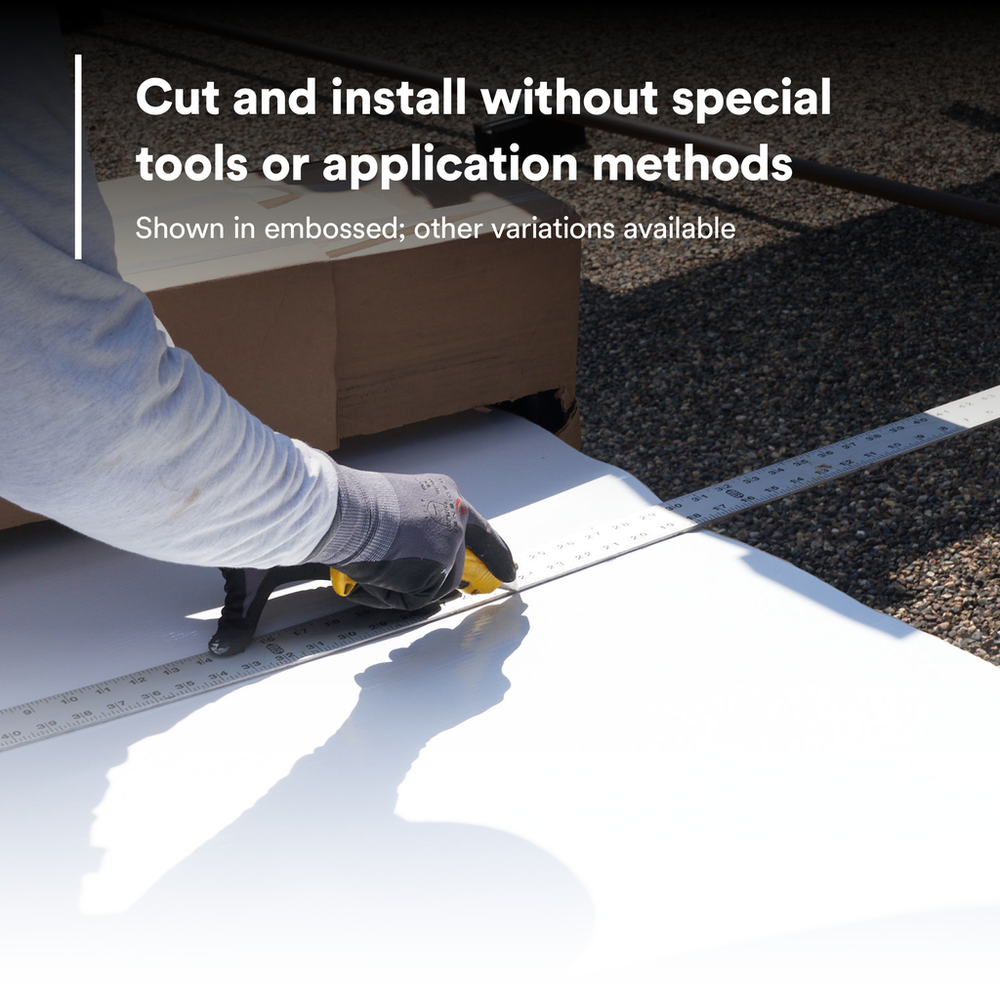

3M™ VentureClad™ Insulation Jacketing System 1577CW-WM is used for cladding and jacketing applications and creates a vapor barrier for HVAC, ductwork, vessels and pipes. This conformable tape is able to conform to a curved or irregular surface. It offers zero permeability, installs without special tools and is highly puncture and tear resistant - ideal for any indoor or outdoor task. This laminate tape can withstand temperatures as cold as -40 °F/-40 °C and as hot as 248 °F/120 °C. It’s suitable for use on materials like fiberglass, polystyrene and conformable aerogel. It protects insulation against mold, UV, weather, oil and grease, chemicals, impact and mechanical abuse, corrosion under insulation (CUI). This tape qualifies for compliance credit for LEED® v4 and is UL723 classified. 3M™ VentureClad™ Insulation Jacketing System 1577CW-WM provides a reliable barrier and protection during jacketing and cladding operations.

Features

  • Cold weather acrylic adhesive applies easily at temperatures as cold as -10°F/-23°C
  • Flexible backing conforms to irregular and curved surfaces
  • Qualifies for compliance credit for LEED®

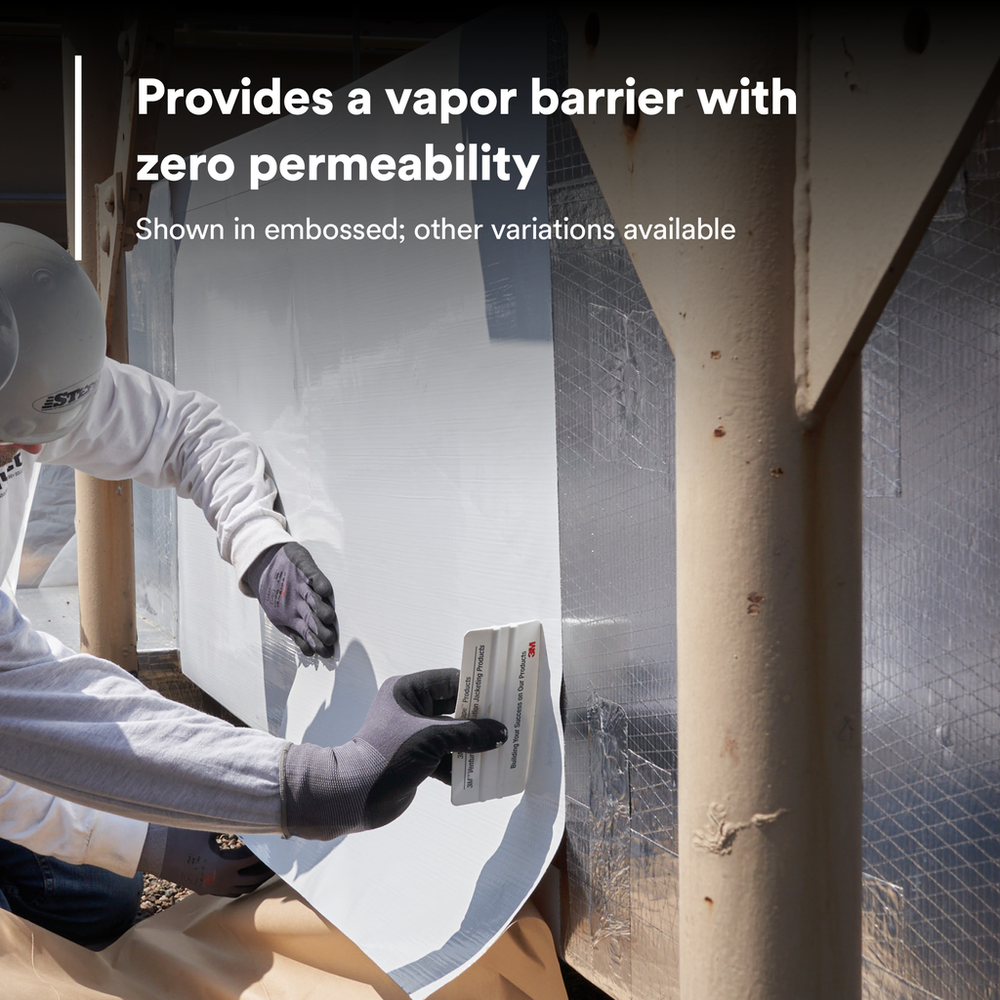

  • Zero permeability provides an absolute vapor barrier for sealing applications

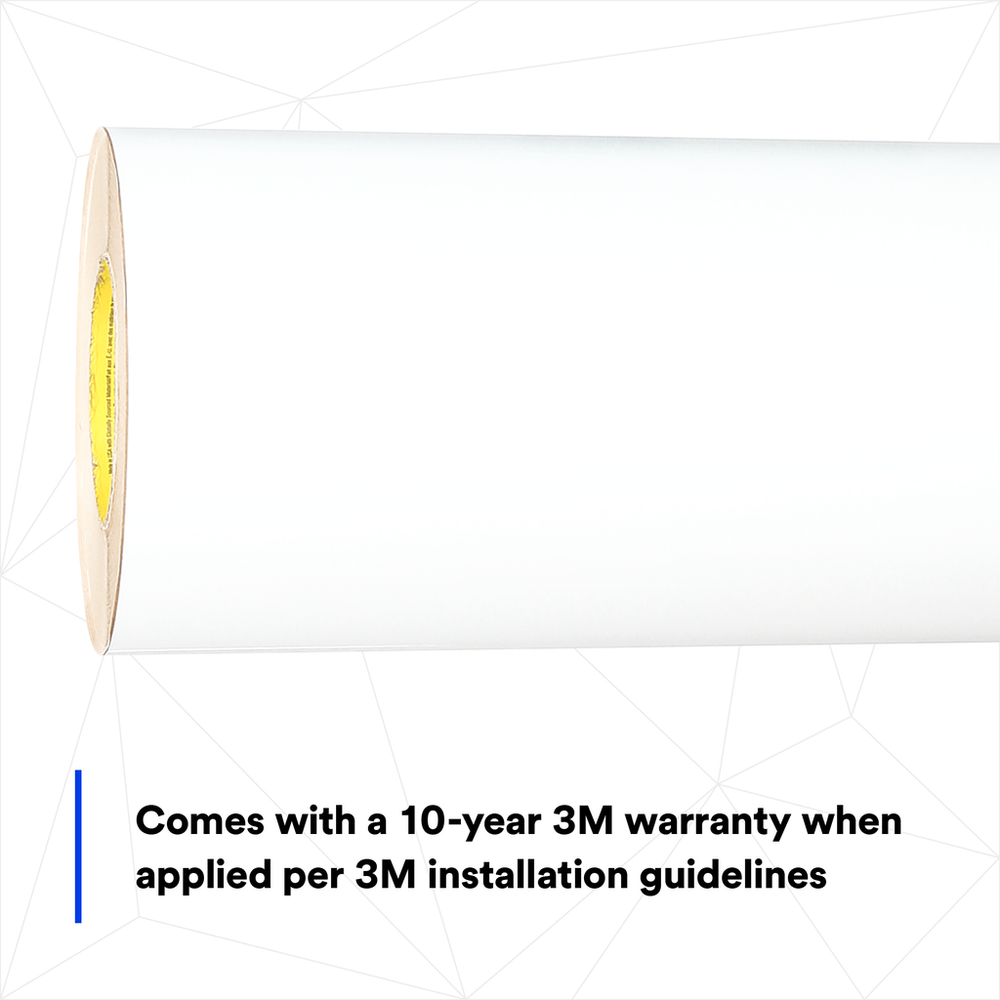

  • 10-year 3M warranty when applied per 3M installation guidelines
  • High puncture and tear resistance ensure longevity and durability in a variety of applications and environmental conditions
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Length (Imperial)50.0
Tensile Strength (Imperial)108.0
Adhesive TypeAcrylic
Shelf Life UOMMonth
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)584.2
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric)0.18
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric)45.7
Minimum Operating Temperature (Celsius)-70.0
Backing (Carrier) Thickness (Imperial)5.0
Overall Length (Imperial) UOMyd
Tensile Strength (Metric)189.0
Overall Width (Imperial) UOMin
ApplicationExterior Seams & Joints; Interior Seams & Joints; Sealing HVAC & Duct Work
Minimum Operating Temperature (Fahrenheit)-94.0
IndustriesCommercial, Construction, Electronics, General Industrial, Metalworking, Paper
Backing MaterialMulti-layered Laminate
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric)0.13
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Metric) UOMN/100mm
Overall Width (Metric) UOMmm
Overall Width (Imperial)23.0
Maximum Operating Temperature (Fahrenheit)248.0
Primary LinerPolycoated Kraft
Maximum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Elongation at Break80
Maximum Operating Temperature (Celsius)120.0
Total Tape Thickness without Liner (Imperial)7.0
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Metric) UOMm
Product ColorWhite
