3M Products & Supplies

3M™ VentureClad™ Insulation Jacketing Tape 1577CW-WM, White, 46 in x 50 yd, 1 Roll/Case - 7100080388

SKU: 7100080388
MPN: 7100080388
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128951958
3M ID: 70006743051
5 Digit UPC: 95195
$1,350.90 each
Hurry up! Current stock:

Product Description

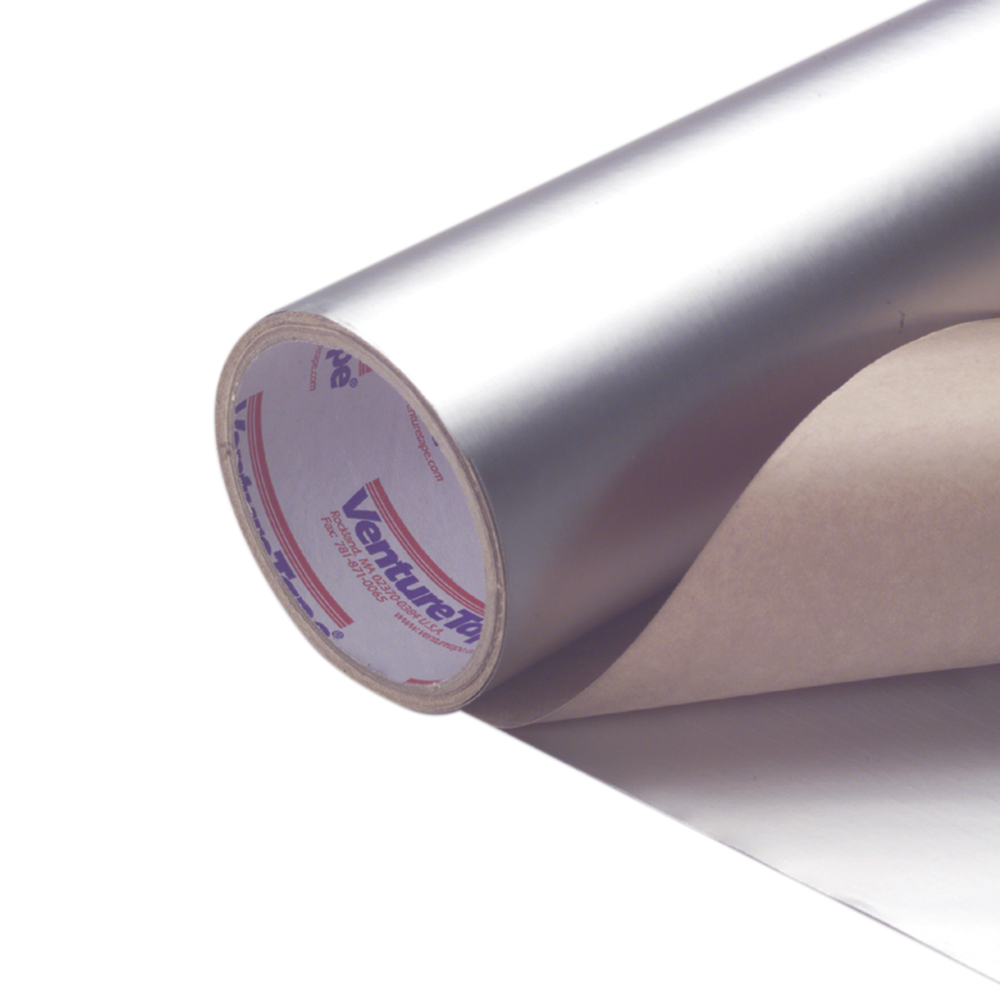

3M™ VentureClad™ Insulation Jacketing System 1577CW-WM is used for cladding and jacketing applications and creates a vapor barrier for HVAC, ductwork, vessels and pipes. This conformable tape is able to conform to a curved or irregular surface. It offers zero permeability, installs without special tools and is highly puncture and tear resistant - ideal for any indoor or outdoor task. This laminate tape can withstand temperatures as cold as -40 °F/-40 °C and as hot as 248 °F/120 °C. It’s suitable for use on materials like fiberglass, polystyrene and conformable aerogel. It protects insulation against mold, UV, weather, oil and grease, chemicals, impact and mechanical abuse, corrosion under insulation (CUI). This tape qualifies for compliance credit for LEED® v4 and is UL723 classified. 3M™ VentureClad™ Insulation Jacketing System 1577CW-WM provides a reliable barrier and protection during jacketing and cladding operations.

Features

  • Qualifies for compliance credit for LEED®
  • Flexible backing conforms to irregular and curved surfaces
  • Zero permeability provides an absolute vapor barrier for sealing applications
  • 10-year 3M warranty when applied per 3M installation guidelines
  • Cold weather acrylic adhesive applies easily at temperatures as cold as -10°F/-23°C
  • High puncture and tear resistance ensure longevity and durability in a variety of applications and environmental conditions
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius)120.0
IndustriesCommercial, Construction, Electronics, General Industrial, Metalworking, Paper
ApplicationExterior Seams & Joints; Interior Seams & Joints; Sealing HVAC & Duct Work
Primary LinerPolycoated Kraft
Total Tape Thickness without Liner (Imperial)7.0
Total Tape Thickness without Liner (Metric)0.18
Backing MaterialMulti-layered Laminate
Tensile Strength (Metric) UOMN/100mm
Product ColorWhite
Elongation at Break80
Overall Length (Imperial)50.0
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)248.0
Adhesive TypeAcrylic
Minimum Operating Temperature (Fahrenheit)-94.0
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Imperial) UOMlb/in
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Imperial)5.0
Tensile Strength (Metric)189.0
Overall Width (Metric)1168.4
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Shelf Life UOMMonth
Tensile Strength (Imperial)108.0
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric)0.13
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Celsius)-70.0
Overall Width (Imperial)46.0
Overall Length (Metric)45.7
