3M Products & Supplies

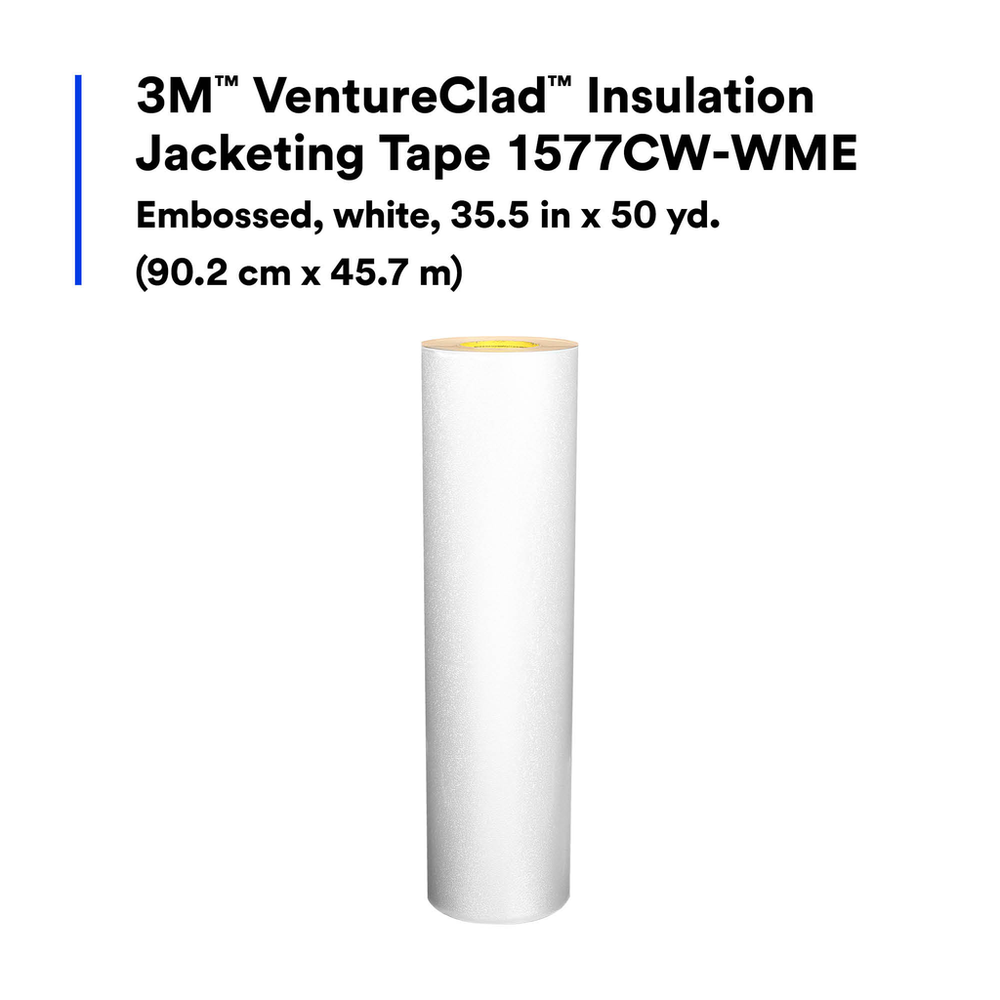

3M™ VentureClad™ Insulation Jacketing Tape 1577CW-WME, White, 35.5 in x 50 yd, 1 Roll/Case - 7100043813

SKU: 7100043813
MPN: 7100043813
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128965306
3M ID: 70008928809
5 Digit UPC: 96530
$1,193.50 each
Hurry up! Current stock:

Product Description

3M™ VentureClad™ Insulation Jacketing System 1577CW-WME is used for cladding and jacketing applications and creates a vapor barrier for HVAC, ductwork, vessels and pipes. This conformable tape is able to conform to a curved or irregular surface. It offers zero permeability, installs without special tools and is highly puncture and tear resistant - ideal for any indoor or outdoor task. This laminate tape can withstand temperatures as cold as -40 °F/-40 °C and as hot as 248 °F/120 °C. It’s suitable for use on materials like fiberglass, polystyrene and conformable aerogel. It protects insulation against mold, UV, weather, oil and grease, chemicals, impact and mechanical abuse, corrosion under insulation (CUI). This tape qualifies for compliance credit for LEED® v4 and is UL723 classified. 3M™ VentureClad™ Insulation Jacketing System 1577CW-WME provides a reliable barrier and protection during jacketing and cladding operations.

Features

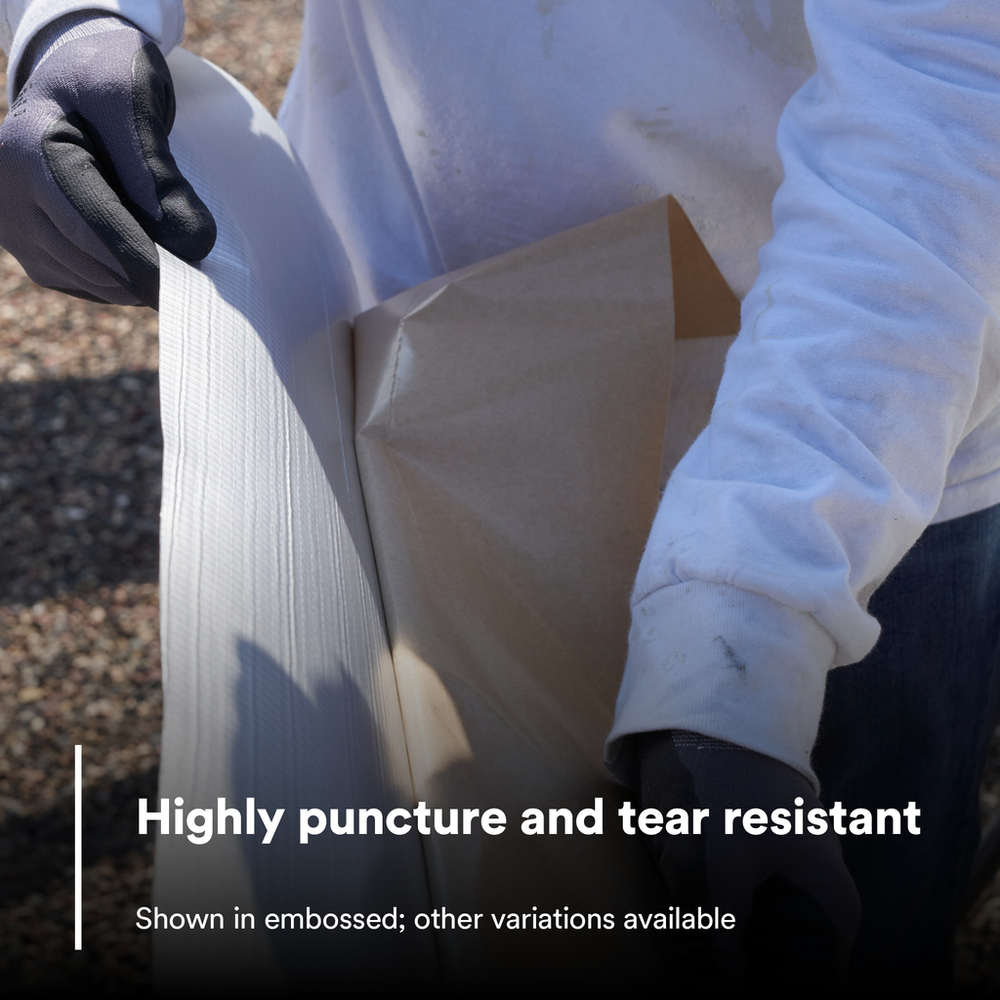

  • High puncture and tear resistance ensure longevity and durability in a variety of applications and environmental conditions
  • Cold weather acrylic adhesive applies easily at temperatures as cold as -10°F/-23°C
  • Qualifies for compliance credit for LEED®

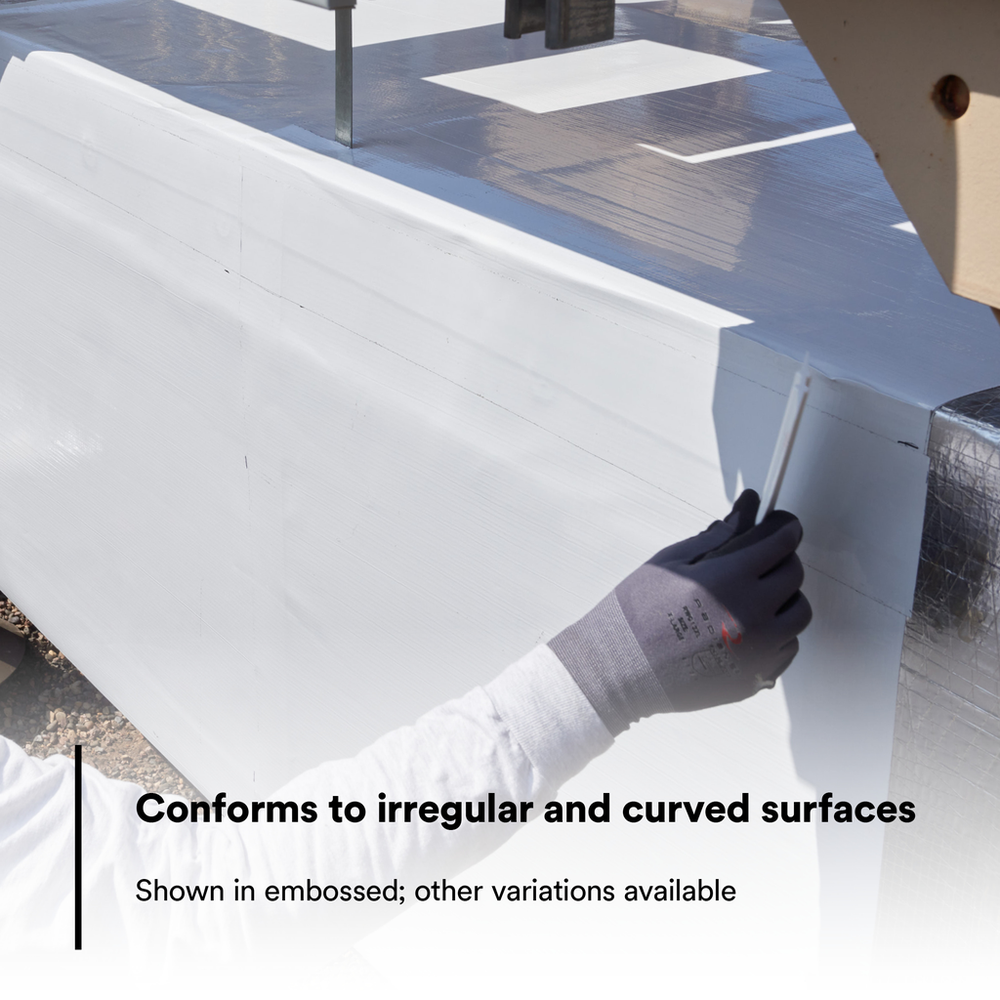

  • Flexible backing conforms to irregular and curved surfaces

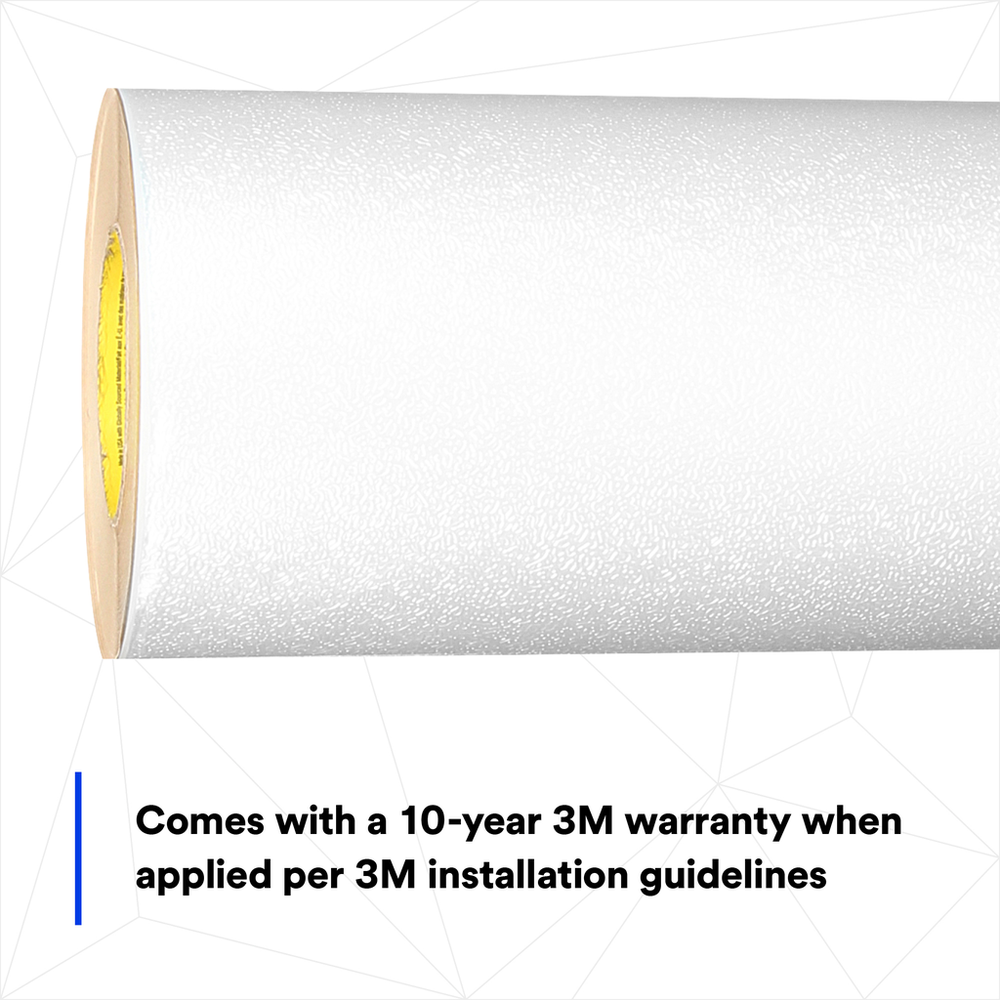

  • 10-year 3M warranty when applied per 3M installation guidelines

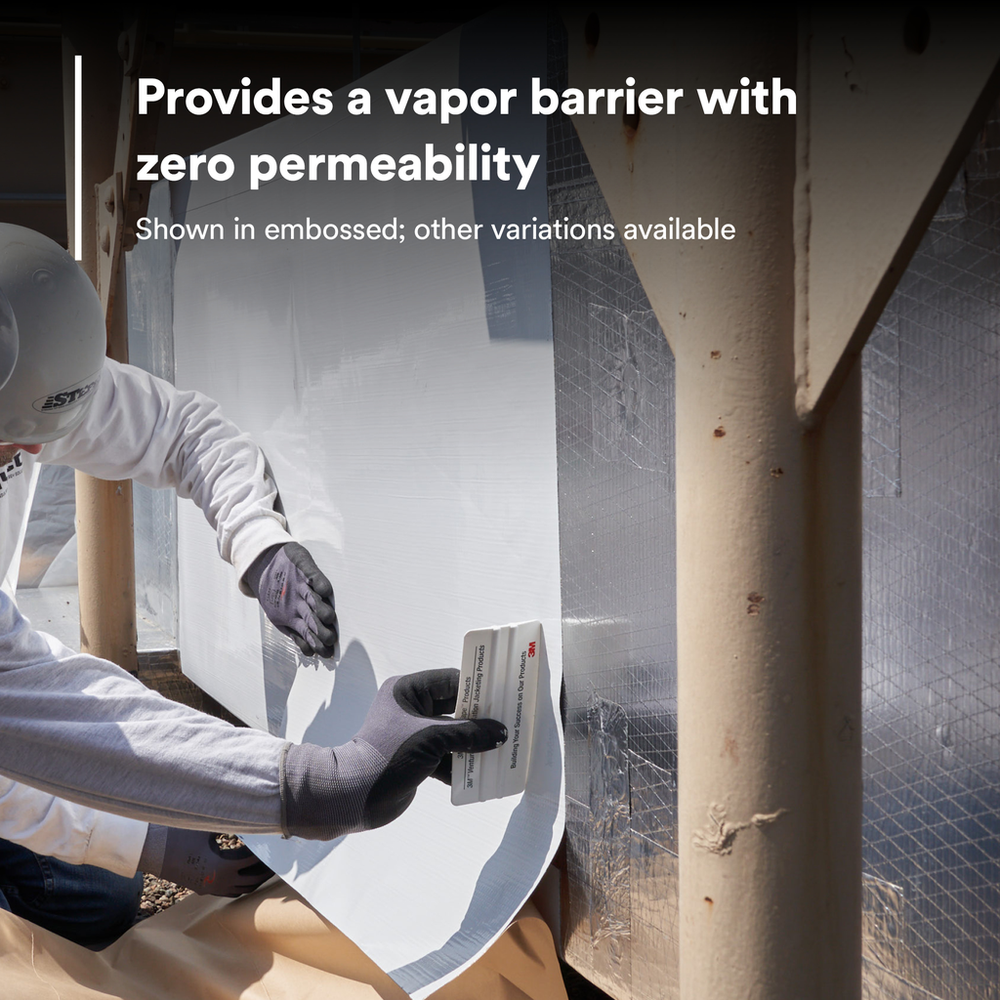

  • Zero permeability provides an absolute vapor barrier for sealing applications
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Metric) UOMmm
Overall Length (Metric)45.7
Elongation at Break80
Shelf Life UOMMonth
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Metric) UOMN/100mm
Backing MaterialMulti-layered Laminate
Backing (Carrier) Thickness (Imperial) UOMmil
Primary LinerPolycoated Kraft
IndustriesCommercial, Construction, Electronics, General Industrial, Metalworking, Paper
Adhesive TypeAcrylic
Overall Length (Metric) UOMm
Minimum Operating Temperature (Celsius)-70.0
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Metric)901.7
Total Tape Thickness without Liner (Metric)0.23
Maximum Operating Temperature (Celsius)120.0
Tensile Strength (Imperial)100.0
Maximum Operating Temperature (Fahrenheit)248.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial) UOMlb/in
Overall Length (Imperial)50.0
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit)-94.0
Total Tape Thickness without Liner (Imperial)9.0
Minimum Operating Temperature (Celsius) UOMDegree
Product ColorWhite
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric)175.0
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial)35.5
Backing (Carrier) Thickness (Metric)0.15
ApplicationExterior Seams & Joints; Interior Seams & Joints; Sealing HVAC & Duct Work
Backing (Carrier) Thickness (Imperial)6.0
