3M Products & Supplies

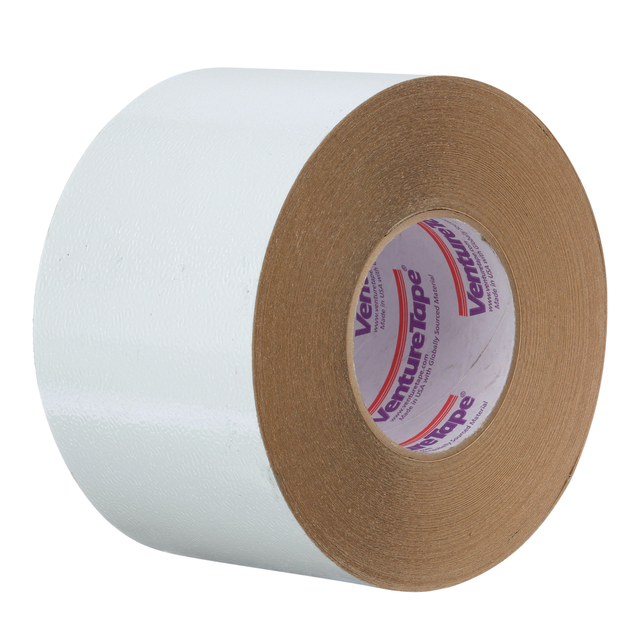

3M™ VentureClad™ Insulation Jacketing Tape 1577CW-WME, White, 4 in x 50 yd, 4 Rolls/Case - 7010376416

Sold As: 4-Pack
SKU: 7010376416
MPN: 7010376416
For an accurate lead time please contact us
UPC: 00076308982829
3M ID: 70006776218
5 Digit UPC: 98282
$564.82 ($141.21 / Count)
Hurry up! Current stock:

Product Description

3M™ VentureClad™ Insulation Jacketing System 1577CW-WME is used for cladding and jacketing applications and creates a vapor barrier for HVAC, ductwork, vessels and pipes. This conformable tape is able to conform to a curved or irregular surface. It offers zero permeability, installs without special tools and is highly puncture and tear resistant - ideal for any indoor or outdoor task. This laminate tape can withstand temperatures as cold as -40 °F/-40 °C and as hot as 248 °F/120 °C. It’s suitable for use on materials like fiberglass, polystyrene and conformable aerogel. It protects insulation against mold, UV, weather, oil and grease, chemicals, impact and mechanical abuse, corrosion under insulation (CUI). This tape qualifies for compliance credit for LEED® v4 and is UL723 classified. 3M™ VentureClad™ Insulation Jacketing System 1577CW-WME provides a reliable barrier and protection during jacketing and cladding operations.

Features

  • Qualifies for compliance credit for LEED®
  • High puncture and tear resistance ensure longevity and durability in a variety of applications and environmental conditions
  • Zero permeability provides an absolute vapor barrier for sealing applications
  • 10-year 3M warranty when applied per 3M installation guidelines
  • Cold weather acrylic adhesive applies easily at temperatures as cold as -10°F/-23°C
  • Flexible backing conforms to irregular and curved surfaces
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Maximum Operating Temperature (Celsius)120.0
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
IndustriesCommercial, Construction, Electronics, General Industrial, Metalworking, Paper
Overall Length (Metric)50.0
Tensile Strength (Imperial) UOMlb/in
Overall Width (Metric)101.6
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Backing MaterialMulti-layered Laminate
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Imperial) UOMmil
ApplicationExterior Seams & Joints; Interior Seams & Joints; Sealing HVAC & Duct Work
Minimum Operating Temperature (Celsius)-70.0
Overall Width (Imperial)4.0
Overall Length (Imperial)45.72
Tensile Strength (Imperial)100.0
Adhesive TypeAcrylic
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Metric)0.15
Maximum Operating Temperature (Fahrenheit)248.0
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Metric)175.0
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Imperial)6.0
Product ColorWhite
Total Tape Thickness without Liner (Metric)0.23
Shelf Life UOMMonth
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Fahrenheit)-94.0
Total Tape Thickness without Liner (Imperial)9.0
Primary LinerPolycoated Kraft
Elongation at Break80
Tensile Strength (Metric) UOMN/100mm
