3M Products & Supplies

3M™ VentureClad™ Insulation Jacketing Tape 1577CW-WME, White, 23 in x 50 yd, 1 Roll/Case - 7100043844

SKU: 7100043844
MPN: 7100043844
For an accurate lead time please contact us
UPC: 00051128965290
3M ID: 70008928791
5 Digit UPC: 96529
$920.59 each
Hurry up! Current stock:

Product Description

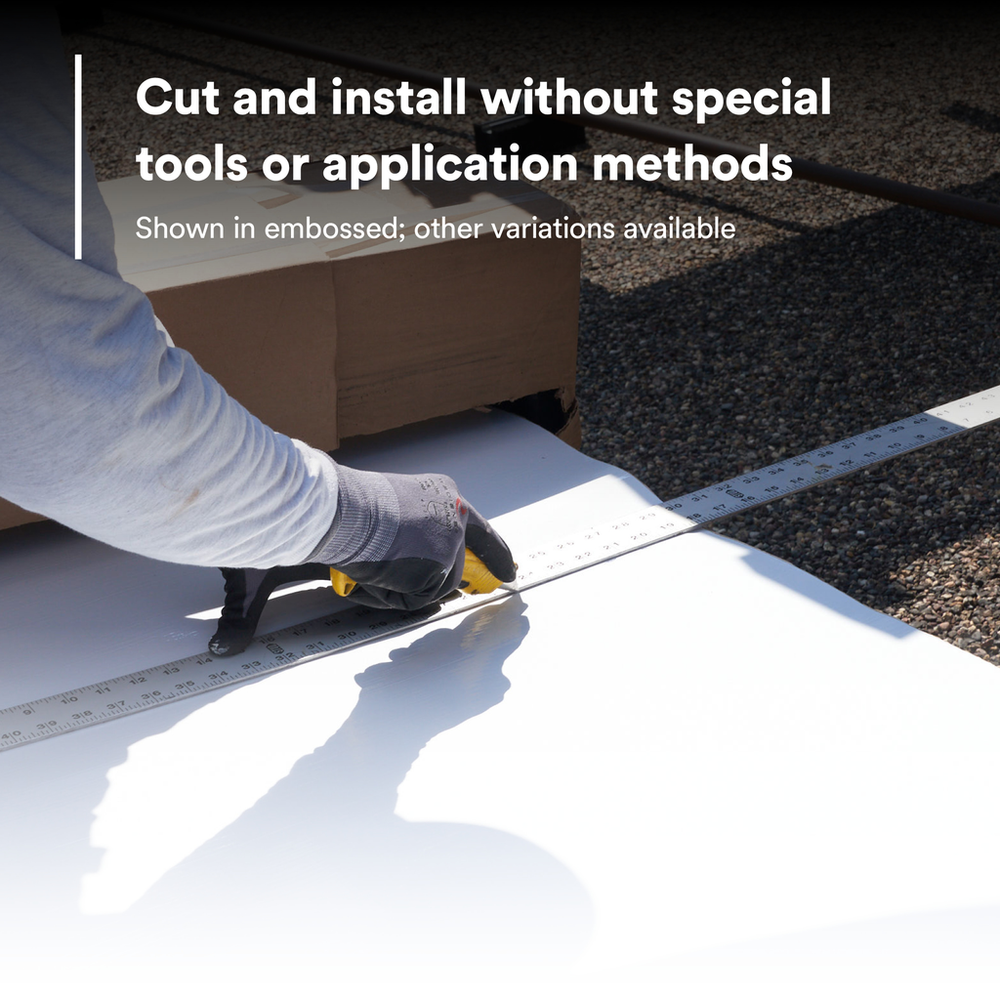

3M™ VentureClad™ Insulation Jacketing System 1577CW-WME is used for cladding and jacketing applications and creates a vapor barrier for HVAC, ductwork, vessels and pipes. This conformable tape is able to conform to a curved or irregular surface. It offers zero permeability, installs without special tools and is highly puncture and tear resistant - ideal for any indoor or outdoor task. This laminate tape can withstand temperatures as cold as -40 °F/-40 °C and as hot as 248 °F/120 °C. It’s suitable for use on materials like fiberglass, polystyrene and conformable aerogel. It protects insulation against mold, UV, weather, oil and grease, chemicals, impact and mechanical abuse, corrosion under insulation (CUI). This tape qualifies for compliance credit for LEED® v4 and is UL723 classified. 3M™ VentureClad™ Insulation Jacketing System 1577CW-WME provides a reliable barrier and protection during jacketing and cladding operations.

Features

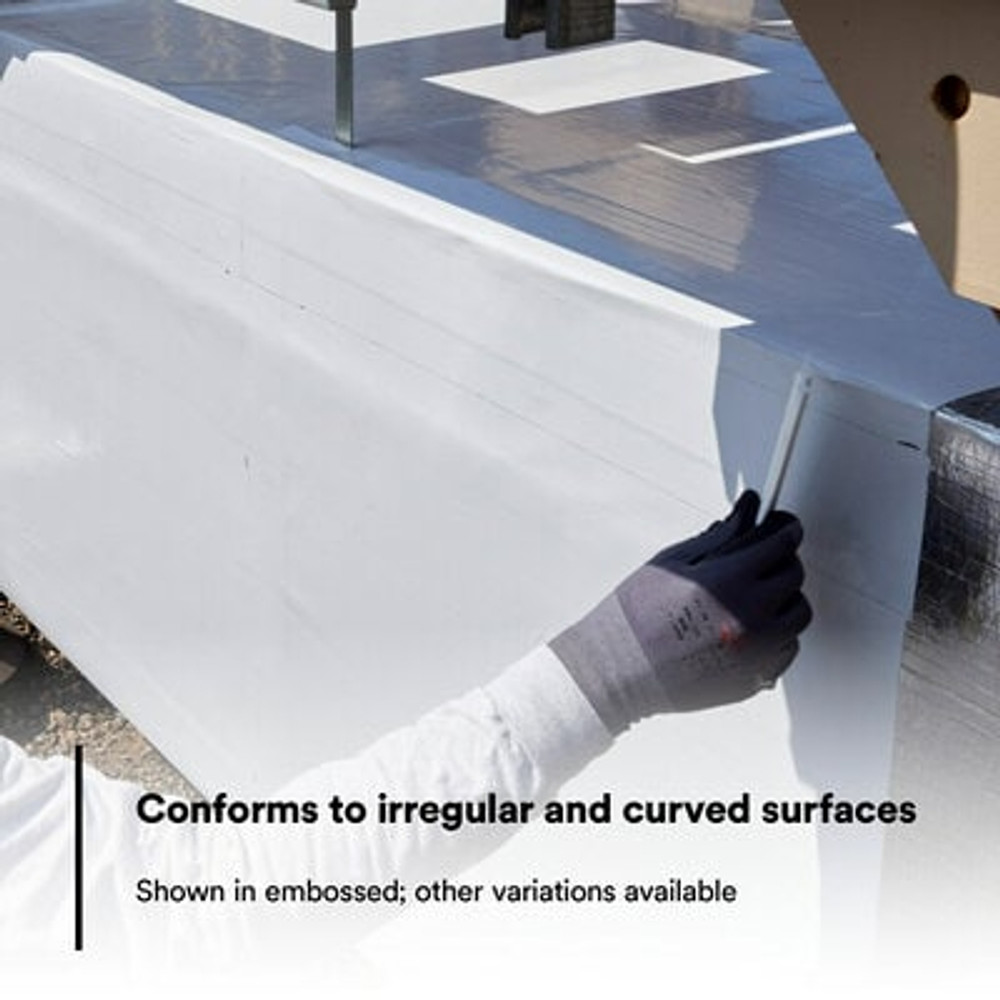

  • Flexible backing conforms to irregular and curved surfaces
  • Cold weather acrylic adhesive applies easily at temperatures as cold as -10°F/-23°C

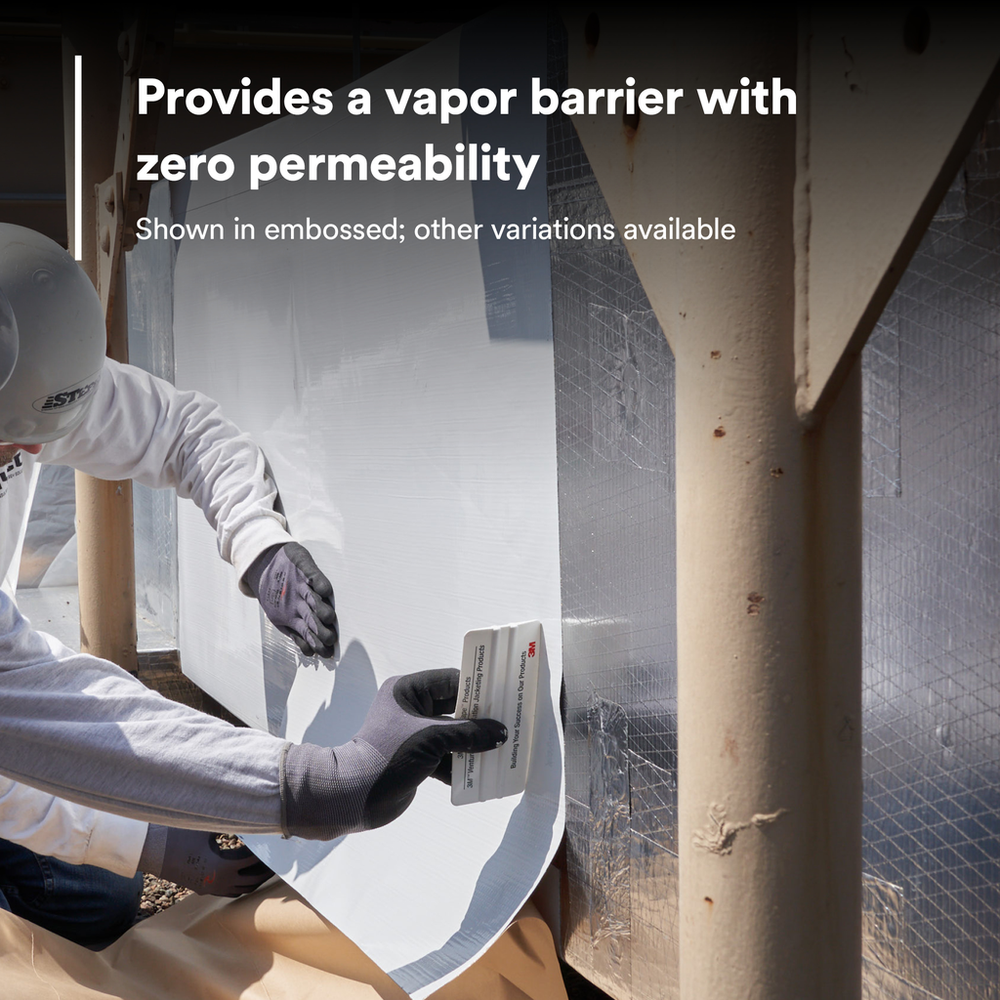

  • Zero permeability provides an absolute vapor barrier for sealing applications
  • 10-year 3M warranty when applied per 3M installation guidelines
  • Qualifies for compliance credit for LEED®

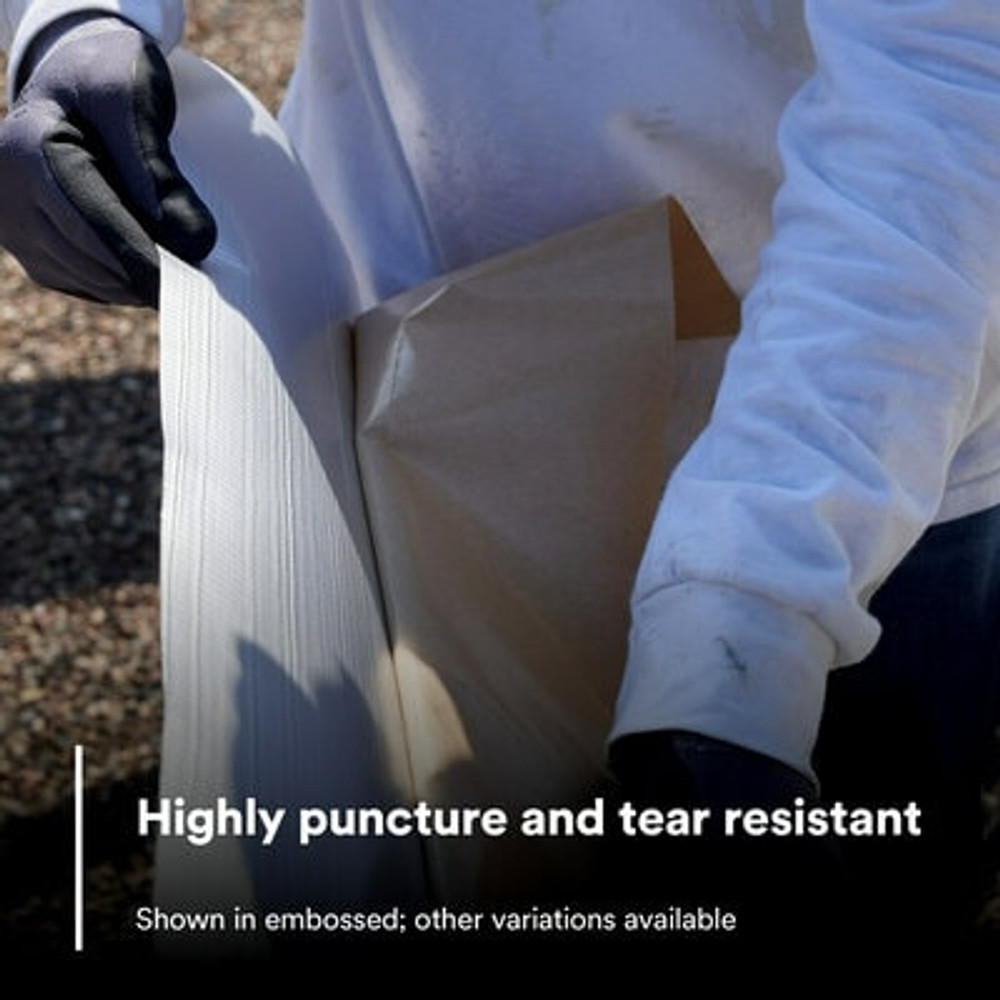

  • High puncture and tear resistance ensure longevity and durability in a variety of applications and environmental conditions
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Tensile Strength (Metric)175.0
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Tensile Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Imperial) UOMmil
Elongation at Break80
Overall Length (Metric)45.7
Maximum Operating Temperature (Fahrenheit) UOMDegree
Primary LinerPolycoated Kraft
ApplicationExterior Seams & Joints; Interior Seams & Joints; Sealing HVAC & Duct Work
Adhesive TypeAcrylic
Tensile Strength (Imperial)100.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)23.0
Total Tape Thickness without Liner (Imperial)9.0
IndustriesCommercial, Construction, Electronics, General Industrial, Metalworking, Paper
Shelf Life UOMMonth
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.23
Maximum Operating Temperature (Celsius)120.0
Product ColorWhite
Overall Length (Metric) UOMm
Minimum Operating Temperature (Celsius)-70.0
Overall Length (Imperial) UOMyd
Maximum Operating Temperature (Fahrenheit)248.0
Minimum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)6.0
Backing MaterialMulti-layered Laminate
Minimum Operating Temperature (Fahrenheit)-94.0
Overall Length (Imperial)50.0
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.15
Overall Width (Imperial) UOMin
Overall Width (Metric)584.2
