3M Products & Supplies

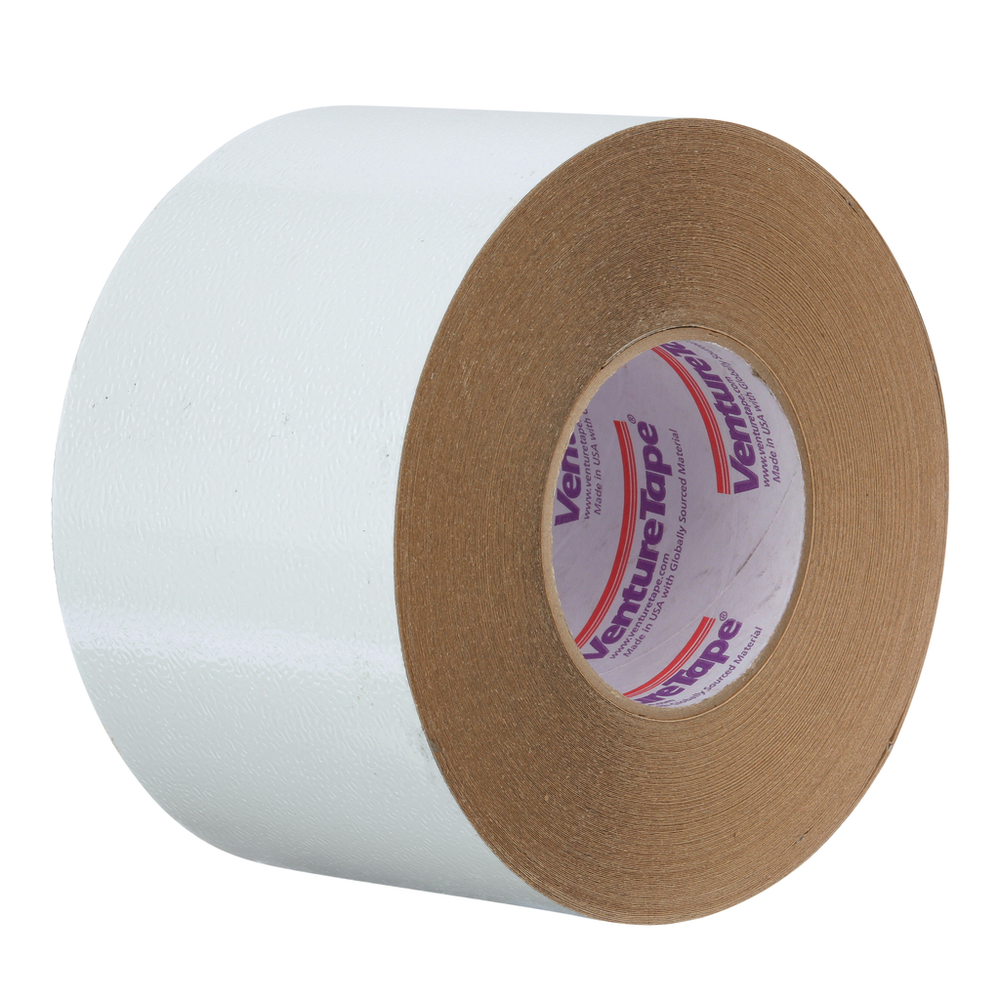

3M™ VentureClad™ Insulation Jacketing Tape 1577CW-WME, White, 99 mm x 13.7 m, 12 Rolls/Case - 7010379907

Sold As: 576-Pack
SKU: 7010379907
MPN: 7010379907
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00750351500109
3M ID: 70008909049
5 Digit UPC: 50010
$28,009.13 ($48.63 / Count)
Hurry up! Current stock:

Product Description

3M™ VentureClad™ Insulation Jacketing System 1577CW-WME is used for cladding and jacketing applications and creates a vapor barrier for HVAC, ductwork, vessels and pipes. This conformable tape is able to conform to a curved or irregular surface. It offers zero permeability, installs without special tools and is highly puncture and tear resistant - ideal for any indoor or outdoor task. This laminate tape can withstand temperatures as cold as -40 °F/-40 °C and as hot as 248 °F/120 °C. It’s suitable for use on materials like fiberglass, polystyrene and conformable aerogel. It protects insulation against mold, UV, weather, oil and grease, chemicals, impact and mechanical abuse, corrosion under insulation (CUI). This tape qualifies for compliance credit for LEED® v4 and is UL723 classified. 3M™ VentureClad™ Insulation Jacketing System 1577CW-WME provides a reliable barrier and protection during jacketing and cladding operations.

Features

  • Zero permeability provides an absolute vapor barrier for sealing applications
  • High puncture and tear resistance ensure longevity and durability in a variety of applications and environmental conditions
  • Cold weather acrylic adhesive applies easily at temperatures as cold as -10°F/-23°C
  • 10-year 3M warranty when applied per 3M installation guidelines
  • Qualifies for compliance credit for LEED®
  • Flexible backing conforms to irregular and curved surfaces
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-70.0
IndustriesCommercial, Construction, Electronics, General Industrial, Metalworking, Paper
Maximum Operating Temperature (Fahrenheit)248.0
Total Tape Thickness without Liner (Metric)0.23
Overall Length (Metric)13.7
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMm
Primary LinerPolycoated Kraft
Overall Width (Imperial)3.89
Minimum Operating Temperature (Fahrenheit) UOMDegree
ApplicationExterior Seams & Joints; Interior Seams & Joints; Sealing HVAC & Duct Work
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Tensile Strength (Metric)175.0
Overall Width (Metric)99.0
Adhesive TypeAcrylic
Total Tape Thickness without Liner (Imperial)9.0
Tensile Strength (Imperial) UOMlb/in
Tensile Strength (Imperial)100.0
Tensile Strength (Metric) UOMN/100mm
Overall Length (Imperial)14.98
Overall Length (Imperial) UOMyd
Shelf Life UOMMonth
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-94.0
Elongation at Break80
Maximum Operating Temperature (Celsius)120.0
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Imperial)6.0
Product ColorWhite
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.15
Backing MaterialMulti-layered Laminate
