3M Products & Supplies

3M™ XYZ-Axis Electrically Conductive Tape 9712 , 1 in x 3 yd - 7100305216

SKU: 7100305216
MPN: 7100305216
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060473042
3M ID: 80001600909
$12.93 each
Hurry up! Current stock:

Product Description

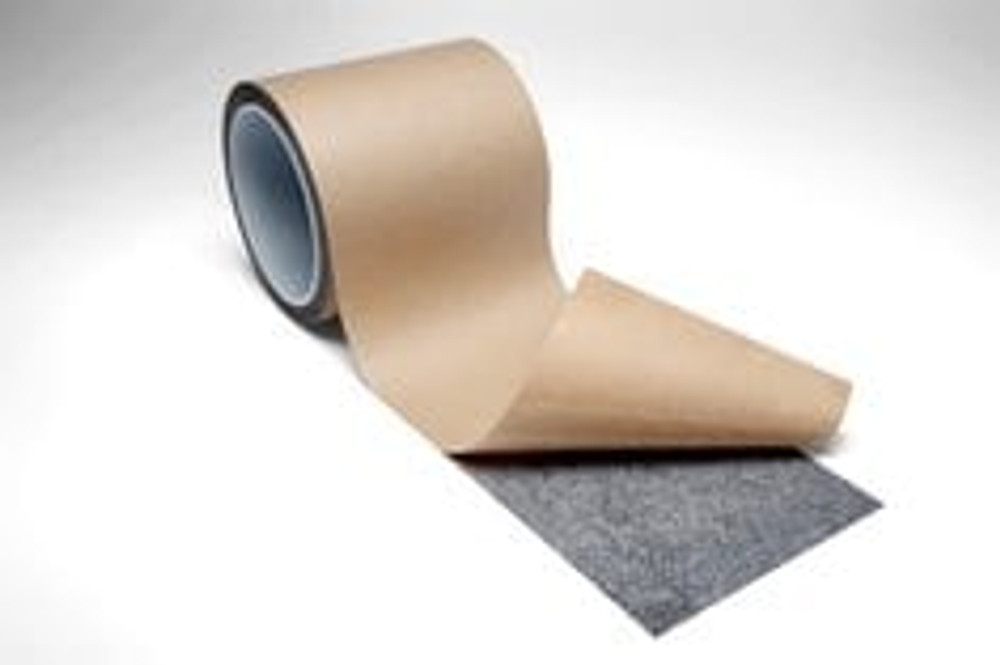

3M™ Electrically Conductive Adhesive Transfer Tape 9712 is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. This double-sided tape has a conductive carbon fiber scrim carrier. It offers a good balance of adhesion and conductivity, which is optimal for larger contact areas where high electrical conductivity is not required. This tape can be die cut and provides excellent workability, easy handling and has nonmetallic product construction for specialty applications. It provides robust protection against EMI in a range of market segments, including consumer electronics, automotive, medical equipment, communications infrastructure, and aerospace and defense electronics.

Features

  • Uses nonwoven carbon fiber scrim (usually leads to higher surface contact resistance than 3M™ XYZ-Axis Electrically Conductive Tape 9713)
  • Excellent die-cutting and converting capabilities
  • Thicker adhesive than 3M™ XYZ-Axis Electrically Conductive Tape 9713
  • Good contact with both hard and soft surfaces
  • Isotropic XYZ-axis electrical conductivity
  • Nonmagnetic
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginUnited States
Overall Width (Metric)25.4
Total Tape Thickness without Liner (Metric) UOMmm
Adhesive TypeAcrylic
Liner MaterialPET
Product UsageBond Line Gaps; Chassis; EMI Gaskets; EMI Shields; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)5.0
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Total Tape Thickness without Liner (Metric)0.127
Backing (Carrier) MaterialNon-woven
Overall Length (Metric) UOMm
Adhesion Strength (Imperial)1500.0
Overall Length (Metric)2.743
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Total Tape Thickness without Liner (Imperial) UOMmil
Electrical ResistanceZ-axis 13 Ω, XY-axis 50-70 Ω
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
Overall Length (Imperial) UOMyd
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting
Overall Length (Imperial)3.0
Overall Width (Imperial)1.0
Overall Width (Metric) UOMmm
Product ColorGray
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
