3M Products & Supplies

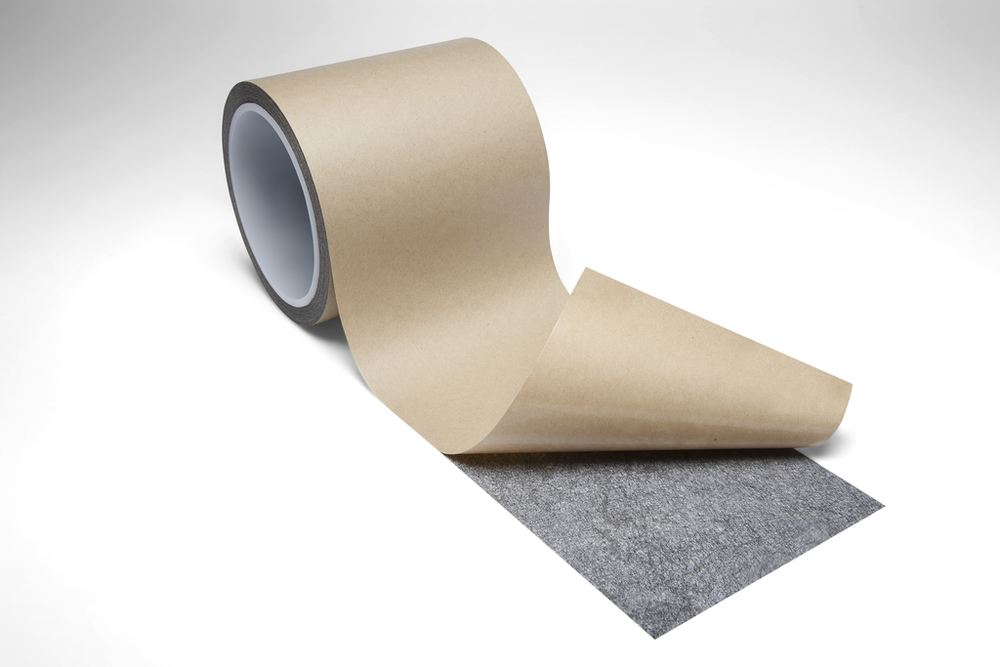

3M™ XYZ-Axis Electrically Conductive Tape 9712 , 1 in x 36 yds, 9/Case, Bulk - 7000123914

Sold As: 9-Pack
SKU: 7000123914
MPN: 7000123914
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200461835
3M ID: 70006290624
5 Digit UPC: 46183
$663.61 ($73.73 / Count)
Hurry up! Current stock:

Product Description

3M™ Electrically Conductive Adhesive Transfer Tape 9712 is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. This double-sided tape has a conductive carbon fiber scrim carrier. It offers a good balance of adhesion and conductivity, which is optimal for larger contact areas where high electrical conductivity is not required. This tape can be die cut and provides excellent workability, easy handling and has nonmetallic product construction for specialty applications. It provides robust protection against EMI in a range of market segments, including consumer electronics, automotive, medical equipment, communications infrastructure, and aerospace and defense electronics.

Features

  • Uses nonwoven carbon fiber scrim (usually leads to higher surface contact resistance than 3M™ XYZ-Axis Electrically Conductive Tape 9713)
  • Nonmagnetic
  • Thicker adhesive than 3M™ XYZ-Axis Electrically Conductive Tape 9713
  • Excellent die-cutting and converting capabilities
  • Good contact with both hard and soft surfaces
  • Isotropic XYZ-axis electrical conductivity
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginUnited States
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
Total Tape Thickness without Liner (Metric)0.127
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Product UsageBond Line Gaps; Chassis; EMI Gaskets; EMI Shields; Flexible Printed Circuits; Printed Circuit Boards; Sensors
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting
Electrical ResistanceZ-axis 13 Ω, XY-axis 50-70 Ω
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
Overall Length (Imperial) UOMyd
Overall Length (Metric)32.918
Overall Width (Metric)25.4
Adhesion Strength (Imperial)1500.0
Overall Width (Imperial) UOMin
Overall Length (Imperial)36.0
Overall Length (Metric) UOMm
Adhesive TypeAcrylic
Liner MaterialPET
Backing (Carrier) MaterialNon-woven
Total Tape Thickness without Liner (Imperial)5.0
Product ColorGray
Overall Width (Imperial)1.0
