3M™ XYZ-Axis Electrically Conductive Tape 9712 , 1/2 in x 36 yds, 18/Case, Bulk - 7010374026

Sold As: 18-Pack
SKU: 7010374026
MPN: 7010374026
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200461828
3M ID: 70006290616
5 Digit UPC: 46182
$707.00 ($39.28 / Count)
Hurry up! Current stock:

Product Description

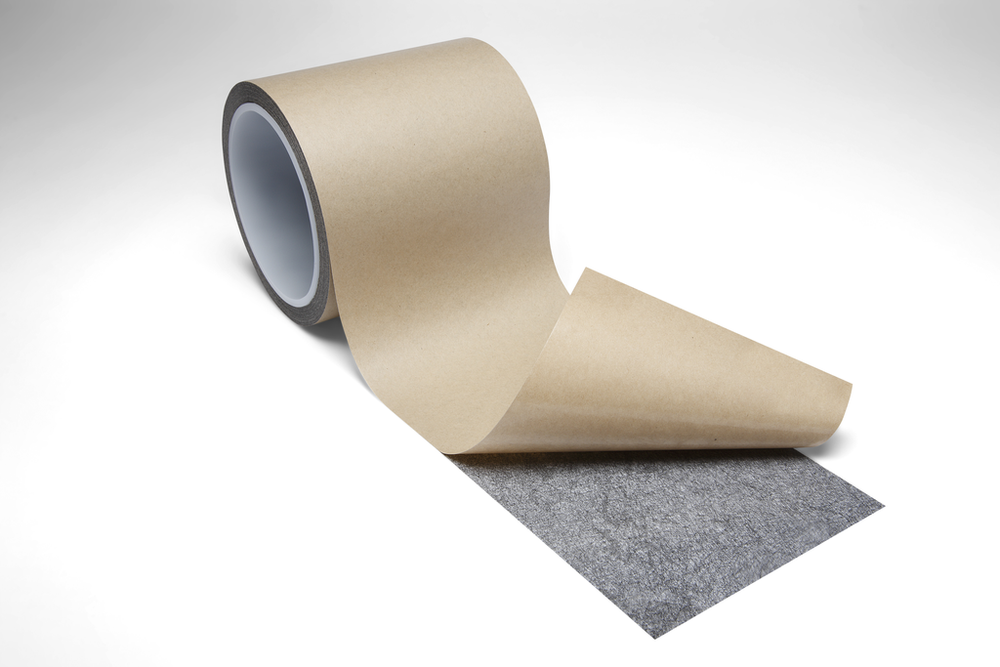

3M™ Electrically Conductive Adhesive Transfer Tape 9712 is an XYZ-axis electrically conductive pressure sensitive adhesive (CPSA) tape that helps enable devices to meet electromagnetic compatibility requirements. This double-sided tape has a conductive carbon fiber scrim carrier. It offers a good balance of adhesion and conductivity, which is optimal for larger contact areas where high electrical conductivity is not required. This tape can be die cut and provides excellent workability, easy handling and has nonmetallic product construction for specialty applications. It provides robust protection against EMI in a range of market segments, including consumer electronics, automotive, medical equipment, communications infrastructure, and aerospace and defense electronics.

Features

  • Good contact with both hard and soft surfaces
  • Isotropic XYZ-axis electrical conductivity
  • Nonmagnetic
  • Excellent die-cutting and converting capabilities
  • Uses nonwoven carbon fiber scrim (usually leads to higher surface contact resistance than 3M™ XYZ-Axis Electrically Conductive Tape 9713)
  • Thicker adhesive than 3M™ XYZ-Axis Electrically Conductive Tape 9713
Spec Sheet



Downloads

Specifications

Shelf Life24.0 Month
Country of OriginUnited States
Adhesive TypeAcrylic
Total Tape Thickness without Liner (Imperial)5.0
Liner MaterialPET
Maximum Operating Temperature (Fahrenheit)250.0 Degree Fahrenheit
Overall Width (Metric)12.7
Total Tape Thickness without Liner (Metric)0.127
Overall Width (Imperial)0.5
Backing (Carrier) MaterialNon-woven
Product UsageBond Line Gaps; Chassis; EMI Gaskets; EMI Shields; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Minimum Operating Temperature (Fahrenheit)-40.0 Degree Fahrenheit
Overall Length (Metric)32.918
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMm
ApplicationAttaching; Electrostatic Discharge (ESD); Grounding; Interconnecting
Maximum Operating Temperature (Celsius)121.0 Degree Celsius
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial) UOMmil
Electrical ResistanceZ-axis 13 Ω, XY-axis 50-70 Ω
Adhesion Strength (Imperial)1500.0
Overall Length (Imperial)36.0
Product ColorGray
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Celsius)-40.0 Degree Celsius
