3M Products & Supplies

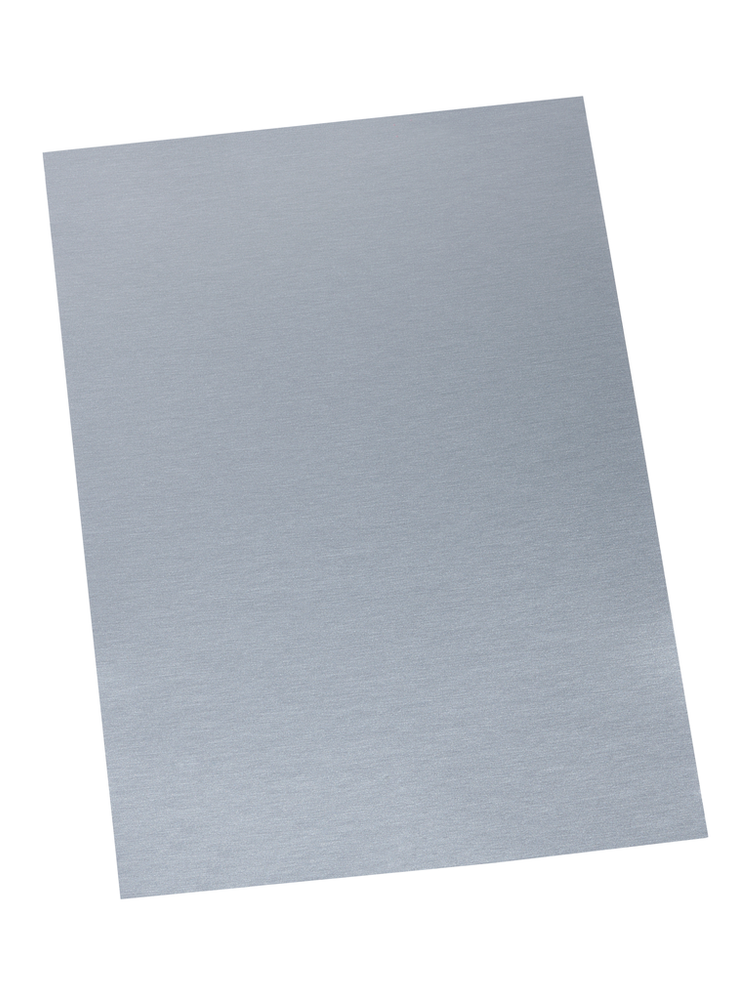

3M™ EMI Absorber AB6005HF, 300MM X 100M, 1 Roll/Case - 7100088189

SKU: 7100088189
MPN: 7100088189
Made to Order: For a lead time estimate, please send your request to [email protected]
3M ID: WX300909909
$5,639.43 each
Hurry up! Current stock:

Product Description

3M™ EMI Shielding Absorber AB6000HF/SHF Series is a hybrid shielding magnetic absorber consisting of a metal EMI shielding layer and absorbing layer with an insulation layer in between. The 3M AB6000HF/SHF provides good EMI absorbing and high-frequency EMI shielding for a lower signal-to-noise ratio (SNR). An acrylic pressure-sensitive adhesive and a removable release liner make applying the material easy and efficient. Available in sheets and rolls, these EMI absorbers are excellent for complex EMI applications requiring noise suppression, and shielding up to 18 GHz.

Features

  • Aluminum layer provides excellent shielding effectiveness up to 18 GHz
  • Broad temperature performance -30C - 105C
  • Excellent for EMI shielding and insulation in a range of applications
  • Removable liner makes material easy to handle
  • PET absorber reduces EMI and ESD in enclosed cavities
  • Acrylic non-conductive pressure sensitive adhesive makes for fast, simple application
Spec Sheet



Downloads

Specifications

Overall Length (Imperial)109.361
Adhesive Thickness (Imperial)0.0
Number of Adhesive Sides1
Overall Length (Imperial) UOMyd
ApplicationEMI Shielding
Overall Width (Metric) UOMmm
Overall Width (Imperial) UOMin
Country of OriginSouth Korea
Overall Width (Imperial)11.811
Adhesive Thickness (Metric)0.0
Frequency Range10 MHz - 18 GHz
Overall Thickness (Metric)0.105
Total Thickness0.105 mm
Product UsageCables; Camera Modules; Display Chip on Flex; EMI Shields; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Overall Length (Metric)100.0
Overall Length (Metric) UOMm
Overall Thickness (Imperial) UOMmil
Overall Width (Metric)300.0
AdhesivePressure-sensitive Acrylic
Total Tape Thickness without Liner (Imperial)0.0
Overall Thickness (Imperial)4.13
Overall Thickness (Metric) UOMmm
Total Thickness (Metric)0.105
