Fein Power Tools

Mag Drill unit up to 2 [50] in[mm]|KBM 50 U - 72704061090

SKU: 72704061090
MPN: 72704061090
Stock Item: Stock items typically ship within 2-3 business days
UPC: 4014586873022
$3,301.71 each
Hurry up! Current stock:

Product Description

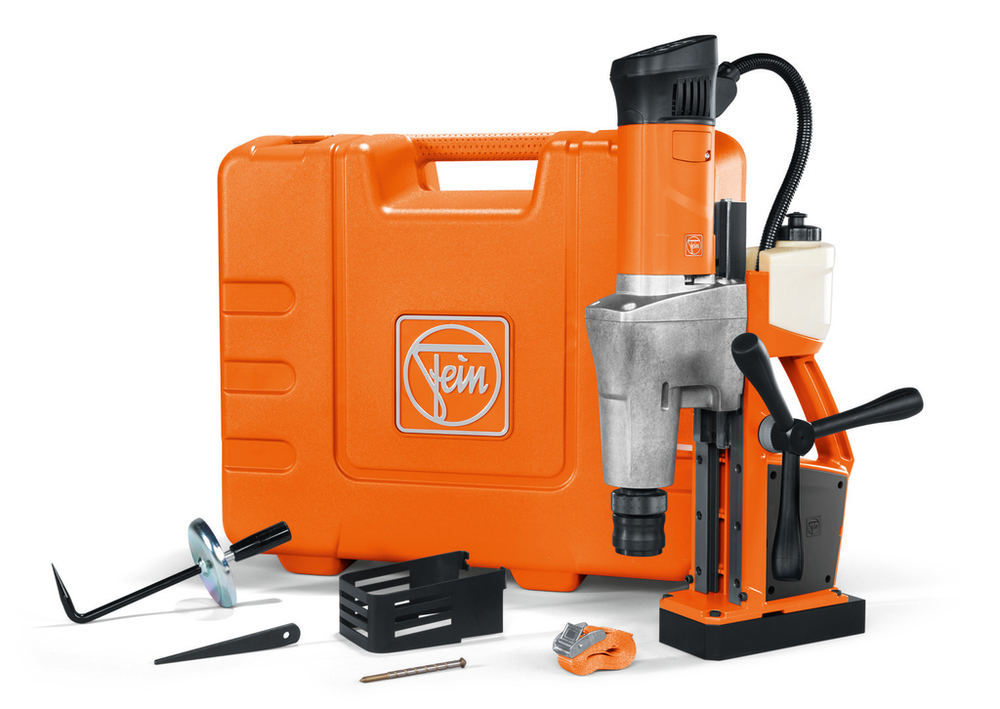

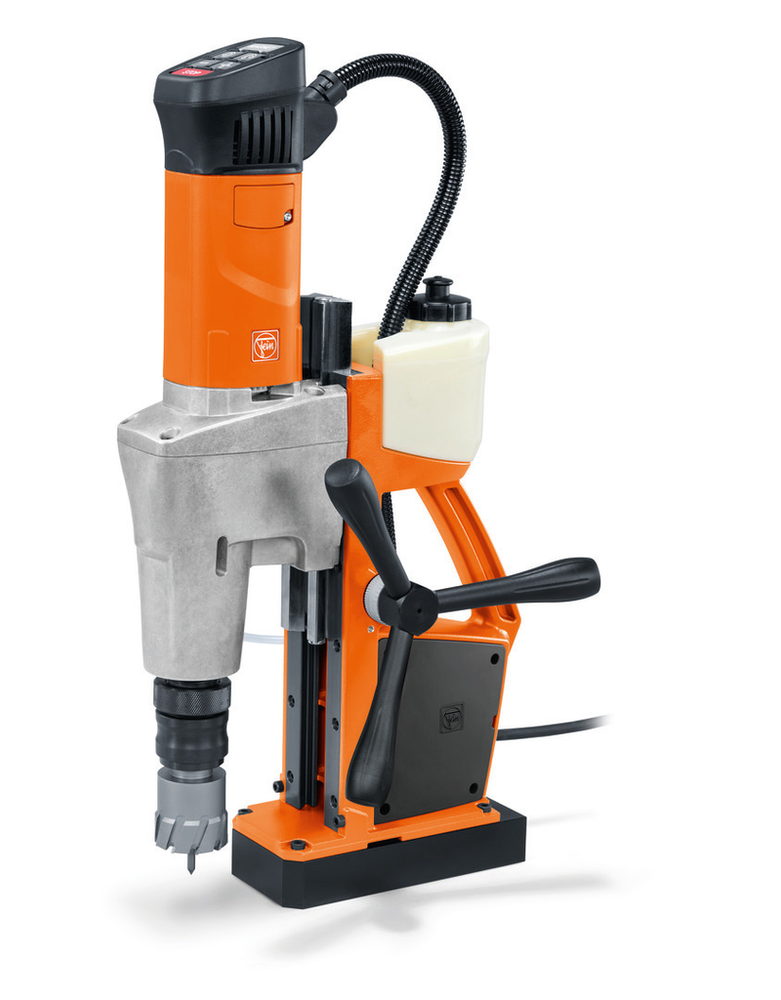

Mag Drill unit up to 2 [50] in[mm]|KBM 50 U|Lightweight, long-stroke 2-speed universal magnetic core drill with forward / reverse rotation, MT3 tool mount and maximum functionality for flexible operation in the workshop and on the construction site.

Features

  • Simple and error-proof control concept in the operator's field of view.
  • Extremely wear-resistant tool concept with swivel-mounted motor cable protection hose for tough conditions in industry and skilled trades.
  • Convenient magnetic holding force display.
  • Universal use, such as core drilling, twist drilling, tapping, countersinking, and reaming is possible due to forward / reverse rotation, electronic speed setting and a 12-3/8 in [315 mm] stroke.
  • Perfect power-to-weight ratio, thanks to compact, weight-optimized design and FEIN 1,200 W high-performance motor with tacho electronics for high speed stability for reliable and efficient operation.
  • MT3 tool mounting.
  • High magnetic holding force.

Specifications

Twist drill max. dia. (mm)23
Twist drill max. dia. (in)7/8
Tapping5/8 in [M 16]
Cable with plug (m)4
Weight (kg)13.90
Magnetic holding force (N)12,500
Cable with plug (ft)13.1
Power output610 W
Max. countersinking dia. (mm)50
Stroke (in)5-11/16
Max. countersinking dia. (in)2
Carbide cutter max. dia. (mm)50
HSS cutter max. dia. (in)1-5/8
Cutter holder3/4 in straight shank
Load speed130 - 260 rpm
Cutter max. drilling depth2 [50] (3 [75] )* in[mm]
Power consumption1,200 W
Cutter changetool-free
Total stroke range (mm)315
Tool mountMT 3
Carbide cutter max. dia. (in)2
Magnetic holding force (lbs)2810
Weight (lbs)30.64
Total stroke range (in)12-3/8
Magnetic base dimensions7-11/16 [195] x 3-9/16 [90] in[mm]
Reaming max. dia. (in)7/8
Stroke (mm)145
Reaming max. dia. (mm)23
HSS cutter max. dia. (mm)40
