Fein Power Tools

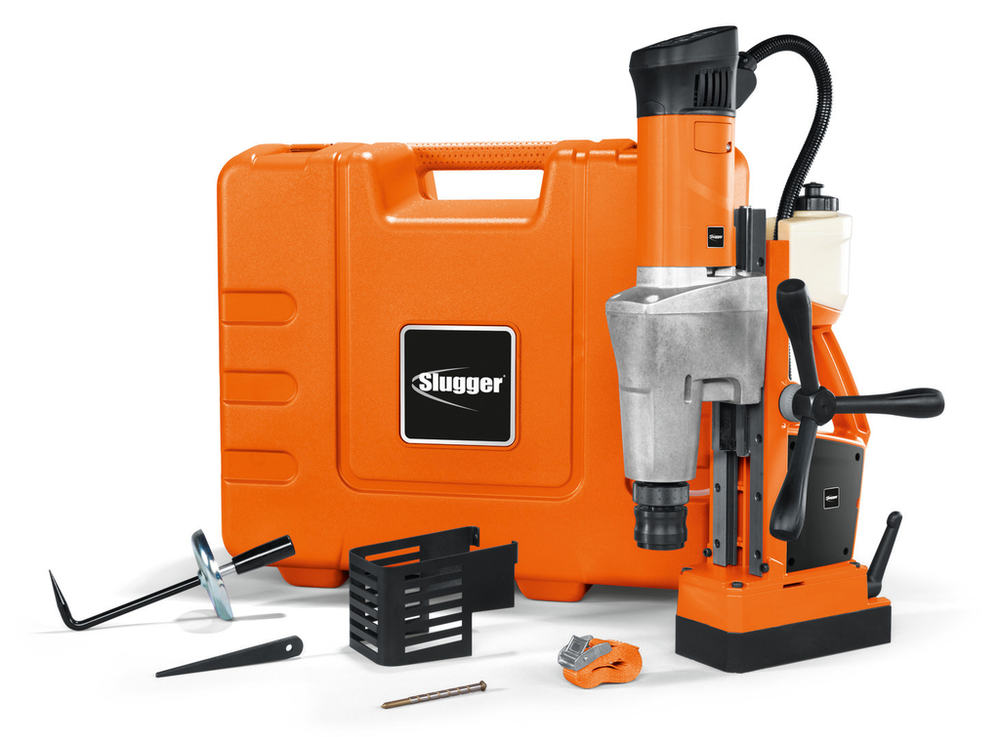

Mag Drill unit up to 2-1/2 [65] in[mm]|JCM 256 U - 72704761120

SKU: 72704761120
MPN: 72704761120
Stock Item: Stock items typically ship within 2-3 business days
UPC: 4014586872988
$2,626.45
Hurry up! Current stock:

Product Description

Mag Drill unit up to 2-1/2 [65] in[mm]|JCM 256 U|High-performance with 2-speed gearbox and outstanding functionality for universal and efficient use in the workshop.

Features

  • Electronic speed control.
  • Stable speed, even in the toughest applications.
  • Double drill motor guides enable use of the longest annular cutters.
  • MT3 interface.
  • High magnetic holding force.
  • Fine drill spindle adjustment for convenient machine alignment.
  • Reversible

Specifications

Drill stand angular adjustment7°
Cutter max. drilling depth (in)2
Twist drill max. dia. (mm)25
Load speed120 - 240 rpm
Max. countersinking dia. (mm)50
Cutter holder3/4 in straight shank
Reaming max. dia. (in)1
Max. countersinking dia. (in)2
Cutter changetool-free
Total stroke range (in)12-3/8
Cable with plug (ft)13.1
Weight (lbs)35.49
HSS cutter max. dia. (mm)45
Power consumption1,300 W
Stroke (in)5-11/16
Stroke (mm)145
Cable with plug (m)4
Power output730 W
Total stroke range (mm)315
HSS cutter max. dia. (in)1-3/4
Carbide cutter max. dia. (mm)65
Magnetic holding force (N)14,000
Drill stand adjustment range (in)1/4
Magnetic holding force (lbs)3147
Cutter max. drilling depth (mm)50
Tapping3/4 in [M 20]
Tool mountMT 3
Magnetic base dimensions8-1/16 [205] x 3-3/4 [95] in[mm]
Carbide cutter max. dia. (in)2-1/2
Reaming max. dia. (mm)25
Twist drill max. dia. (in)1
Drill stand adjustment range (mm)6
Weight (kg)16.10
