Fein Power Tools

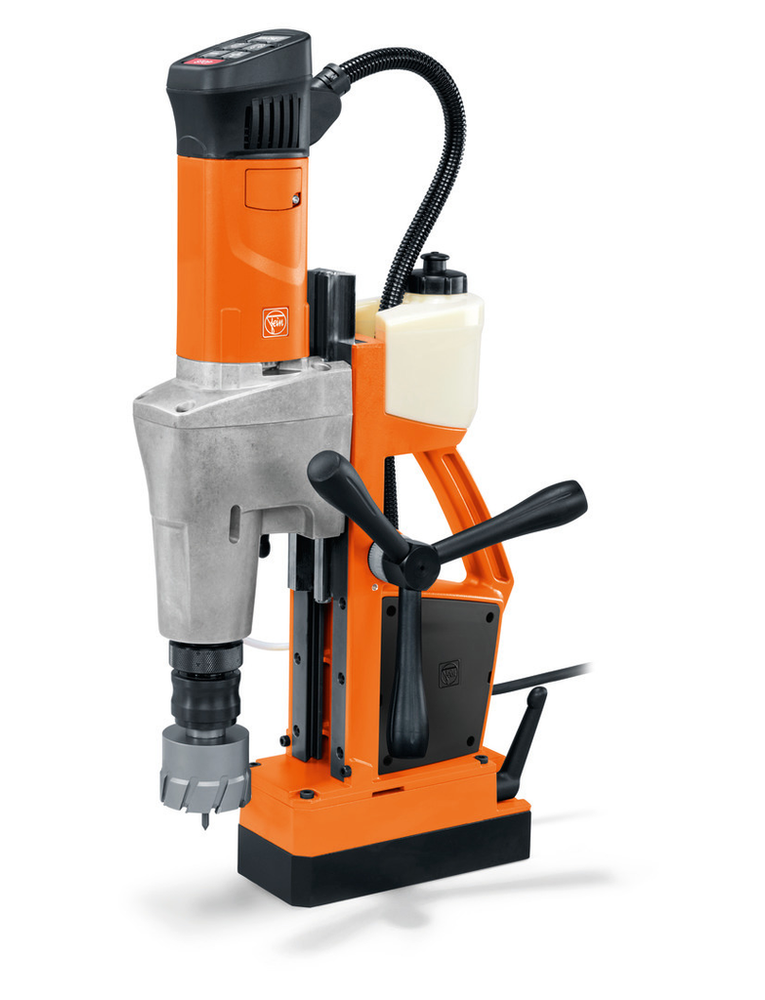

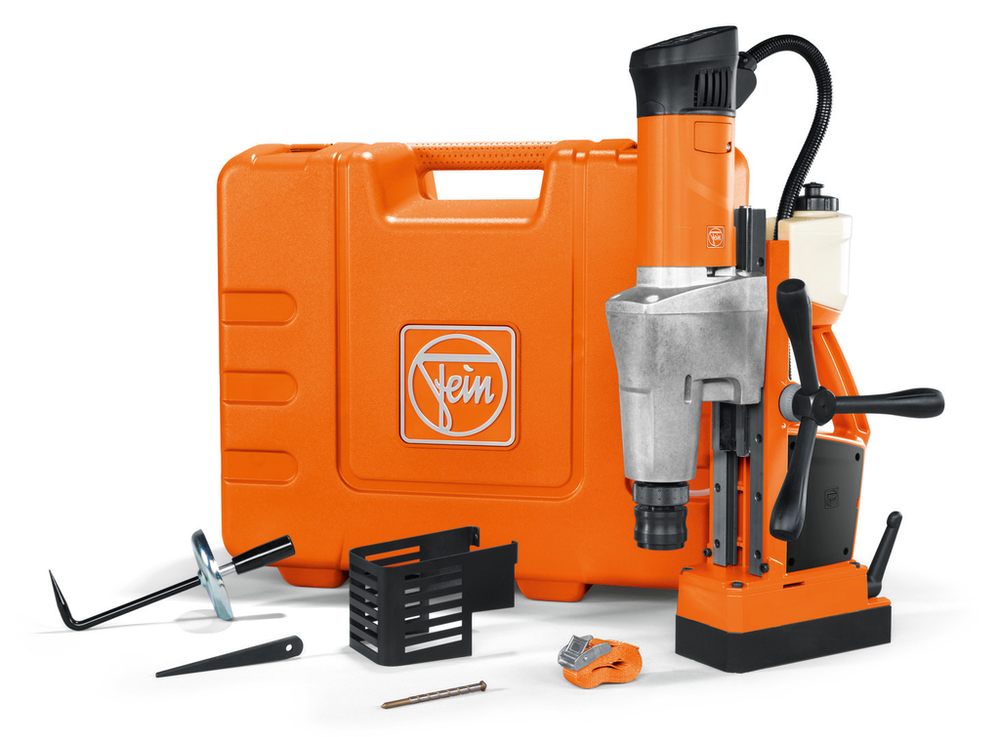

Mag Drill unit up to 2-1/2 [65] in[mm]|KBM 65 U - 72704361090

SKU: 72704361090
MPN: 72704361090
Stock Item: Stock items typically ship within 2-3 business days
UPC: 4014586872933
$4,182.35 each
Hurry up! Current stock:

Product Description

Mag Drill unit up to 2-1/2 [65] in[mm]|KBM 65 U|Powerful, long-stroke, 2-speed universal magnetic core drill with forward / reverse rotation, MT3 tool mount, fine adjustment and maximum functionality for flexible operation in the workshop.

Features

  • Convenient magnetic holding force display.
  • Perfect power-to-weight ratio, thanks to compact, weight-optimized design and FEIN 1,300 W high-performance motor with tacho electronics for high speed stability for reliable and efficient operation.
  • MT3 tool mounting.
  • Simple and error-proof control concept in the operator's field of view.
  • Fine drill spindle adjustment for convenient machine alignment.
  • Extremely wear-resistant tool concept with swivel-mounted motor cable protection hose for tough conditions in industry and skilled trades.
  • Universal use, such as core drilling, twist drilling, tapping, countersinking, and reaming is possible due to forward / reverse rotation, electronic speed setting and a 12-3/8 in [315 mm] stroke.

Specifications

Reaming max. dia. (mm)25
Stroke (mm)145
Load speed260 - 520 rpm
HSS cutter max. dia. (in)1-3/4
Twist drill max. dia.1 [25] / in[mm]
Cutter max. drilling depth2 [50] (3 [75] )* in[mm]
Reaming max. dia. (in)1
HSS cutter max. dia. (mm)45
Total stroke range (mm)315
Max. countersinking dia. (in)2
Drill stand angular adjustment7°
Cable with plug (m)4
Magnetic holding force (lbs)3147
Max. countersinking dia. (mm)50
Drill stand adjustment range (in)1/4
Cutter holder3/4 in straight shank
Tool mountMT 3
Power consumption1,300 W
Cable with plug (ft)13.1
Weight (kg)16.10
Power output730 W
Cutter changetool-free
Stroke (in)5-11/16
Total stroke range (in)12-3/8
Magnetic base dimensions8-1/16 [205] x 3-3/4 [95] in[mm]
Magnetic holding force (N)14,000
Carbide cutter max. dia. (in)2-1/2
Weight (lbs)35.49
Carbide cutter max. dia. (mm)65
Drill stand adjustment range (mm)6
Tapping3/4 in [M 20]
